Huawei SUN2000-5KTL-L1 User Manual

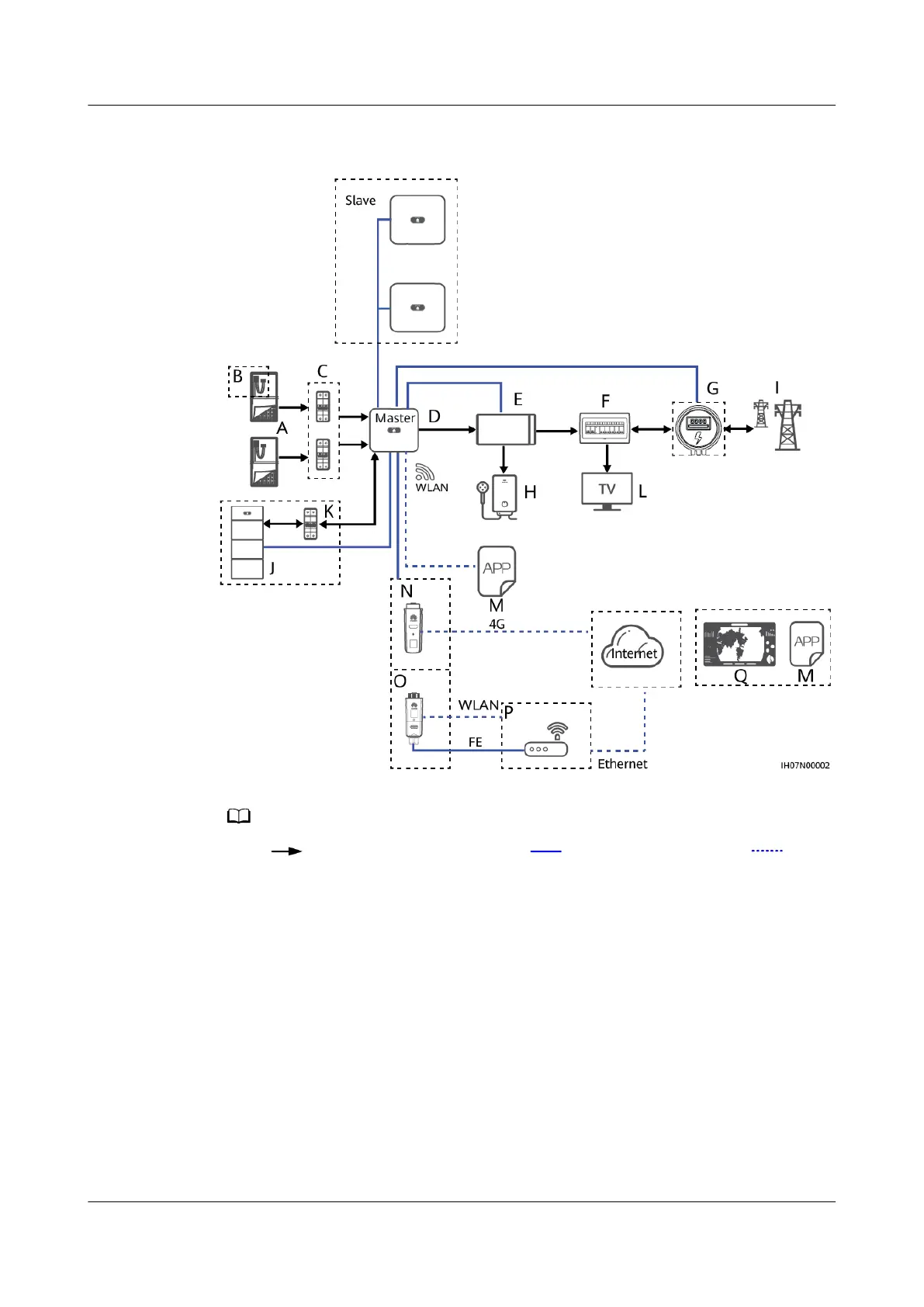

Figure 2-3 SUN2000 cascading scenario (dashed boxes indicate optional
conguration)
NO TE
● indicates the power ow direction, indicates the signal line, and
indicates the wireless communication.
● In the SUN2000 cascading scenario, the master and slave solar inverters are both
SUN2000-(2KTL-6KTL)-L1, and a maximum of three SUN2000s can be cascaded.
● In the SUN2000 cascading scenario, only one smart power sensor (G in the
gure) can
be connected to the master inverter.
● In the SUN2000 cascading scenario, the SUN2000s connected to the power grid must
meet the local power grid requirements.
(A) PV string
(B) Smart PV optimizer (C) DC switch
(D) SUN2000 (E) Backup (F) Residential PDU
(G) Smart Power Sensor (H) Important Load (I) Power grid
(J) Battery (K) Battery switch (L) Household load
SUN2000-(2KTL-6KTL)-L1
User Manual 2 Product Introduction
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 15

Huawei SUN2000-5KTL-L1 Specifications

General

Model	SUN2000-5KTL-L1
Max. Efficiency	98.4%
Rated AC Output Power	5000 W
Operating Temperature Range	-25°C to +60°C
Topology	Transformerless
Max. apparent AC power	5500 VA
Max. input voltage	600 V
Number of MPPT trackers	2
Max. short-circuit current per MPPT	15 A
Protection degree	IP65
Max. Input Power	7500 W
Output Frequency	50 Hz / 60 Hz
Cooling Method	Natural Convection
Nominal AC voltage	230 V
AC voltage range	180 V - 280 V
Rated Output Voltage	230 V
