B
Connect
ing the Inverter on the App

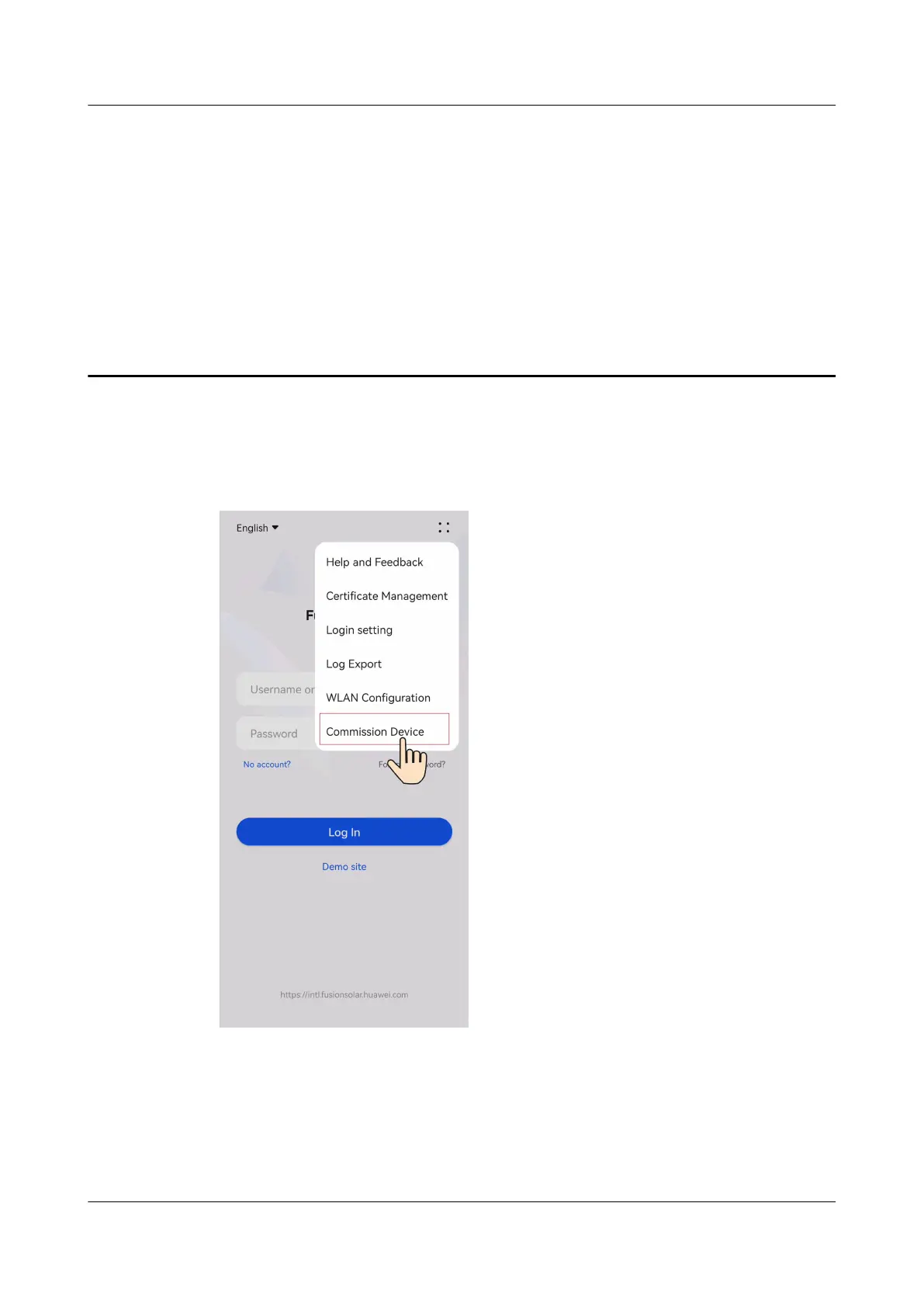

Step 1
Access the
Commission Device
screen.
Figure B-1
Method 1: bef
ore login (not connected to the Internet)
SUN2000-(8K, 10K)-LC0 Series
User Manual
B Connecting the Inverter on the App
Issue 01 (2023-09-15)
Copyright © Huawei Digital Power T
echnologies Co., L
td.
115
121
123
Table of Contents
About this Document
3
Table of Contents
5
1 Safety Information
8
Personal Safety
9
Electrical Safety
11
Environment Requirements
13
Mechanical Safety
15
2 Overview
20
Model Number Description
20
Networking
21
Appearance
25
Working Modes
26
Label Description
27
Rapid Shutdown
29
3 Storage Requirements
30
4 Installation
31
Installation Modes
31
Installation Requirements
31
Site Selection Requirements
31
Clearance Requirements
32
Angle Requirements
34
Tools
34
Checking before Installation
36
Moving the Inverter
37
Installing the Inverter on a Wall
37
Installing the Inverter on a Support
40
5 Electrical Connections
44
Precautions
44
Preparing Cables
45
Connecting a PE Cable
49
Connecting an AC Output Power Cable
51
Connecting DC Input Power Cables
55
Optional) Connecting Battery Cables
59
Connecting Signal Cables
61
Connecting RS485 Communications Cables (Inverter Cascading)
64
Connecting RS485 Communications Cables (EMMA and Battery)
66
Connecting RS485 Communications Cables (Smartguard and Battery)
69
Connecting RS485 Communications Cables (Power Meter and Battery)
73
Connecting Rapid Shutdown Signal Cables
75
Optional) Installing the Smart Dongle and Anti-Theft Components
77
Optional) Installing an Antenna
79
6 Check before Power-On
81
7 Power-On and Commissioning
82
Powering on the Inverter
82
Creating a Plant
84
Downloading the Fusionsolar App
84
Installer Registration
85
Creating a Plant and an Owner Account
87
Setting Functions and Features through Device Commissioning
89
Setting Common Parameters
89
Optional) Setting the Physical Layout of the Smart PV Optimizers
90
Afci
91
DRM (Australia as 4777)
93
Viewing the Plant Creation Status
94
8 System Maintenance
96
Routine Maintenance
96
System Power-Off
98
Troubleshooting
98
Replacing an Inverter
110
Replacing a Fan
111
Locating Insulation Resistance Faults
111
9 Technical Specifications
115
A Grid Codes
120
B Connecting the Inverter on the App
125
C Connecting the EMMA on the App
129
D Baud Rate Negotiation
130
E Resetting Password
134
F Contact Information
135
G Digital Power Customer Service
137
H Preconfigured Certificate Disclaimer
138
