2.3 Appearance

Appearance and Ports

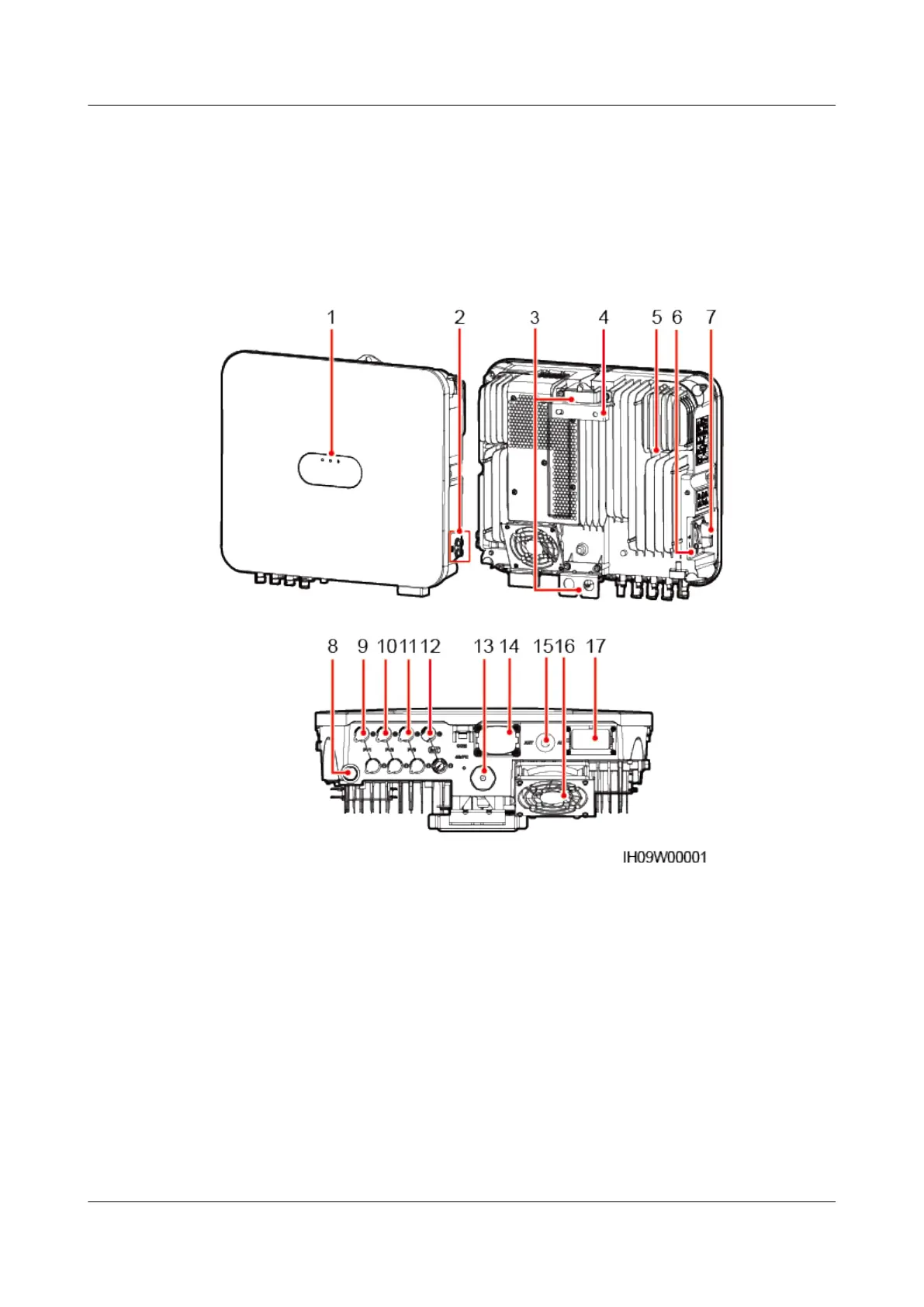

Figure 2-6 Appearance

(1) LED indicators (2) Ground screws

(3) Hanging kits (4) Mounting bracket

(5) Heat sink

(6) DC switch locking screw hole

[1]

(7) DC switch (DC SWITCH) (8) Ventilation valve

(9) DC input terminal (PV1+/PV1–) (10) DC input terminal (PV2+/PV2–)

(11) DC input terminal (PV3+/PV3–) (12) Battery terminal (BAT+/BAT–)

(13) Smart Dongle port (4G/FE) (14) Communications port (COM)

(15) Antenna port (ANT)

(16) Fan

[2]
