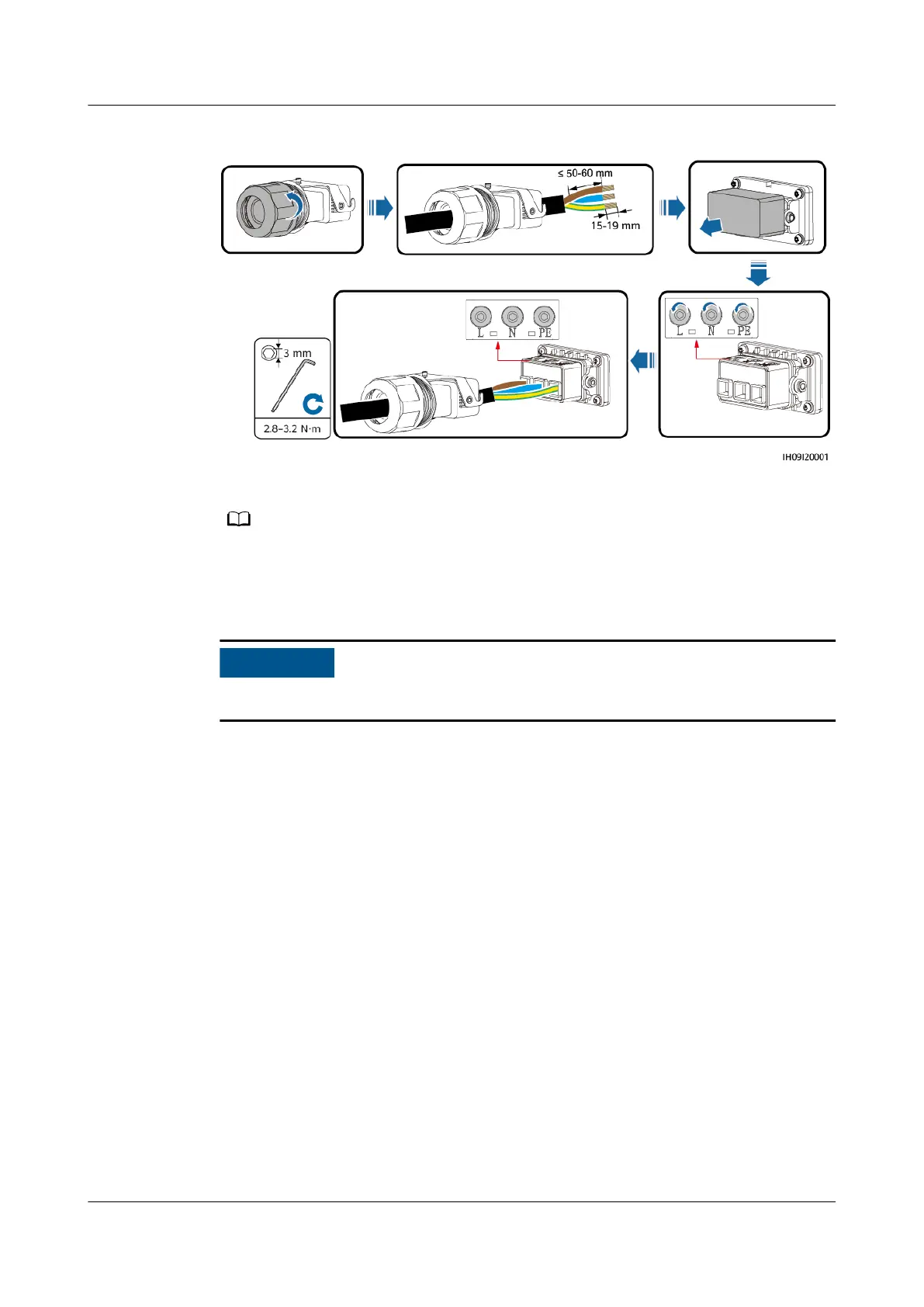

Figure 5-4 Installing the AC power cable
The cable colors shown in the gures are for reference only. Select an appropriate cable
according to the local standards.
Step 2 Connect the AC connector to the AC output port.
Ensure that the AC connector is connected securely.
SUN2000-(8K, 10K)-LC0 Series
User Manual 5 Electrical Connections
Issue 01 (2023-09-15) Copyright © Huawei Digital Power Technologies Co., Ltd. 46
