Huawei SUN2000-8KTL Quick Installation Guide

SUN2000 (8KTL-28KTL)
Quick Installation Guide
Issue 04 (2013-12-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9

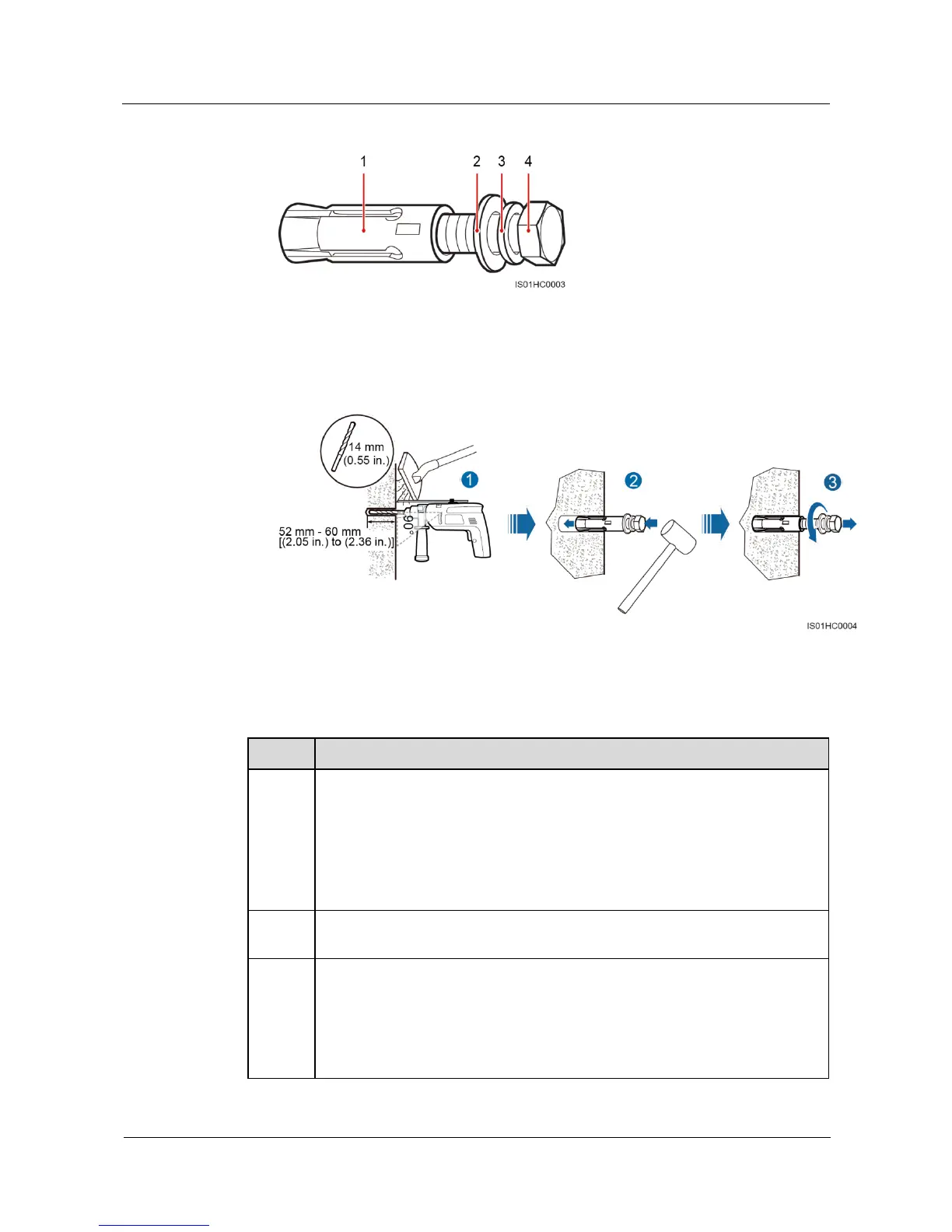

Figure 1-7 Expansion bolt composition
1. Expansion sleeve
2. Flat washer
3. Spring washer
4. M10x60 bolt
Figure 1-8 Drilling a hole and installing an expansion bolt
Table 1-1 describes the operations shown in Figure 1-8.
Table 1-1 Description
Step
Operation
1
Put a hammer drill with a Ф14 drill bit on a marked hole position
perpendicularly against the wall and drill holes with a depth of 52-60 mm.
NOTICE

To prevent dust inhalation or contact with eyes, wear safety goggles and an anti-dust
respirator when drilling holes.

Vacuum any dust in or around the holes by using a vacuum cleaner and measure the hole
distance. If the holes are inaccurately positioned, drill holes again.
2
Vertically insert an expansion bolt into a hole, and knock the expansion bolt
completely into the hole by using a rubber mallet.
3
Remove the M10x60 bolt, spring washer, and flat washer by rotating them
counterclockwise.
NOTICE
Level the front of the expansion sleeve with the concrete wall after removing the bolt,
spring washer, and flat washer. Otherwise, the rear panel will not be securely installed on
the concrete wall.

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
