Huawei SUN2000-8KTL User Manual

SUN2000 (8KTL-28KTL)
User Manual
7 Man-Machine Interaction
Issue 10 (2017-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
69

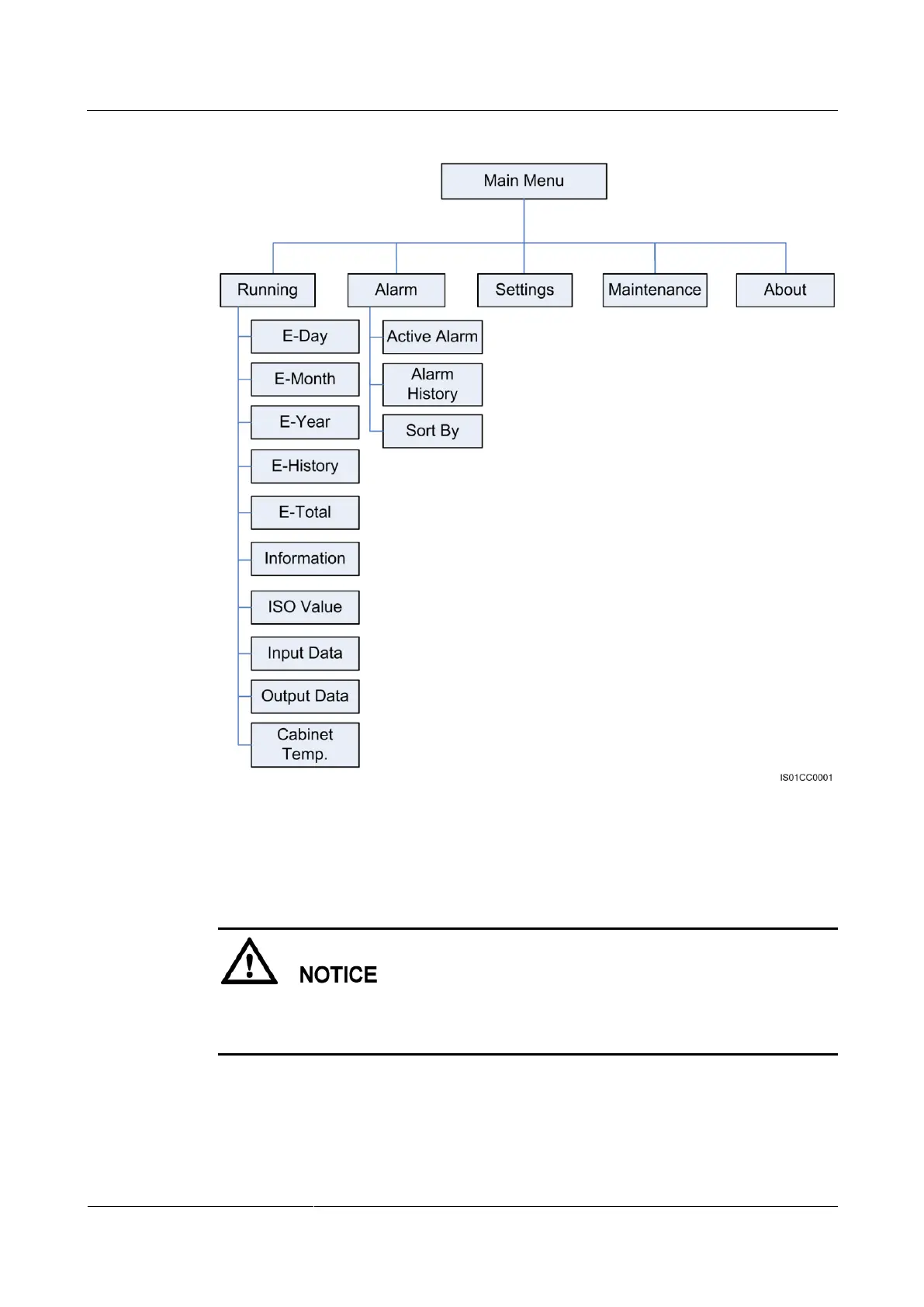

Figure 7-1 Hierarchy of the Main Menu
The parameters vary with user types. The three types of user are Common User, Advanced
User, and Special User. Figure 7-2 and Figure 7-3 show the hierarchies under the Settings
and Maintenance menus.
The initial password for Common User, Advanced User, and Special User is 000001. Use
the initial password to log in to the SUN2000 for the first time and change the password
immediately (see 7.2.7 Changing a User Password) to ensure account safety.

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
