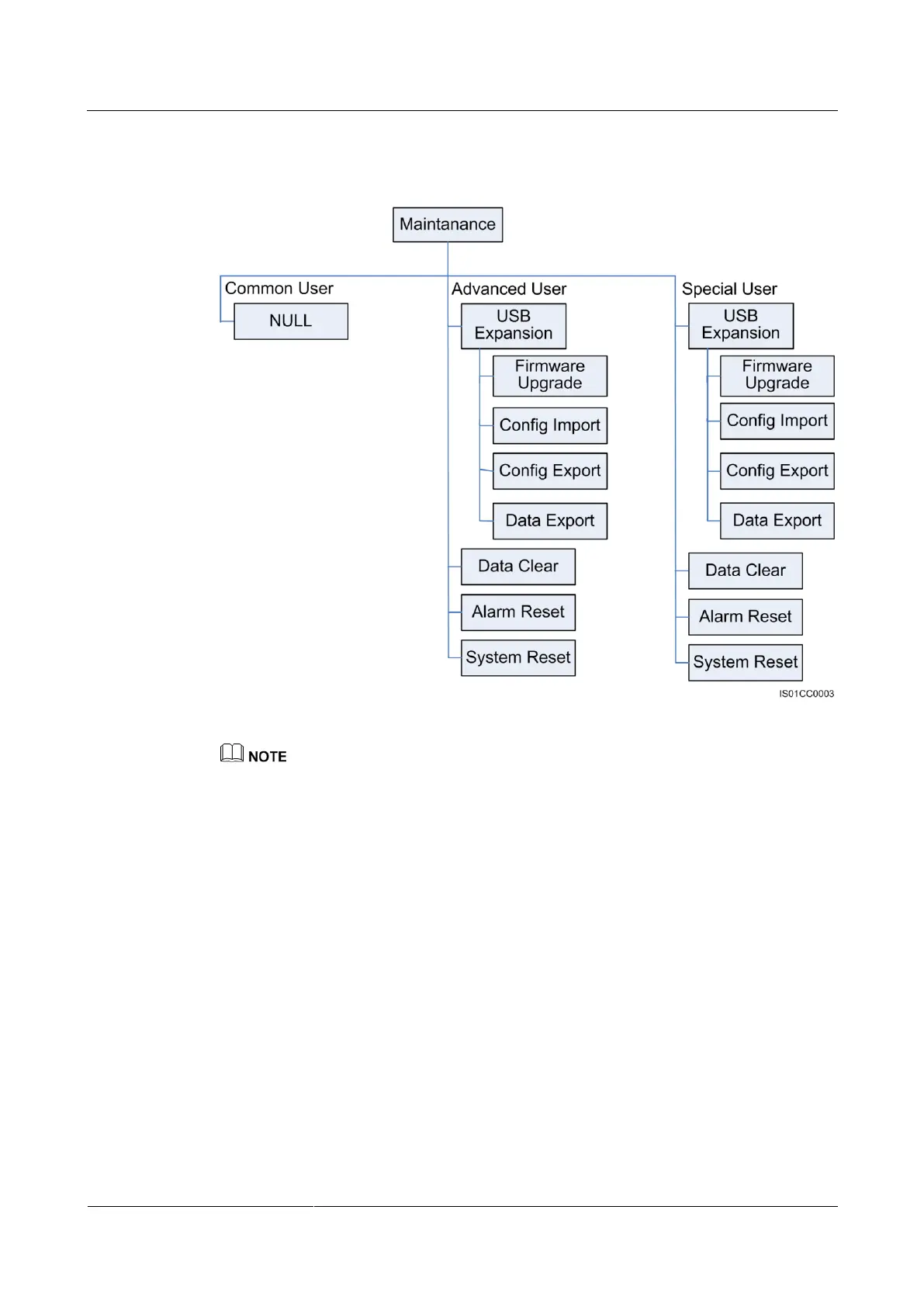

Figure 7-3 Hierarchy of the Maintenance menu
Due to permission restrictions, the submenus under Maintenance will not appear when a user logs in as
a Common User.
7.2 Monitoring Operations
This section describes how to perform monitoring operations, such as viewing system
operating information and setting user parameters, on the monitoring panel.
7.2.1 Viewing System Operating Information
The SUN2000 operating information can be viewed on the monitoring panel. The operating
information includes the daily, monthly, yearly, historical, and total energy yields, insulation
resistance, input data, output data, and internal temperature.
Procedure

The following table lists the procedure for viewing system operating information. The
parameter values in the figures are for reference only.

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
