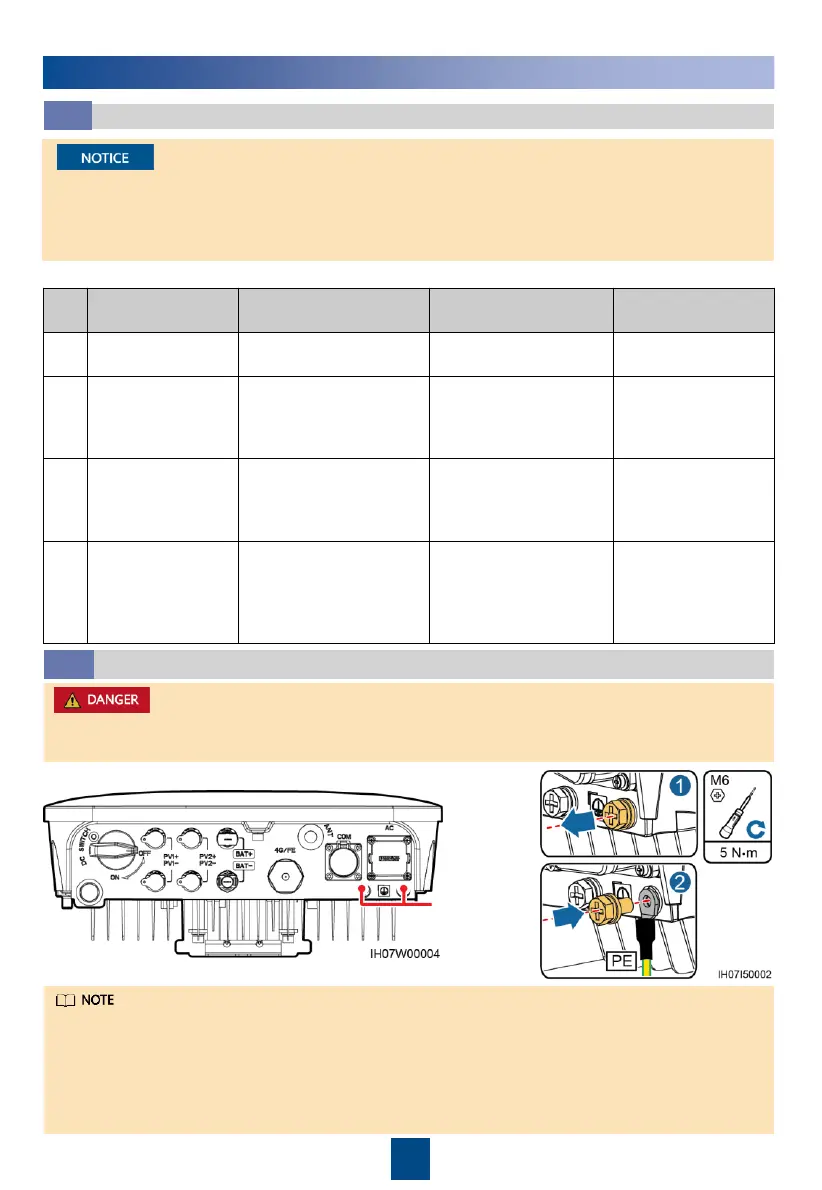

Preparing Cables
3.1
• Connect cables in accordance with the local installation laws and regulations.
• Before connecting cables, ensure that the DC switch of the solar inverter and all the switches
connected to it are set to OFF. Otherwise, the high voltage produced by the solar inverter may
cause electric shocks.
3
Connecting Cables
No.
Cable
Type
Conductor Cross
-
Sectional Area Range
Outer Diameter
1
Protective earthing
(PE) cable
Single
-core outdoor
copper cable
4
–10 mm
2
N/A
2
AC output power
cable
Two
-core (L and N) or
three
-core (L, N, and
PE) outdoor copper
cable
4
–6 mm
2
10
–21 mm
3
DC input power
cable and
(optional) battery
cable
Standard outdoor PV
cable in the industry
(recommended model:
PV1
-F)
4
–6 mm
2
4.5
–7.8 mm
4
(Optional) Signal
cable
Outdoor shielded twisted
pair cable
When cables are
crimped:
0.20–0.35
mm
2
When
cables are not
crimped:
0.20–1 mm
2

four-
hole rubber
plug: 4–8 mm

two-hole rubber
plug: 8–11 mm
Prepare cables based on site requirements.
Installing the PE Cable
3.2
Ground
point
Do not connect the neutral wire to the enclosure as a PE cable. Otherwise, electric shocks may
occur.
• The PE point at the AC output port is used only as a PE equipotential point, and cannot
substitute for the PE point on the enclosure.
• It is recommended that silica gel or paint be applied around the ground terminal after the PE
cable is connected.
• It is recommended that the right ground point be used for grounding. The other ground point is
reserved.

Huawei SUN2000 L1 Series Specifications

General

Max. Efficiency	98.6%
Number of MPP Trackers	2
Output Frequency	50 Hz / 60 Hz
Protection Class	IP65
Cooling	Natural Convection
Type	String Inverter
Output Voltage	230 V
Adjustable Power Factor Range	0.8 leading - 0.8 lagging
Total Harmonic Distortion (THD)	≤ 3%
DC Injection Current	<0.5% of rated output current
Operating Temperature Range	-25 °C ~ +60 °C
Relative Humidity (Operating)	0% - 100% (non-condensing)
Communication	RS485
