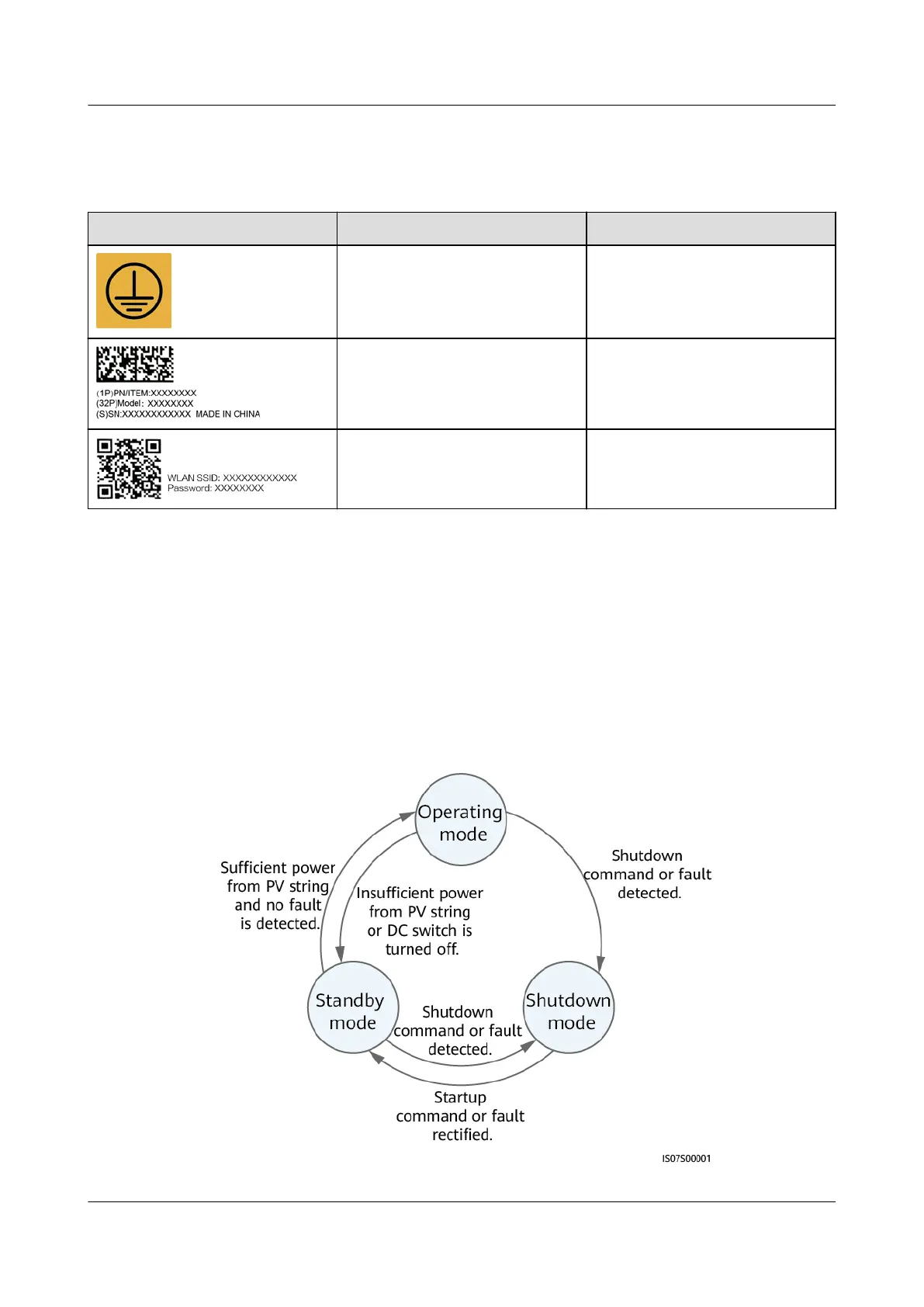

2.3 Label Description
Symbol Name Meaning
Grounding label Indicates the position for
connecting the protective
earthing (PE) cable.
Inverter serial number (SN)
label
Indicates the product SN.
QR code label for inverter Wi-
Fi connection
Scan the QR code to connect
to the SUN2000 inverter Wi-Fi.
2.4 Working Principles
2.4.1 Working Modes
The SUN2000 can work in Standby, Operating, or Shutdown mode.
Figure 2-5 Working modes
SUN2000-(12KTL-25KTL)-M5 Series
User Manual 2 Overview
Issue 03 (2023-02-15) Copyright © Huawei Digital Power Technologies Co., Ltd. 18

Huawei SUN2000 M5 Series Specifications

General

Max Efficiency	98.6%
Max Input Voltage	1100 V
MPPT Operating Voltage Range	200 V - 1000 V
Operating Temperature Range	-25°C to +60°C
Communication	RS485, 4G (optional)
