Figure 4-7 Installing an Inverter
Step 3 (Optional) Install the locking screw for the DC switch.

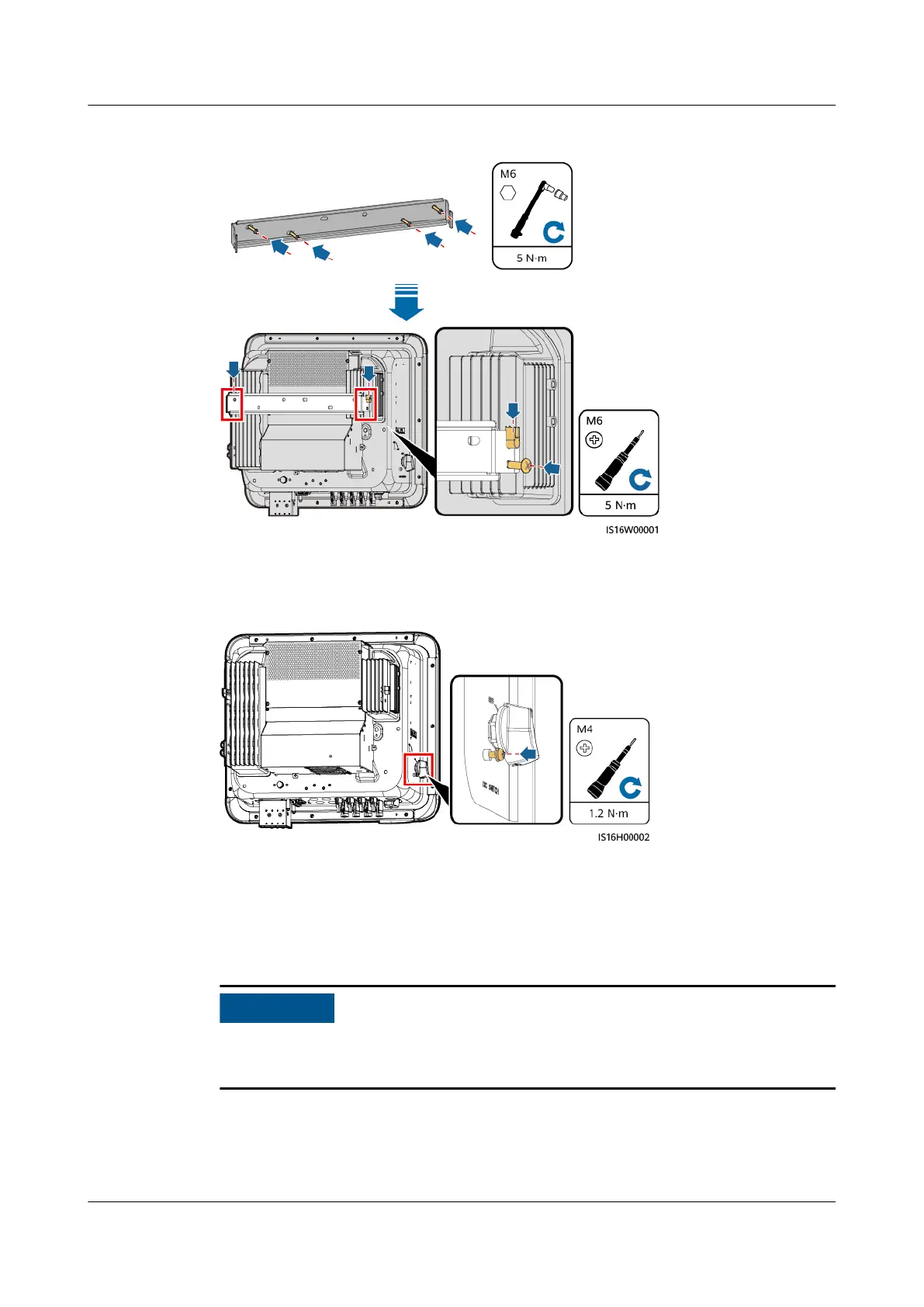

Figure 4-8 Installing the locking screw for the DC switch
----End
4.6 (Optional) Installing a Junction Box
NO TICE
If you do not connect cables immediately after securing the inverter, install a
junction box. Otherwise, the protection level of the inverter will be aected.
Step 1 Align the pin holes at both ends of the junction box with the positioning pins on
the inverter enclosure to ensure that the screw holes on the junction box are
aligned.
SUN2000-(12KTL-25KTL)-M5 Series
User Manual 4 Installation
Issue 03 (2023-02-15) Copyright © Huawei Digital Power Technologies Co., Ltd. 29

Huawei SUN2000 M5 Series Specifications

General

Max Efficiency	98.6%
Max Input Voltage	1100 V
MPPT Operating Voltage Range	200 V - 1000 V
Operating Temperature Range	-25°C to +60°C
Communication	RS485, 4G (optional)
