Step 2 Connect the PE cable.

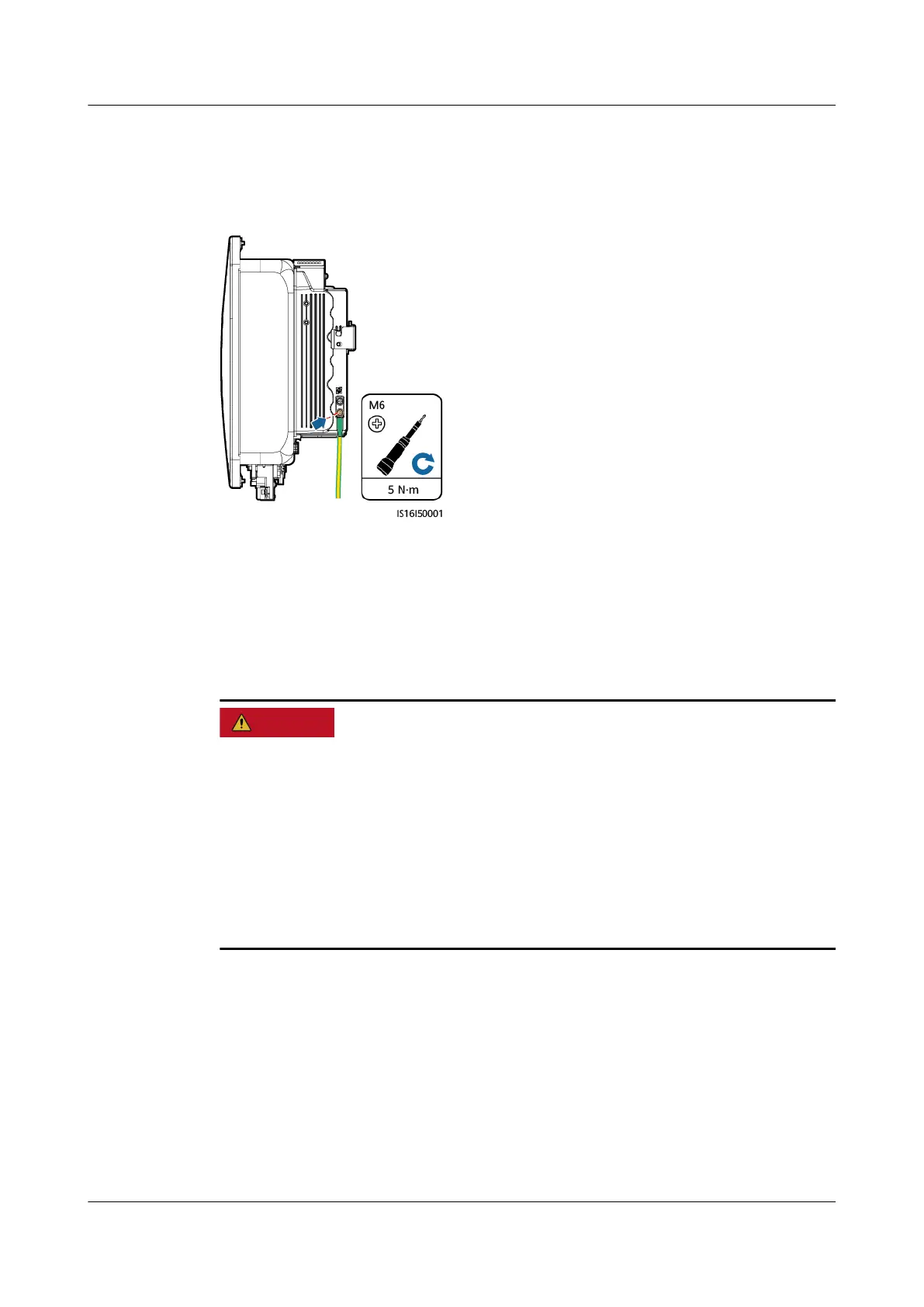

Figure 5-3 Connecting a PE cable
----End
5.4 Installing DC Input Power Cables
Precautions
D ANGER
Before connecting the DC input power cable, ensure that the DC voltage is
within the safe range (lower than 60 V DC) and that the inverter DC SWITCH is
OFF. Failing to do so may result in electric shocks.
When the inverter is operating, it is not allowed to work on the DC input power
cables, such as connecting or disconnecting a PV string or a PV module in a PV
string. Otherwise, electric shocks may occur.
If no PV string connects to a DC input terminal of the inverter, do not remove
the watertight cap from the DC input terminals. Otherwise, the protection level
of the inverter will be
aected.
SUN2000-(12KTL-25KTL)-M5 Series
User Manual 5 Electrical Connections
Issue 03 (2023-02-15) Copyright © Huawei Digital Power Technologies Co., Ltd. 37
