Mutual functions Com.G@te/Web.G@te

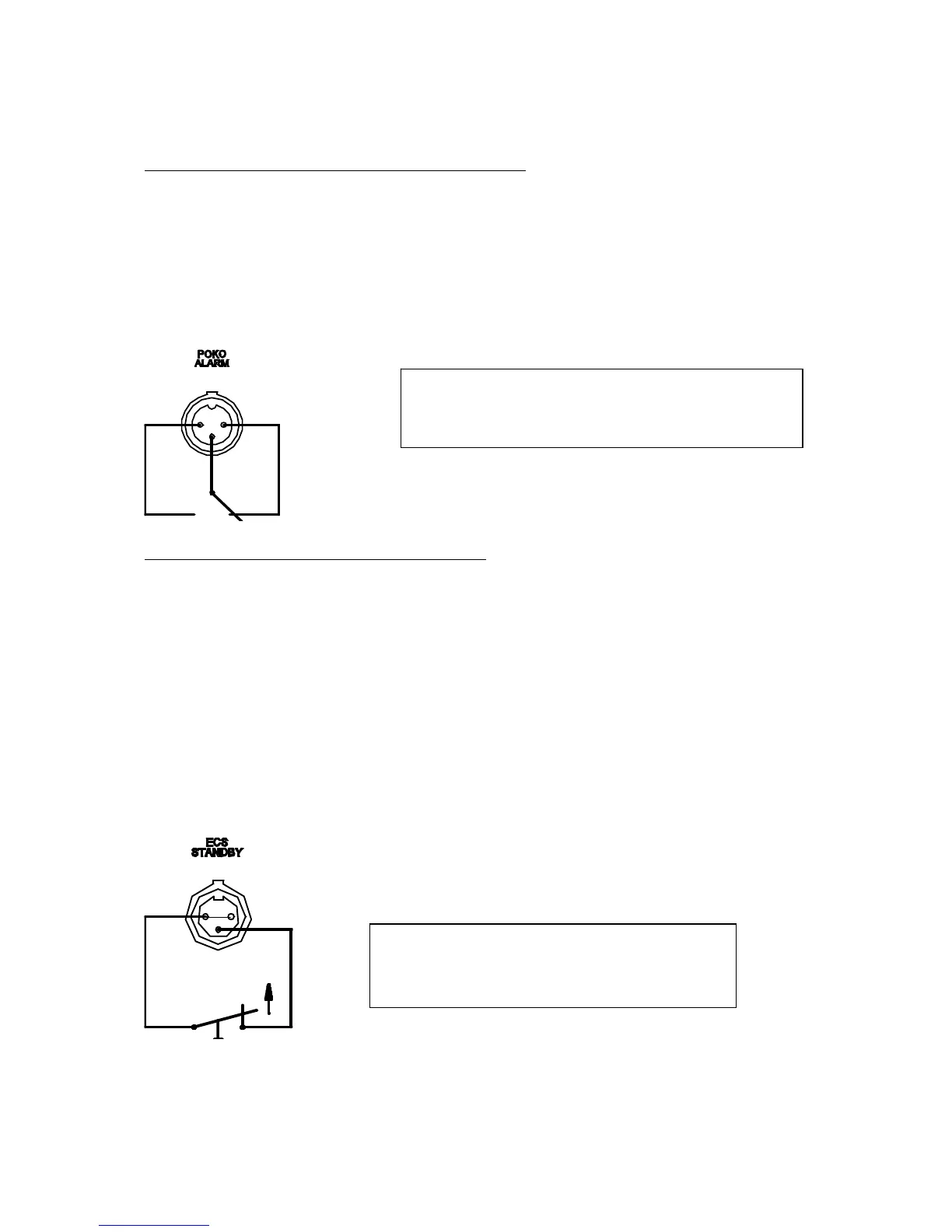

PoKo (potential free contact) Alarm plug connector
Signal contact for external monitoring
Observe the functional options, which the PoKo provides in the main menu.
The potential free contact (PoKo) signals the condition of the temperature control
device by means of the contact position. A closed operating contact means ready
status (must be set via the menu). The operating contact is open in case of a fault or
error (this applies to the normally open contact between pin 1 and pin 2). Further
applications are possible e.g checking of the actual value. The connection is designed
as a potential free changeover contact.
13
2
ECS Socket (External Control Signal) Standby
Release signal ECS (External Control Signal), for starting / stopping temperature control.
The ECS can be used to switch of the temperature control mode (internal/process),
switch to the 2
nd
set-point or allow temperature control.
Control over a potential free contact. The contacts 1 and 3 are bridged internally. ECS
becomes electronically active, if E1 and E2 are connected by an external zero potential
free contact.
The functionality of the ECS is determined in the Com.G@te / Web.G@te menu under
the point ECS Standby.
The following options are offered:
- OFF: ECS does not have any effect (Factory default)
- 2
nd
set-point: The 2
nd
set-point is taken over as soon as ECS is activated
- Standby: ECS has effect on temperature control (ON / OFF)
1
3
2
Normally open contact between pin 1 and pin 2.
