Hubsan Zino 2+ - Remote Control Diagram; Remote Control Antenna Angle

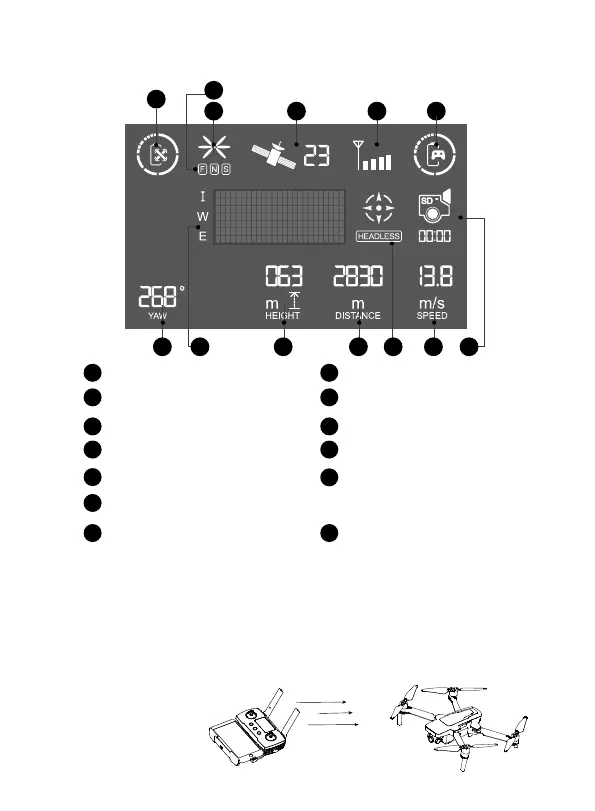

2.4 Remote Control Diagram
1 Aircraft Battery
2 Remote Controller Battery
3
Propellers Status
4
Aircraft Mode
5
Aircraft GPS Satellite
6
Aircraft Signals
7
Heading Angle
8
Character Area
9
Photo / Video
10
Flight Distance
11
Compass Calibration /
Headless Mode
Photo / Video
1312
Aircraft speed
1
7
2
4
8
5 6
3
9 10 11 12 13
9
2.5 Remote Control Antenna Angle
(1) Adjust the angle of the remote control antenna and try to face the flight direc-
tion of the aircraft as much as possible;
(2) Long-distance state, the distance between the two antennas is properly tight-
ened to maintain the antenna directivity;
(3) Closer Sate, the two antennas are properly separated to maintain a wide
receiving range;
(4) Do Not Form an occlusion or cross bettern the antennas.
