102
Select Readouts
(Advanced)
Settings: Various, Default = Off

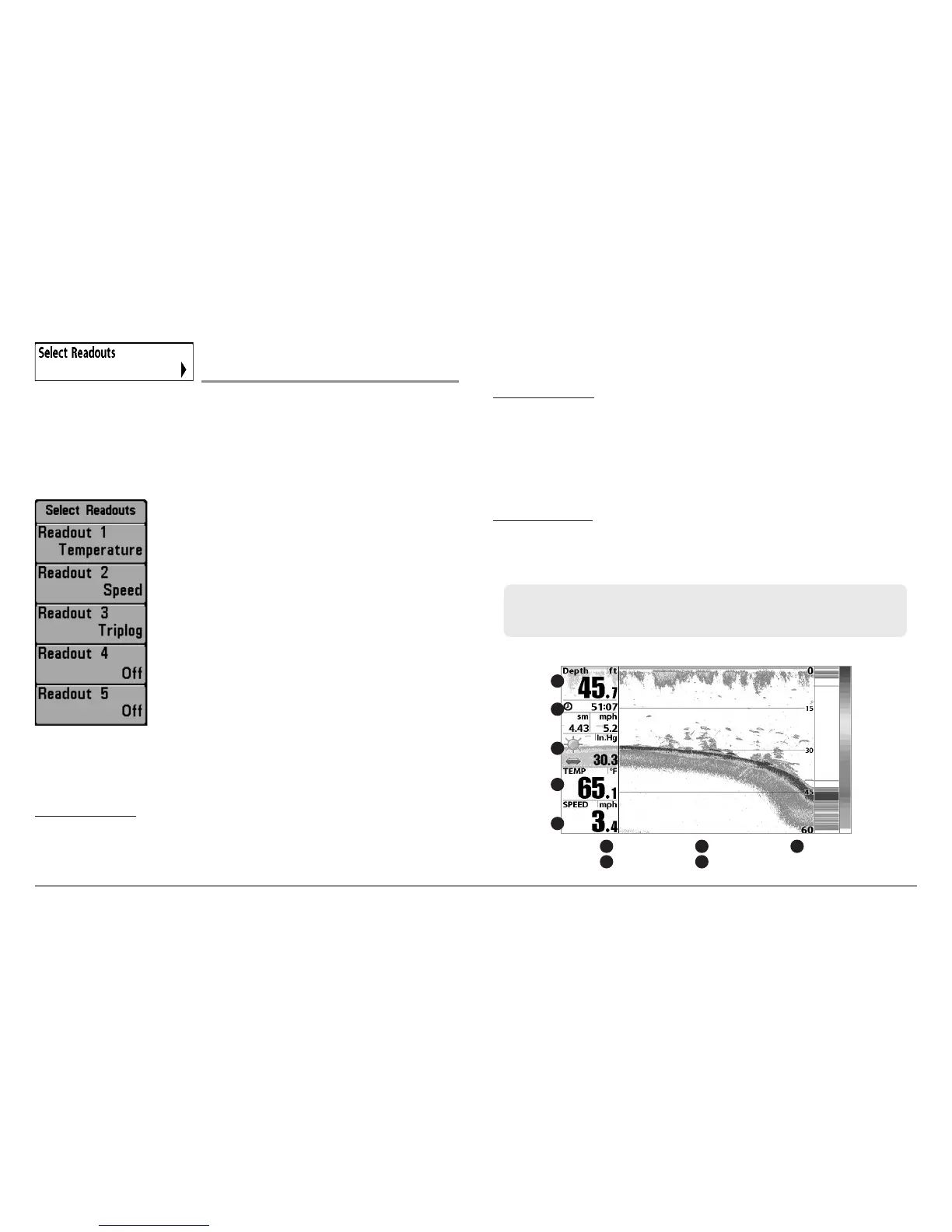

Select Readouts sets the information to display in each of the 5 fixed-
position data windows arranged around the left and bottom edges of the
Sonar View screen. To leave the data window blank, select Off. See Views to
change the Select Readouts.
Data windows can display readouts from supported
accessories such as GPS Receiver or Temp/Speed.
Each data window can be empty or contain one of the
following information categories:
• Course • Time
• Depth • Time + Date
• Off • Triplog
• Position • Voltage
• Aux. Temperature • Temperature
• Speed • Water Speed
Sonar, Side Imaging®, and Down Imaging™ Views: All 5 readouts can be
customized.
During navigation
: Readout 1 can be customized, and Readouts 2 - 5 are
fixed as follows: Readout 2 (Heading), Readout 3 (Bearing), Readout 4 (Split:
Cross Track Error (XTE) and Distance To Go (DTG)), and Readout 5 (Split: Time
To Go (TTG) and Speed).
Chart Views: Readouts 1, 3, and 4 can be customized. Readout 2 (Heading)
and Readout 5 (Speed) are fixed and cannot be customized.
During navigation
: Readout 1 can be customized, and Readouts 2 - 5 are
fixed as follows: Readout 2 (Heading), Readout 3 (Bearing), Readout 4 (Split:
Cross Track Error (XTE) and Distance To Go (DTG)), and Readout 5 (Split: Time
To Go (TTG) and Speed).
Bird’s Eye View: Readout 1 - 4 are fixed as follows: Depth, Heading, Position
(Lat/Lon), and Speed.
During navigation
: There are two columns of fixed readouts. The first column
shows Depth, Time To Go (TTG), Position (Lat/Lon), and Speed. The second
column shows Cross Track Error (XTE), Heading, Bearing, and Distance To Go
(DTG).
Sonar View
Readout 1
1
Readout 2
2
1
2
4
3
5
Readout 3
3
Readout 4
4
Readout 5
5
NOTE: The availability of the digital readout information corresponds with the view
selected, the accessory attached, and whether or not you are navigating.
