8
The Control Head
Power On the Control Head
Press the POWER/LIGHT key to power on your Humminbird® control
head. When the Title screen is displayed, press the MENU key to access the
Start-Up Options Menu. Select Normal (if there is a transducer attached to
the control head) or Simulator (if there isn’t a transducer attached to the
control head).
NOTE: If a functioning transducer is connected, Normal will be selected
automatically at power up, and your Fishing System can be used on the water.
Select Simulator to learn how to use your control head and save settings in
advance for later use. See Start-Up Options Menu for more information.

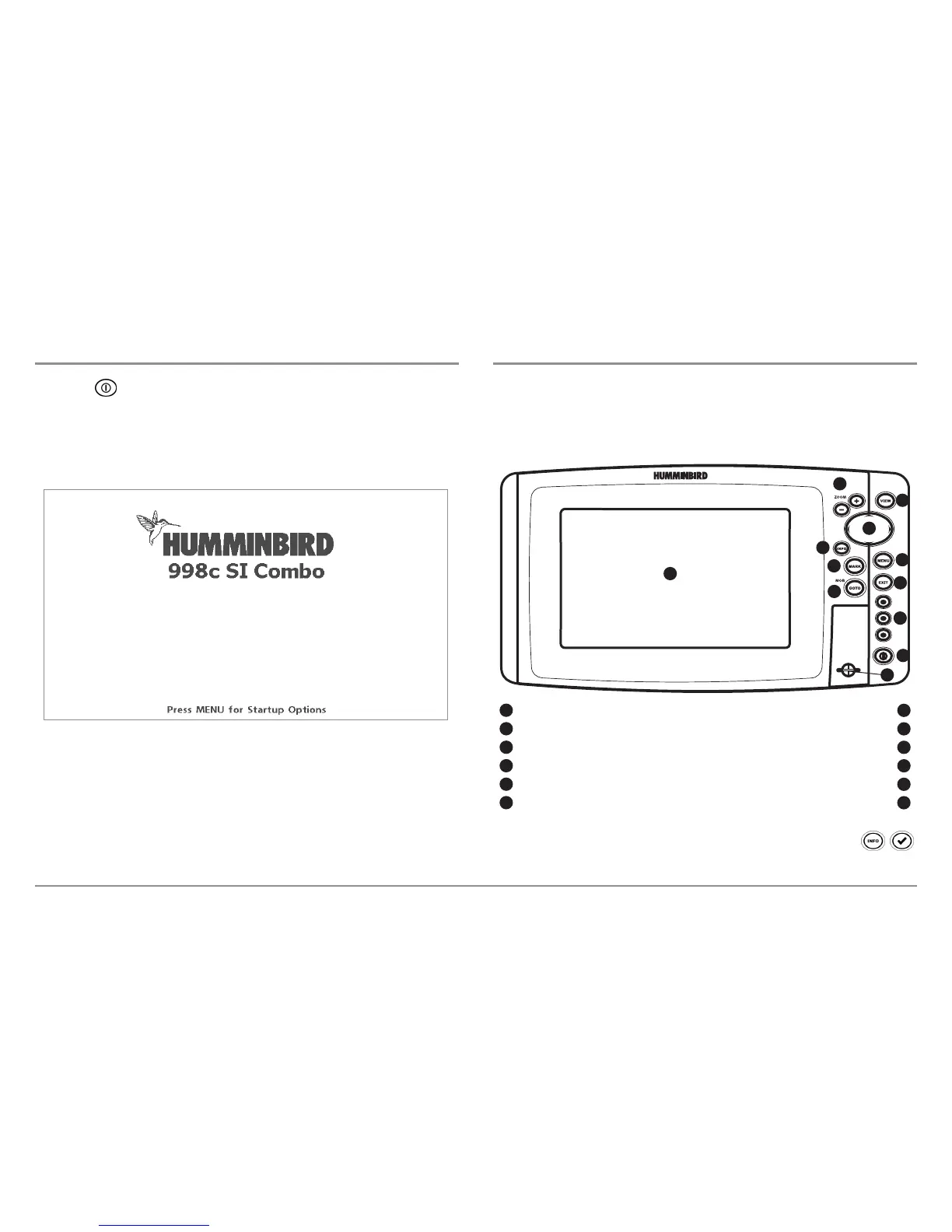

What’s on the Control Head
Your Fishing System user interface is easy to use. A combination of keys,
different views, and situation-specific, customizable menus allows you to
control what you see on the color display. Refer to the following illustration,
and see Key Functions, Views, and The Menu System for more information.
*Your control head will have one of the INFO keys shown here .
Both keys function in the same way.
Screen Menu Key
1
7
ZOOM (+/-) Keys GOTO Key
2
8
View Key Exit Key
3
9
4-Way Cursor Control Key VIEW PRESET Keys
4
10
Info Key* Power/Light Key
5
MARK Key
6
11
1
2
5
6
4
7
3
9
10
12
11
SD Card Slot
12
8
998c SI Combo Title Screen
