Fishing System Configuration
The Fishing System has a wide variety of configurations that will influence
the installation. The accessory bus, video output, and RS 232 connectors
allow you to expand your Fishing System capabilities. As you expand the
configuration, the menu options that correspond with the connected
accessory will be added to the menu system.
Please read all instructions that are relevant for your configuration before
beginning the installation process. See the Humminbird® installation guide
for details.
Accessory Bus
Use the Accessory Bus to expand the
functionality of your Fishing System.
Accessories plug directly into the Fishing
System and enable advanced features such as
WeatherSense®, SmartCast®, and the AS WX 1
Satellite Weather Receiver.
When an accessory is plugged into the Fishing
System, additional functions will be added to the
menu system automatically. See Accessories
Menu Tab and Fishing System Accessories in
this manual. Also, see the accessory’s operations
manual for additional details.
NOTE: Accessories to enable WeatherSense®, SmartCast®, and the AS WX 1
Satellite Weather Receiver require separate purchases. Visit our Web site at
humminbird.com or contact our Customer Resource Center at 1-800-633-1468
for details.

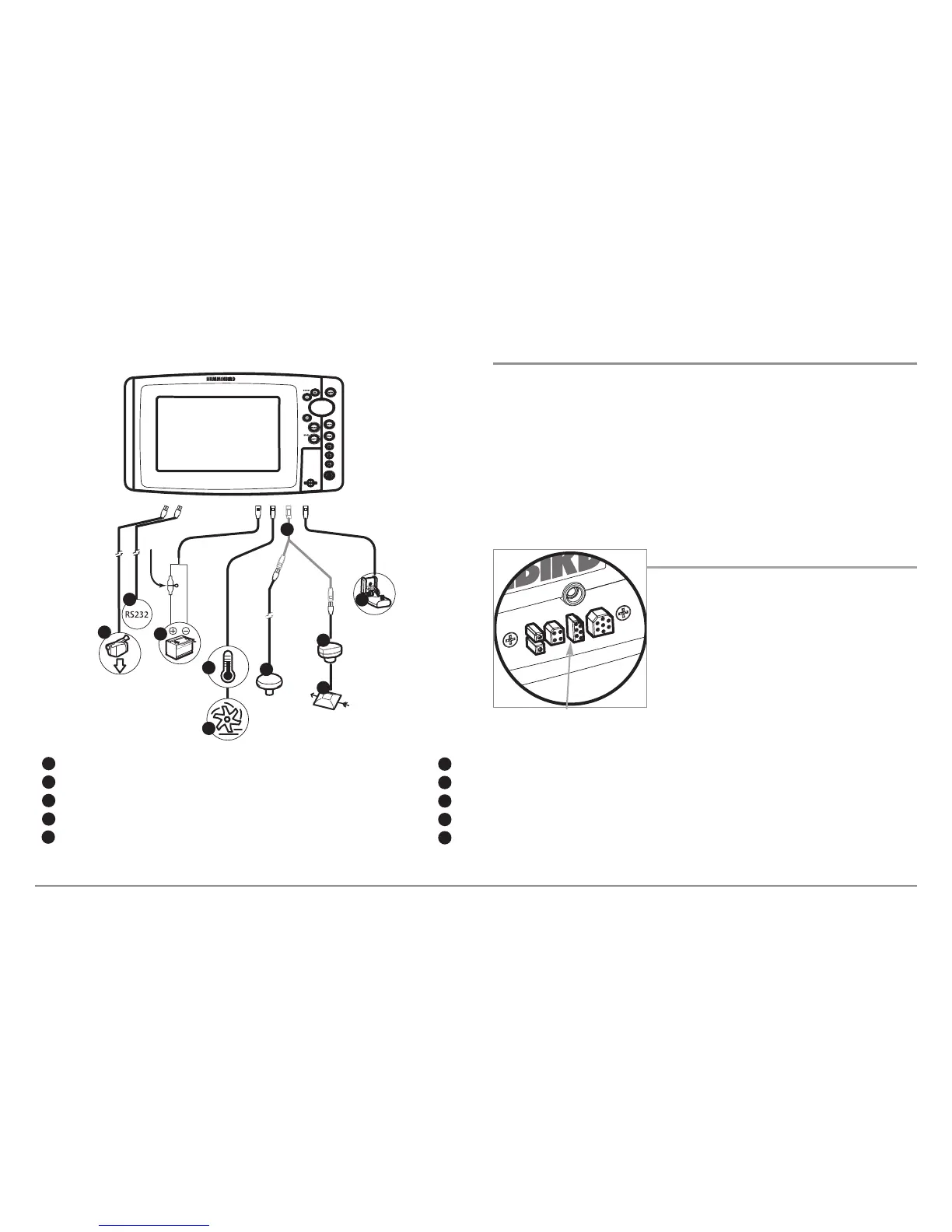

Accessory Bus
The Fishing System has a wide variety of configurations
Video Out
1
RS 232 Connector
2
Power
3
Optional “Y” Cable
GPS Receiver
SmartCast® Wireless Sonar Link
6
7
8
Temperature
4
WeatherSense®
9
5
1
2
3
4
5
6
7
8
9
Sonar Transducer with Temperature
10
10
Speed
5
