139

Display the Data Overlay

Digital readout data can be displayed as an overlay, and it can be displayed in the data bar. To turn on the data bar, see Views:

Display a Data Bar. For more information about data overlays, see Views.

1. From the Overlays menu, select Data Overlay.

2. Select Show. Tap the on/oﬀ button, or press the ENTER key, to turn it on.

3. Tap the menu name, or use the Joystick, to select an item and add a check mark.

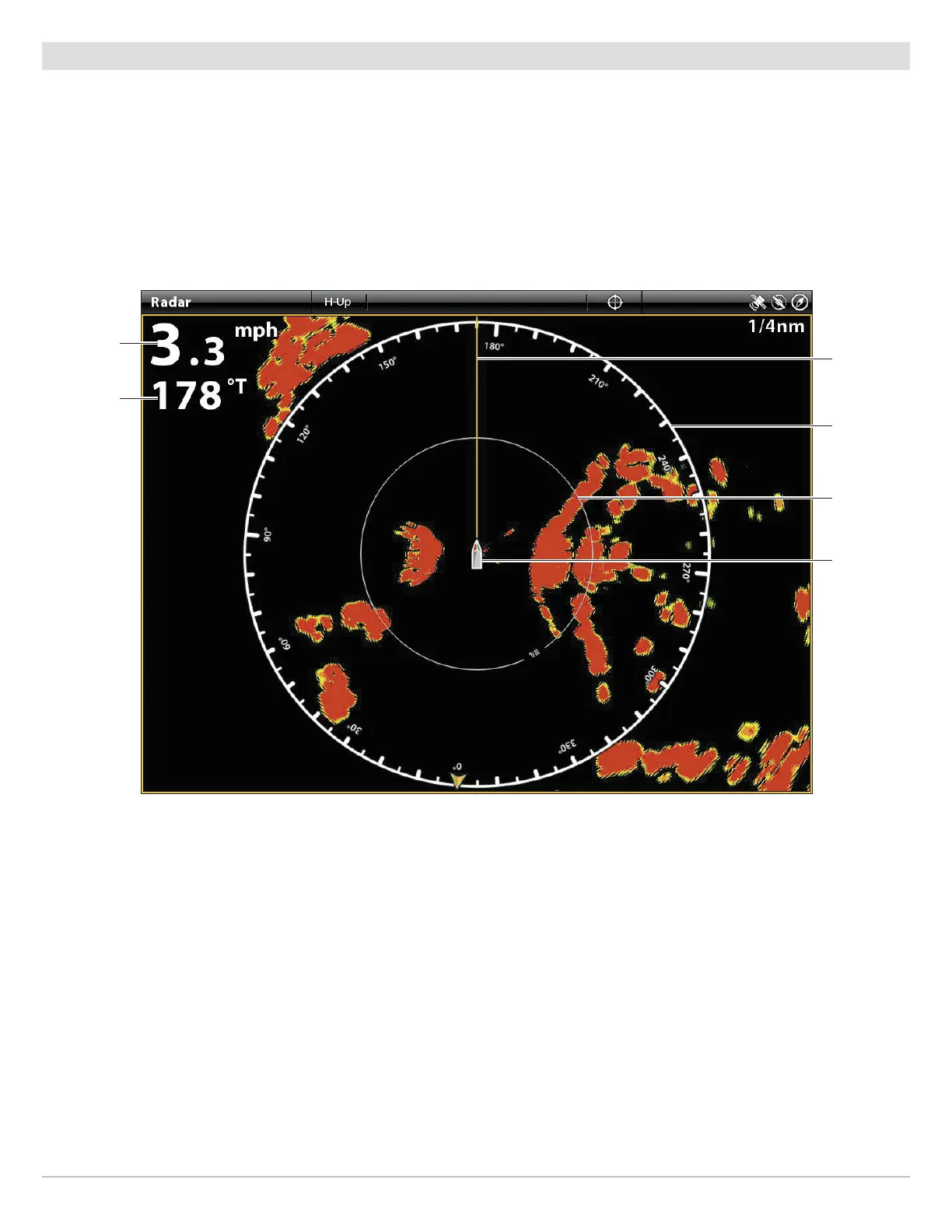

Radar View with Overlays Displayed

speed data

overlay

COG data

overlay

heading line

compass

range ring

vessel icon

Radar Options
