211
SET UP OR CHANGE TRANSDUCER SETTINGS (OPTIONAL)
W
hen you connect a transducer to a black box sonar or to the ONIX control head, the transducer will be detected in the network
a
utomatically. The best transducer source will be chosen and start pinging automatically. If you connect an accessory transducer
t
o the network, the unit will recognize the new transducer.
The instructions in this section are optional and can be used to address the following situations:
Initial Setup: If a transducer is connected to a control head but not detected, Initial Setup will be displayed under Transducer
Setting (see the illustration below). If the transducer is detected, the transducer type is displayed under Transducer Setting
(for example: 2D + DI + SI), and the transducer is already set up in the system, and no further action is required.
Review the Transducer Capabilities (optional): The Transducer Setup menu is used to activate the full functionality of the
transducer. Make sure the transducer functions include a check mark. Add a check mark next to the transducer type, beams,
and temperature probe (if included).
Adjust the Depth Offset (optional)
Adjust the Max Depth (optional)
NOTE: For black box sonar and sonar networking information, see Set up your Humminbird Network. Also, to set up an Airmar
transducer, or for troubleshooting information, download the Transducer Setup Guide from our Web site at humminbird.com.
Set up or Change Transducer Settings (optional)
Use the instructions in this section to enable a transducer with its complete functionality.
1. Press the HOME key.
2. Select Settings.
3. Select Sonar.
4. Select Sonar Source.
5. Select Initial Setup.
If the transducer has been set up, but you want to change a transducer setup setting, select the menu icon.

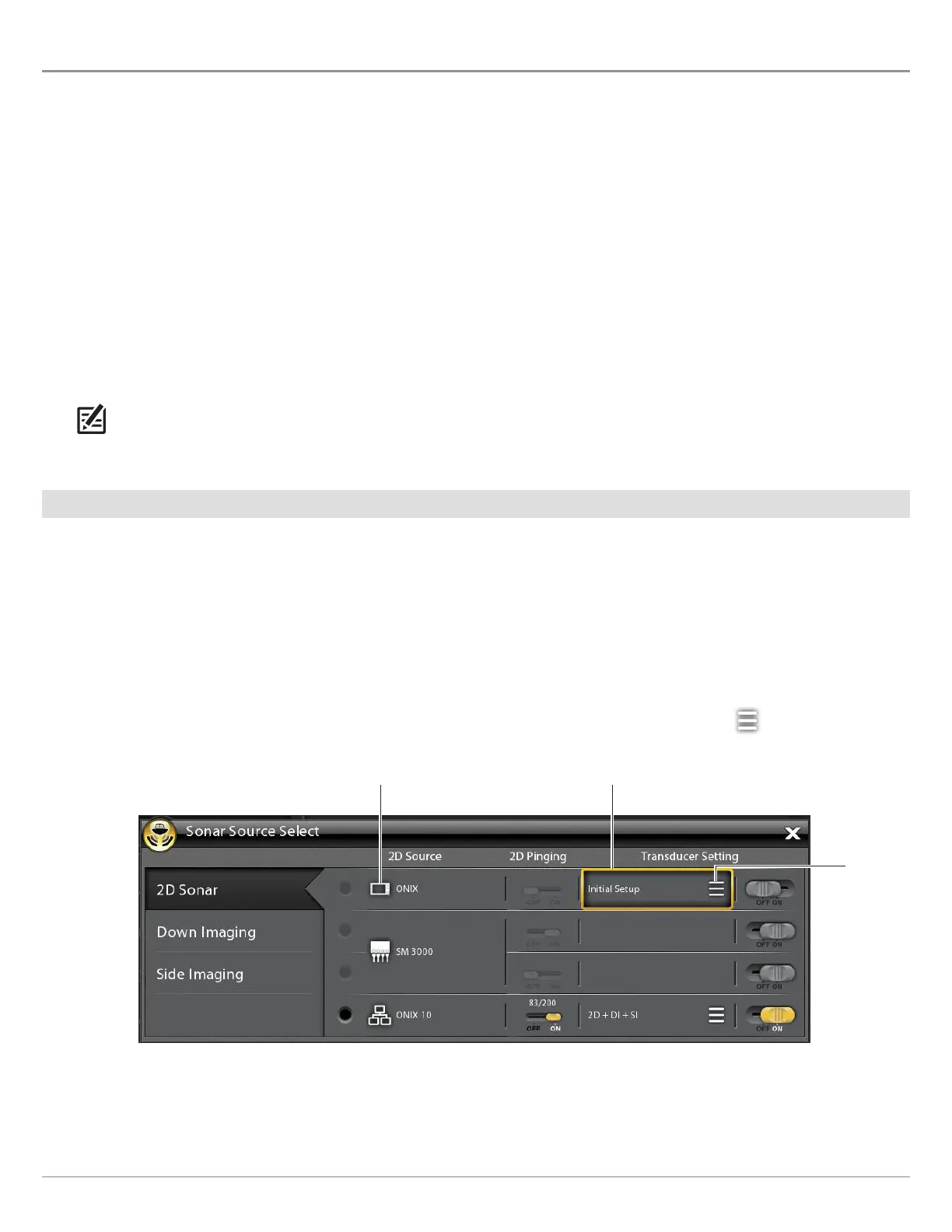

transducer connection location
(connected to the selected ONIX control head)
initial setup
Transducer
setup menu
Transducer Setup
