Humminbird ONIX Opeartion Manual

197
Display Screen Snapshots and Slideshow
When you select a saved screen snapshot (JPG file) from the Images tool, you can display it in full-screen using the touch screen
or keypad.
Display a Screen Snapshot
Touch Screen
1. From the Images tool, tap a screen snapshot.
Scroll to the Next Image/Previous Image:
Tap the on-screen arrows.
Return to the Images Tool:
Tap the on-screen X icon.
Keypad
1. Use the Joystick to select a screen snapshot.
2. Press the ENTER key.
Scroll to the Next Image/Previous Image:
Press the RIGHT ARROW key or LEFT ARROW key.
Return to the Images Tool:
Press the EXIT key.

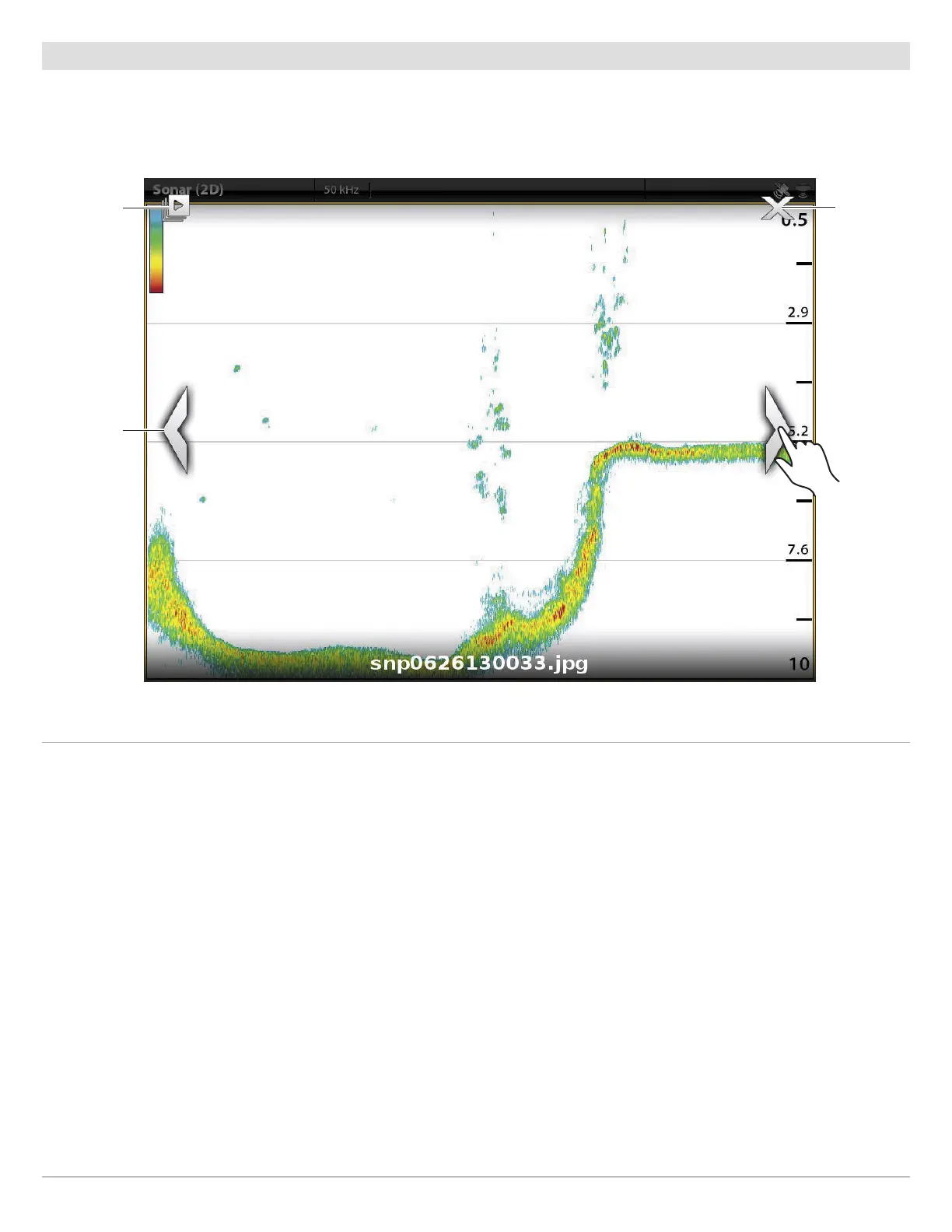

Using the Touch Screen with a Saved Screen Snapshot (Cross Touch)
start
slideshow
Previous
Image: tap
arrow or
swipe left
to right
close
Next Image:
tap arrow or
swipe right
to left
Images Tool

Humminbird ONIX Specifications

General

Networking	Ethernet
Waterproof Rating	IPX7
Waypoints	3000
Power Output	500W (RMS)
Frequency	50/83/200 kHz
GPS Receiver	Internal
