Humminbird ONIX Opeartion Manual

224
S
et NMEA 2000 Data Offsets
1. From the NMEA 2000 Sensor port menu, select Data Offsets.
2. Select a device.
3. Tap the on/off slider, or press the ENTER key, to turn it off.
4. Press and hold the slider, or press and hold the ENTER key, to set the offset amount.

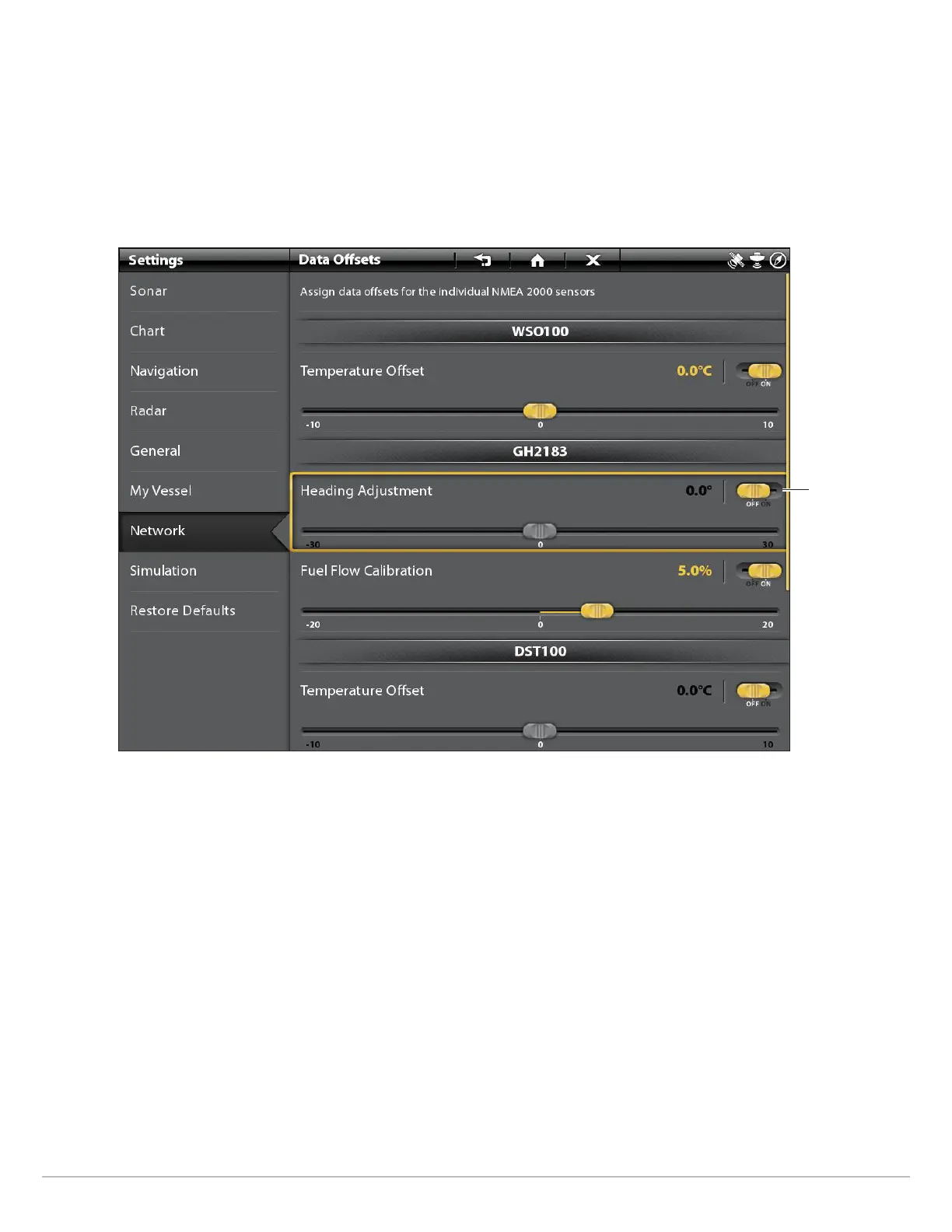

NMEA 2000 Data Offset
Turn off the slider
to manually adjust
the data offset.
NMEA 2000 Setup

Humminbird ONIX Specifications

General

Networking	Ethernet
Waterproof Rating	IPX7
Waypoints	3000
Power Output	500W (RMS)
Frequency	50/83/200 kHz
GPS Receiver	Internal
