ICC Controller
ICC QUICK REFERENCE CHART
PLASTIC CABINET (8 to 32 Stations)
METAL, STAINLESS STEEL CABINET or Plastic Pedestal (8 to 48 Stations)
Note: For stainless steel cabinet, replace “M” with “SS”.
For plastic pedestal, replace “M” with “PP”.
Number of Stations Controller Number of Add-on Modules Specify as:
8 ICC-800-PL No additional module needed ICC-800-PL
12 ICC-800-PL One ICM-400 ICC-1200-PL
16 ICC-800-PL One ICM-800 ICC-1600-PL
20 ICC-800-PL One ICM-400 & one ICM-800 ICC-2000-PL
24 ICC-800-PL Two ICM-800 ICC-2400-PL
28 ICC-800-PL One ICM-400 & two ICM-800 ICC-2800-PL
32 ICC-800-PL Three ICM-800 ICC-3200-PL
Number of Stations Controller Number of Add-on Modules Specify as:
8 ICC-800-M No additional module needed ICC-800-M
12 ICC-800-M One ICM-400 ICC-1200-M
16 ICC-800-M One ICM-800 ICC-1600-M
20 ICC-800-M One ICM-400 & one ICM-800 ICC-2000-M
24 ICC-800-M Two ICM-800 ICC-2400-M
28 ICC-800-M One ICM-400 & two ICM-800 ICC-2800-M
32 ICC-800-M Three ICM-800 ICC-3200-M
36 ICC-800-M One ICM-400 & three ICM-800 ICC-3600-M
40 ICC-800-M Four ICM-800 ICC-4000-M
44 ICC-800-M One ICM-400 & four ICM-800 ICC-4400-M
48 ICC-800-M Five ICM-800 ICC-4800-M
Optional pedestal wiring boards
(PWB) simplify eld wiring.

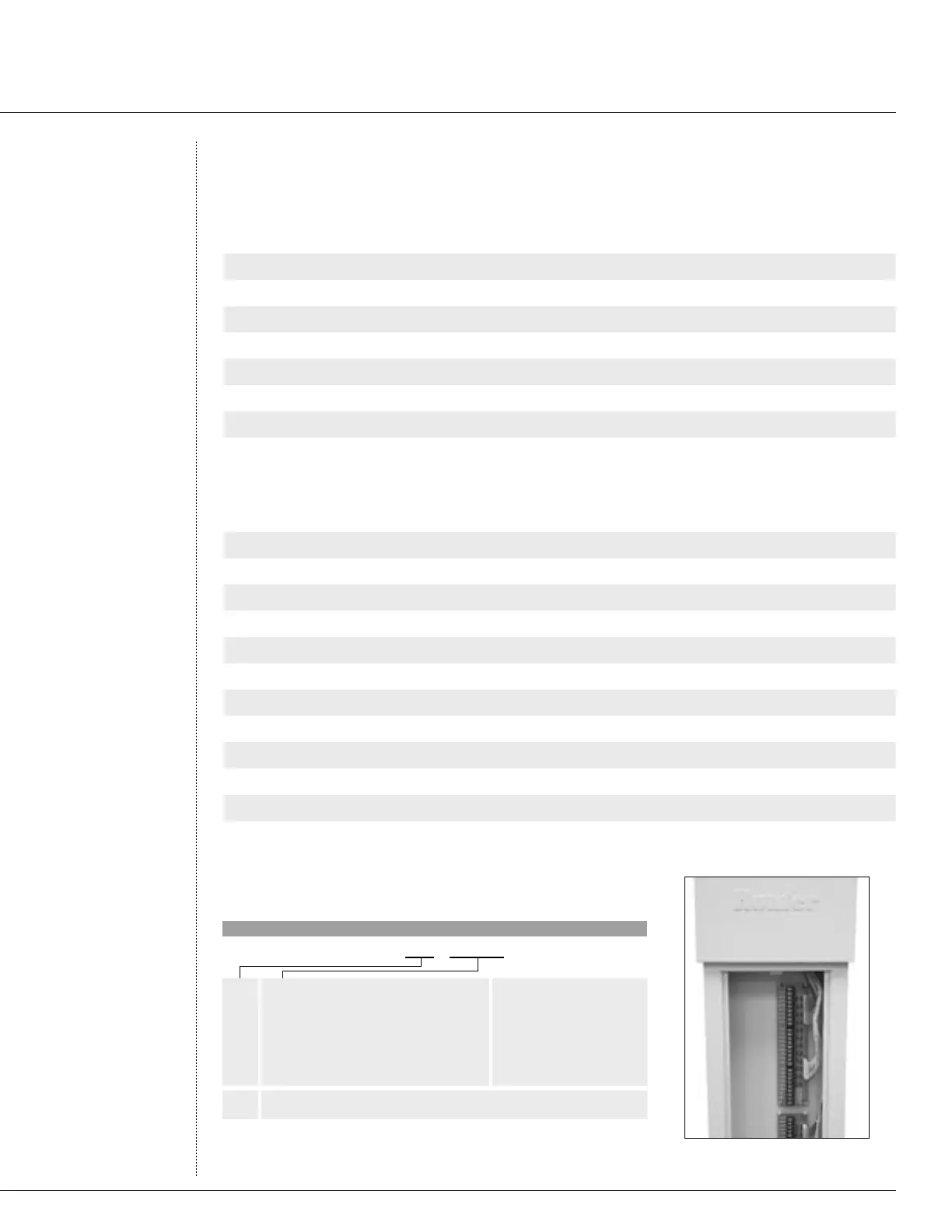

S P E C I F I C A T I O N G U I D E
EXAMPLE: ICC - 800-PL
MODEL
ICC
FEATURES
800-PL = 8-Station Base Unit Controller, Plastic Cabinet, Internal
Transformer, Expands to 32 Stations
800-M = 8-Station Base Unit Controller, Metal Cabinet, Internal
Transformer, Expands to 48 Stations
800-SS = 8-Station Base Unit Controller, Stainless Steel Cabinet,
Internal Transformer, Expands to 48 Stations
800-PP = 8-Station Base Unit Controller, Plastic Pedestal,
Expands to 48 Stations
OPTIONS
PED = Optional Metal Pedestal
PED-SS = Optional Stainless Steel Pedestal
PWB = Pedestal Wiring Board
ICM
400 = 4-Station Plug-in Module for use with any ICC Controller Model
800 = 8-Station Plug-in Module for use with any ICC Controller Model
To Next Page
