Hunter ICC Series

10
11

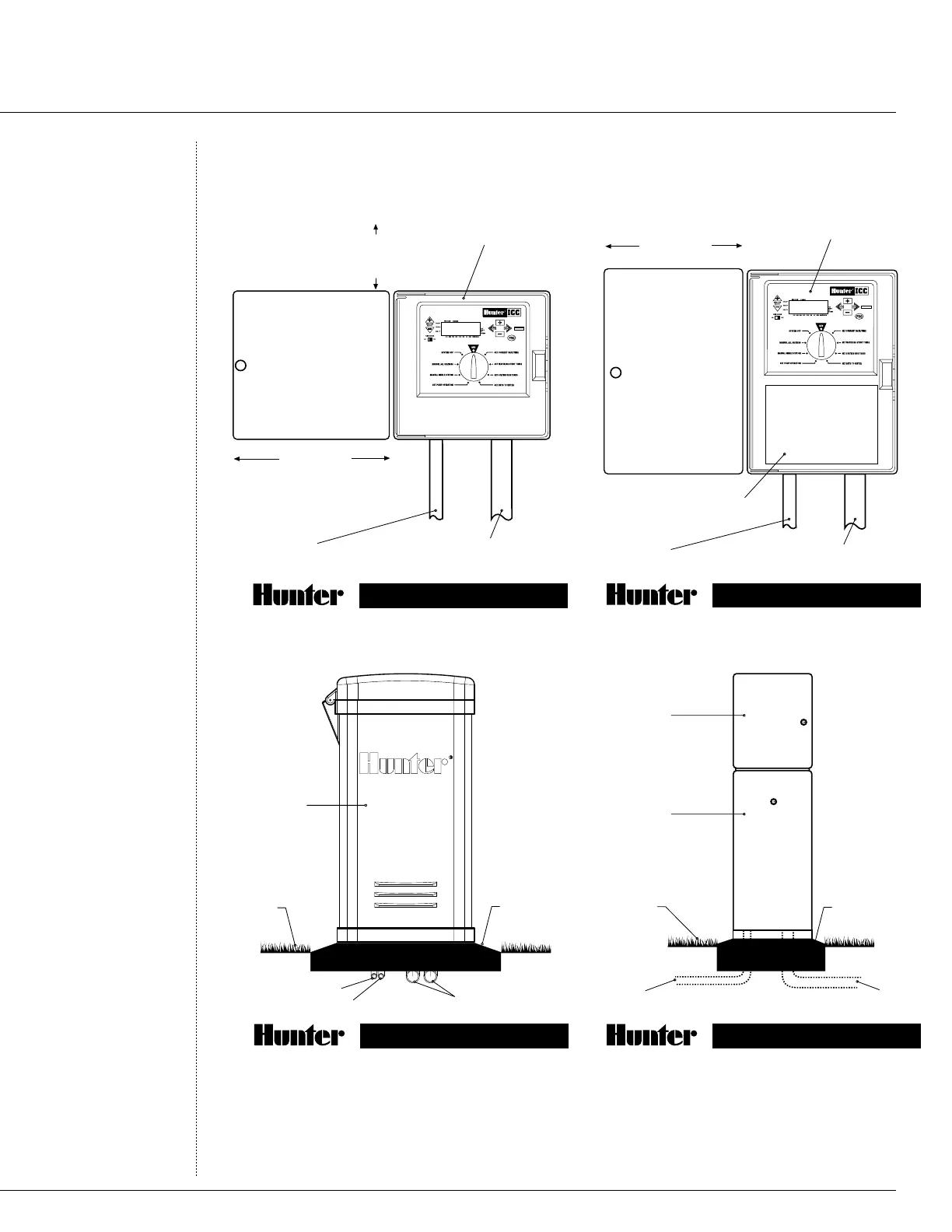

ICC Controller
INSTALLATION DETAIL
ICC-PED
FINISH GRADE
ICC PEDESTAL
CONCRETE
(SLOPE TO DRAIN)
3/4" (19 mm) CONDUIT FOR 120/230 VAC 1 1/4", 1 1/2" OR 2" (32, 40 OR 50 mm)
CONDUIT FOR VA
LVE WIRES
ICC CONTROLLER
METAL CABINET
®
ICC-M
ICC CONTROLLER
METAL CABINET
13" min. (33 cm)
DOOR CLEARANCE
3/4" (19 mm) CONDUIT FOR 120/230 VAC 1 1/4", 1 1/2" OR 2" (32, 40 OR 50 mm)
CONDUIT FOR VA
LVE WIRES
MODULE AND WIRE
ACCESS PANEL
®
ICC-PL
ICC CONTROLLER
PLASTIC CABINET
6 1/2" min. (16 cm)
HINGE PIN
CLEARANCE FOR
DOOR REMOVAL
3/4" (19 mm) CONDUIT FOR 120/230 VAC 1 1/4", 1 1/2" OR 2" (32, 40 OR 50 mm)
CONDUIT FOR VA
LVE WIRES
13" min. (33 cm)
DOOR CLEARANCE
®
ICC-PLASTIC-PED
®
CONCRETE
(SLOPE TO DRAIN)
FINISH GRADE
ICC-800-SAT PEDESTAL
3/4" (19 mm) CONDUIT FOR 120/230 VAC
3/4" (19 mm) CONDUIT FOR GCBL WIRING (IF REQUIRED FOR IMMS
)
1 1/4", 1 1/2" or 2" (32, 40 or 50 mm)
CONDUIT FOR VALVE WIRES
