5
ICC Controller
ten hours. Delays from 0 to 60 seconds are
allocated in 5-second increments and then up
to 10 hours in 1-minute increments.
Note: If the MV circuit is programmed to
operate on the zone, it will stay hot for the
rst minute of any programmed delay.
Test Program
Simple operation allows user to run all
zones for a specied amount of time
The ICC allows the user a simplied method
for running a test program. This feature
operates each station in numerical sequence,
from the lowest to the highest. You can start
with any station. This is a great feature to
check the operation of your irrigation system.
Easy Access Wire Compartment
Simplied wire hookups
The ICC permits fast and easy connection of
wiring in the spacious wiring compartment.
With the sturdy terminal block, the wire can
be inserted without bending for simplied
installation. The primary terminal block has
dedicated terminal screws for both a sensor
hookup and a 24VAC connection for acces-
sories. Each terminal will accommodate two
20-12 gauge wires.

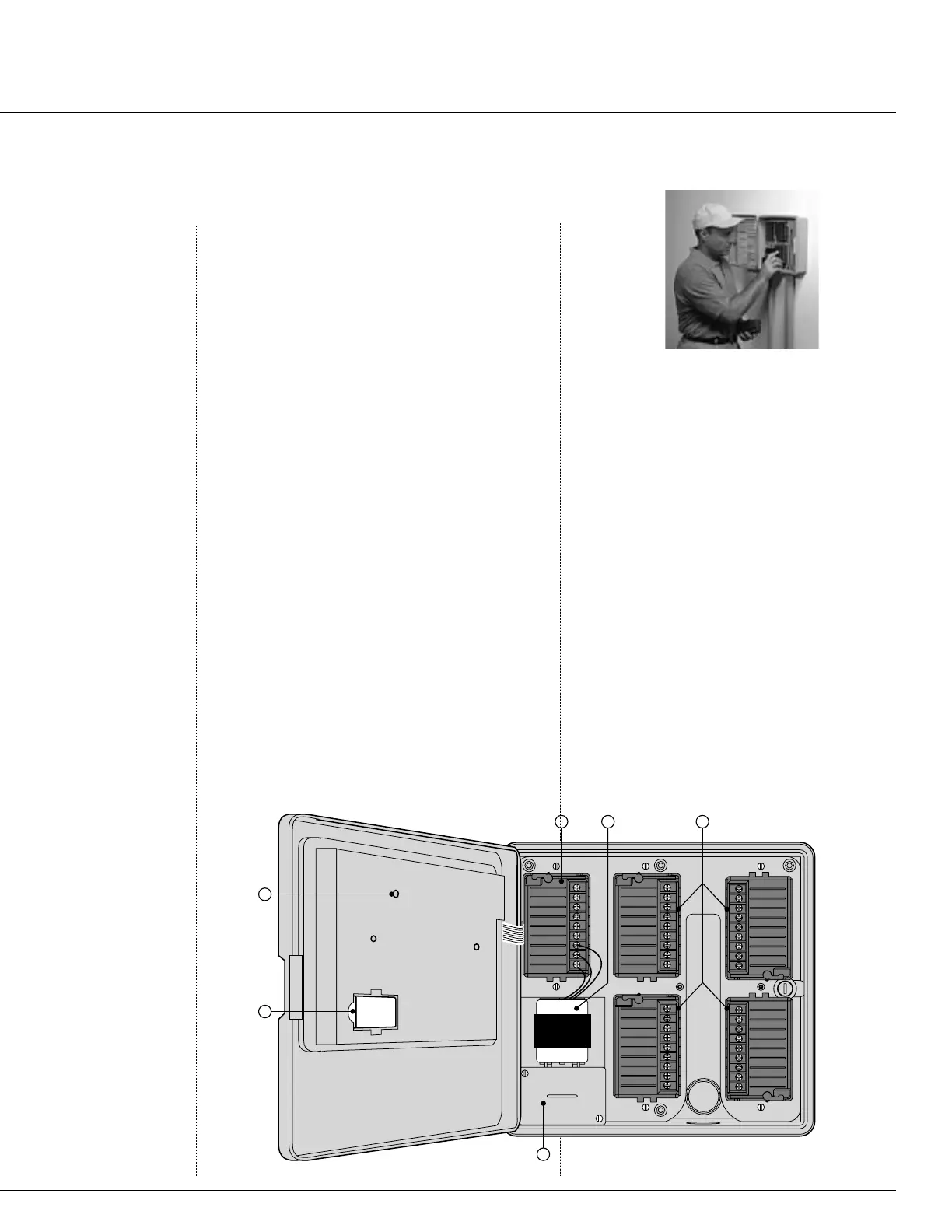

Wiring Cabinet
1. 9-Volt Battery – The alkaline battery keeps time
during power outages or if the transformer is
disconnected. The user may also program the
controller without AC power.
2. Reset Button – This button will restart the com-
puter in case of power surge or display freezing.
No programmed data will be lost.
3. Power Module Area – Used to attach transformer,
master valve, and other systems from their source
to the controller.
4. Transformer – A transformer is installed in the
controller to route AC power from the power
cable to the terminal strip area and to ground the
controller.
5. Junction Box – This box contains connections
for 115 volt and 230 volt power connections.
6. Station Modules – There are 4 (plastic cabinet)
or 6 (metal or stainless steel cabinet and plastic
pedestal) modular positions inside the controller.
With the addition of 4 or 8 station ICM modules,
you have the ability to run anywhere from 8 to
32 stations (plastic cabinet), and 8 to 48
stations (metal, stainless steel cabinet, and
plastic pedestal).
