Hunter PRO-C P2C Series User Manual

9
Built on Innovation
®

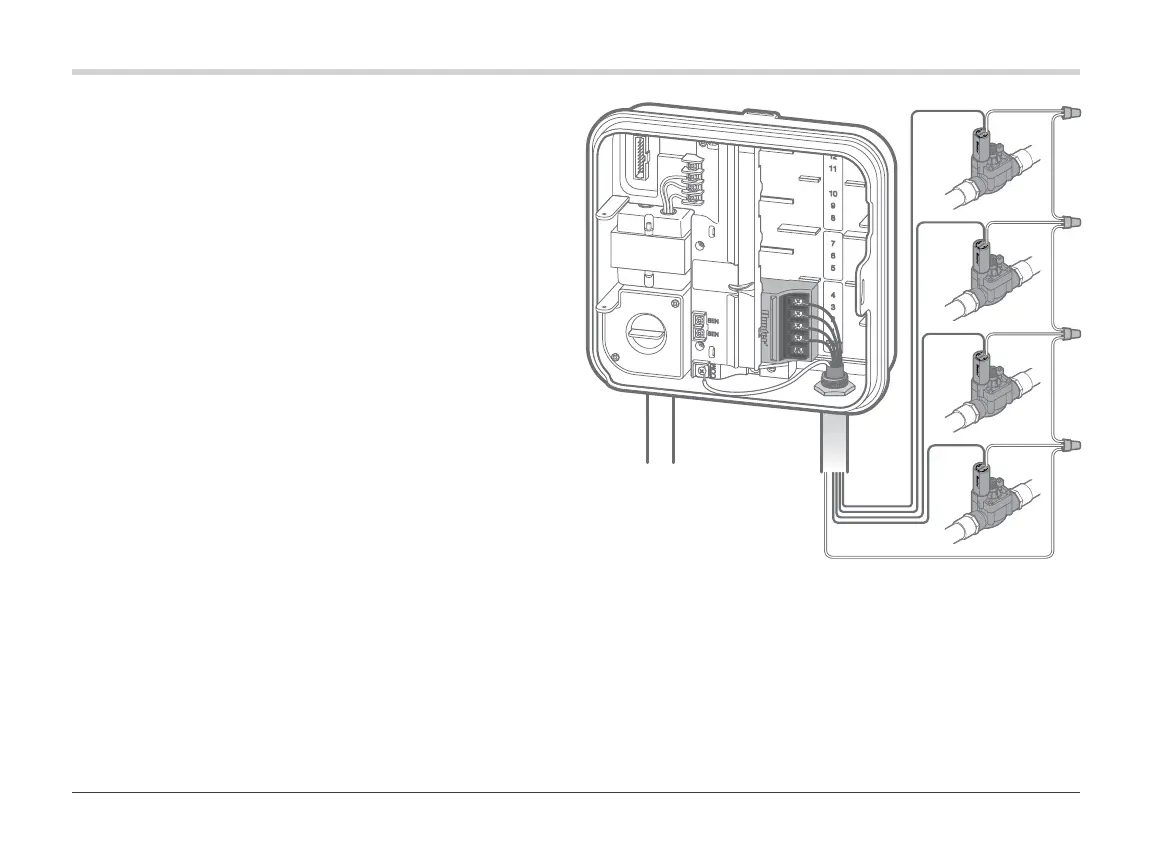

1. Route valve wires between control valve location
and controller.
2. At valves, attach a Common wire to either solenoid wire
of all valves. This is most commonly a white wire. Attach
a separate control wire to the remaining wire of each
valve. All wire splice connections should be done using
waterproof connectors.
3. Route valve wires through the conduit and attach the
conduit to one of the openings on the cabinet bottom.
4. Strip ½" (13 mm) of insulation from ends of all wires.
Secure the valve Common wire to COM (Common)
terminal. Attach all individual valve control wires to the
appropriate station terminals.
Connecting Station Wires
COM
1
2
3
4

Hunter PRO-C P2C Series Specifications

General

Brand	Hunter
Model	PRO-C P2C Series
Category	Controller
Language	English
