6 CONTROLS 16

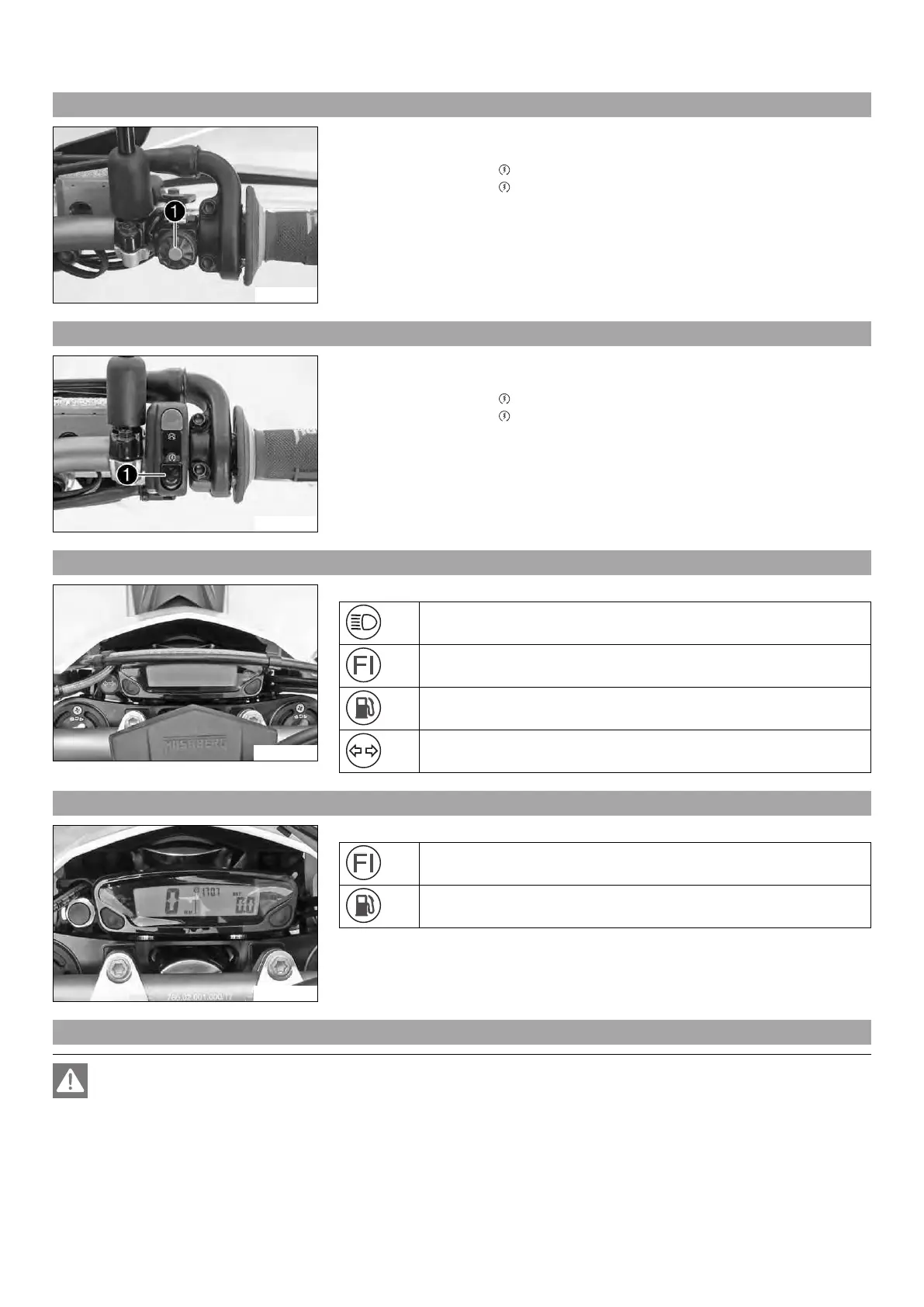

6.11 Electric starter button (FE EU, FE 501 USA)
L00170-10
The electric starter button 1 is fitted on the right side of the handlebar.
Possible states
• Electric starter button in basic position
• Electric starter button pressed – the electric starter is actuated in this position.
6.12 Electric starter button (FE AUS)
101857-11
The electric starter button 1 is fitted on the right side of the handlebar.
Possible states
• Electric starter button in basic position
• Electric starter button pressed – the electric starter is actuated in this position.
6.13 Overview of indicator lamps (FE EU, FE AUS)
B01626-01
Possible states
High beam indicator light lights up blue – High beam is switched on.
FI warning lamp (MIL) lights up/flashes orange – The OBD has detected
an emission- or safety-critical fault.
The fuel level warning lamp lights up orange – The fuel level has
reached the reserve mark.
Turn signal indicator light flashes green – Turn signal is switched on.
6.14 Overview of indicator lamps (FE 501 USA)
B01648-01
Possible states
FI warning lamp (MIL) lights up/flashes orange – The OBD has detected
an emission- or safety-critical fault.
The fuel level warning lamp lights up orange – The fuel level has
reached the reserve mark.
6.15 Opening filler cap
Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
