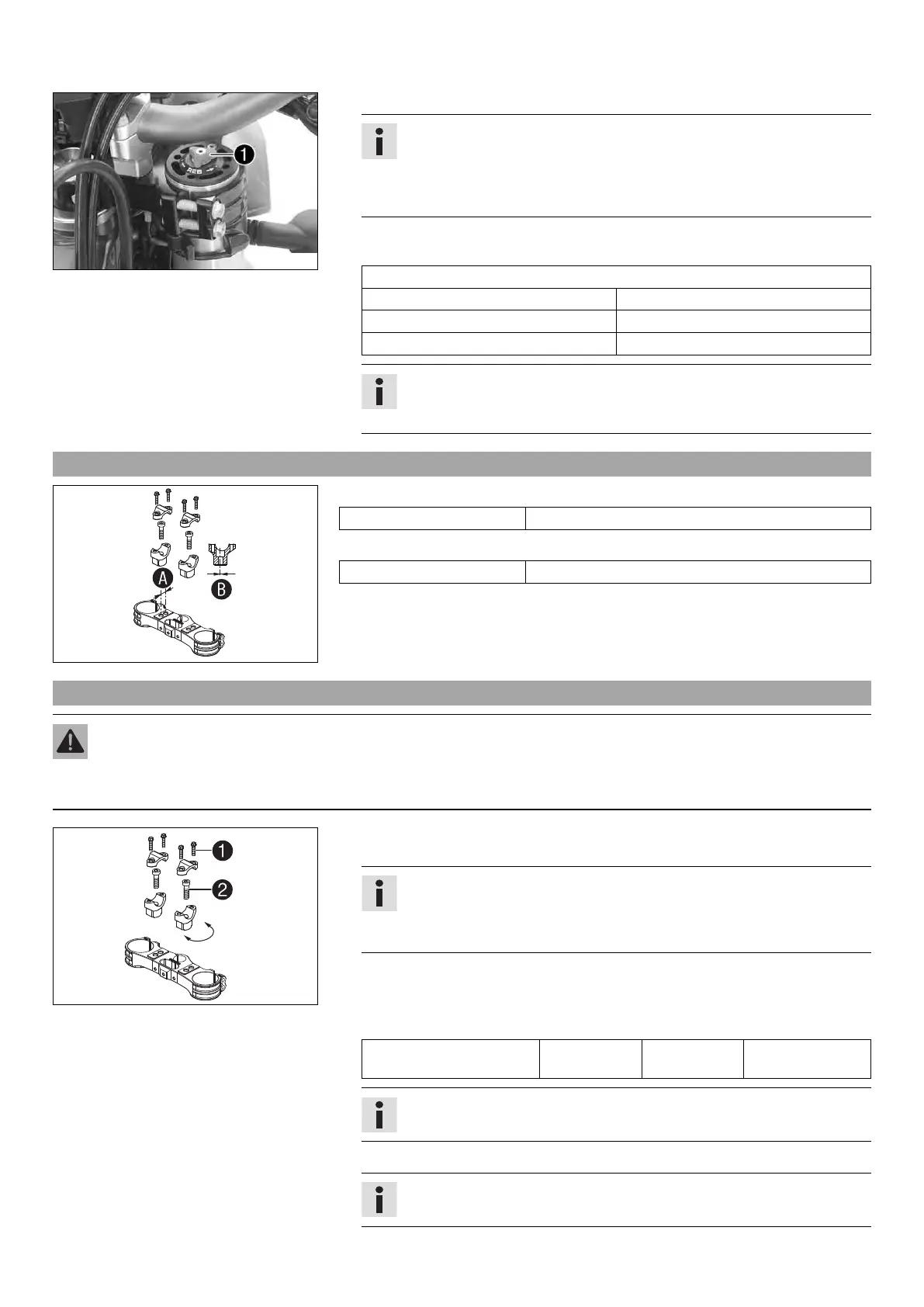

11 TUNING THE CHASSIS 39
L00175-10
– Turn the red adjusting screw 1 all the way clockwise.
Info
Adjusting screw 1 is located at the upper end of the right fork leg.
The rebound damping is located in the right fork leg REB (red adjusting
screw). The compression damping is located in the left fork leg COMP (white
adjusting screw).
– Turn back counterclockwise by the number of clicks corresponding to the fork type.
Guideline
Rebound damping
Comfort 15 clicks
Standard 13 clicks
Sport 11 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp-
ing.
11.14 Handlebar position
101859-10
On the upper triple clamp, there are two holes at a distance of A to each other.
Hole distance A 15 mm (0.59 in)
The holes on the handlebar supports are placed at a distance of B from the center.
Hole distance B 3.5 mm (0.138 in)
The handlebar supports can be mounted in four different positions.
11.15 Adjusting the handlebar position x
Warning
Danger of accidents Handlebar breakage.
– If the handlebar is bent or straightened it will cause material fatigue, and the handlebar can break. Always replace handle-
bar.
101860-10
– Remove the four screws 1. Take off the handlebar clamps. Take off the handlebar
and set it aside.
Info
Protect the motorcycle and its attachments against damage by covering
them.
Do not bend the cables and lines.
– Remove the two screws 2. Remove the handlebar holders.
– Place the handlebar holders in the required position. Mount and tighten the two
screws 2.
Guideline
Screw, handlebar holder M10 40 Nm
(29.5 lbf ft)
Loctite
®
243™
Info
Position the left and right handlebar holders evenly.
– Position the handlebar.
Info
Make sure the cables and wiring are positioned correctly.
