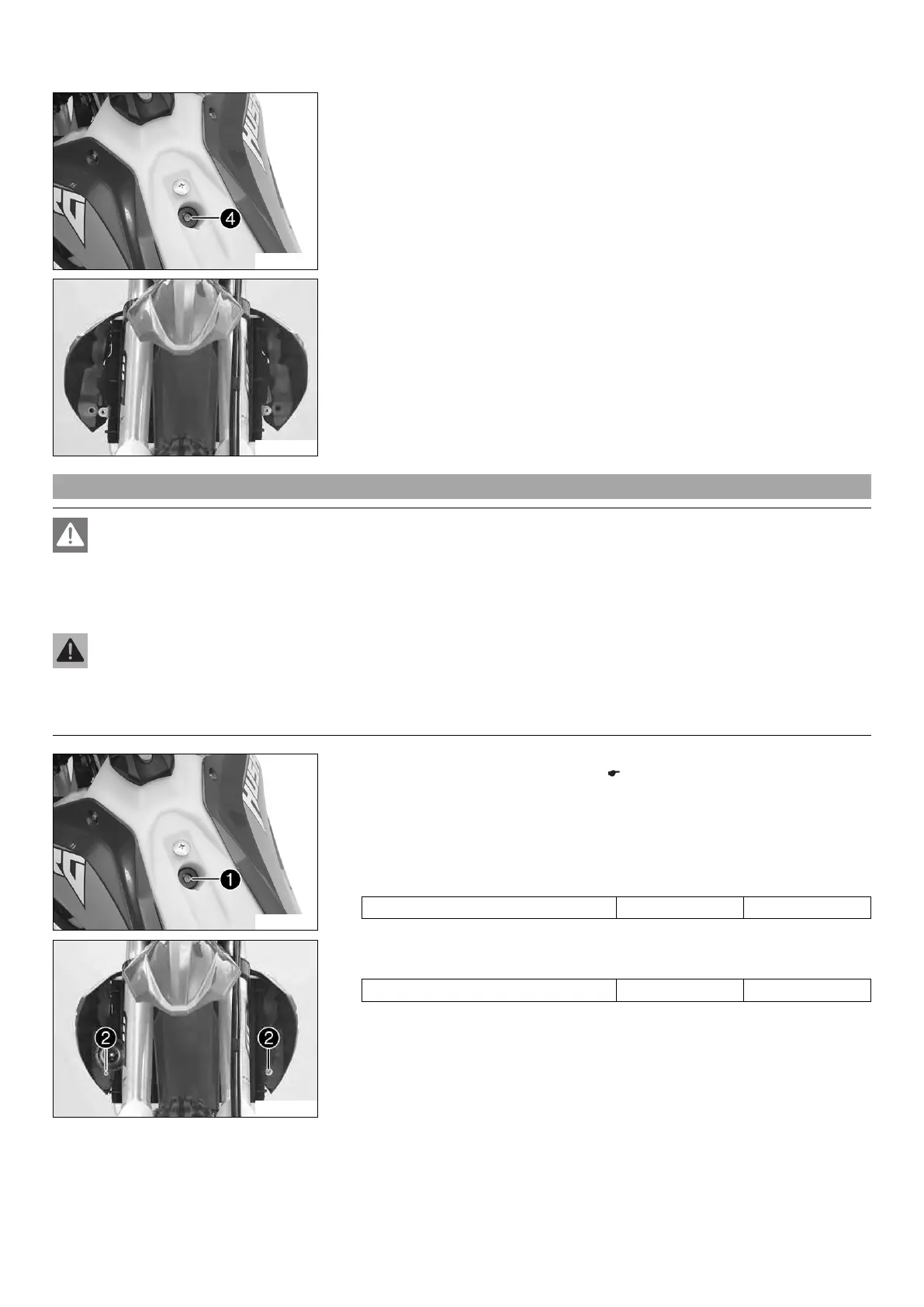

12 SERVICE WORK ON THE CHASSIS 55
L00197-11
– Remove screw 4 with the rubber bushing.
L00200-10
– Pull both spoilers off of the sides of the radiator bracket and lift off the fuel tank.
12.34 Installing the fuel tank x
Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with
the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
L00197-10
Main work
– Check the routing of the throttle cable. ( p. 60)
– Position the fuel tank and fit the two spoilers to the sides of the radiator bracket.
– Make sure that no cables are trapped or damaged.
– Mount the fuel tank breather.
– Mount and tighten screw 1 with the rubber bushing.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
L00199-11
– Position the horn, and fit and tighten screws 2 with collar bushings.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
