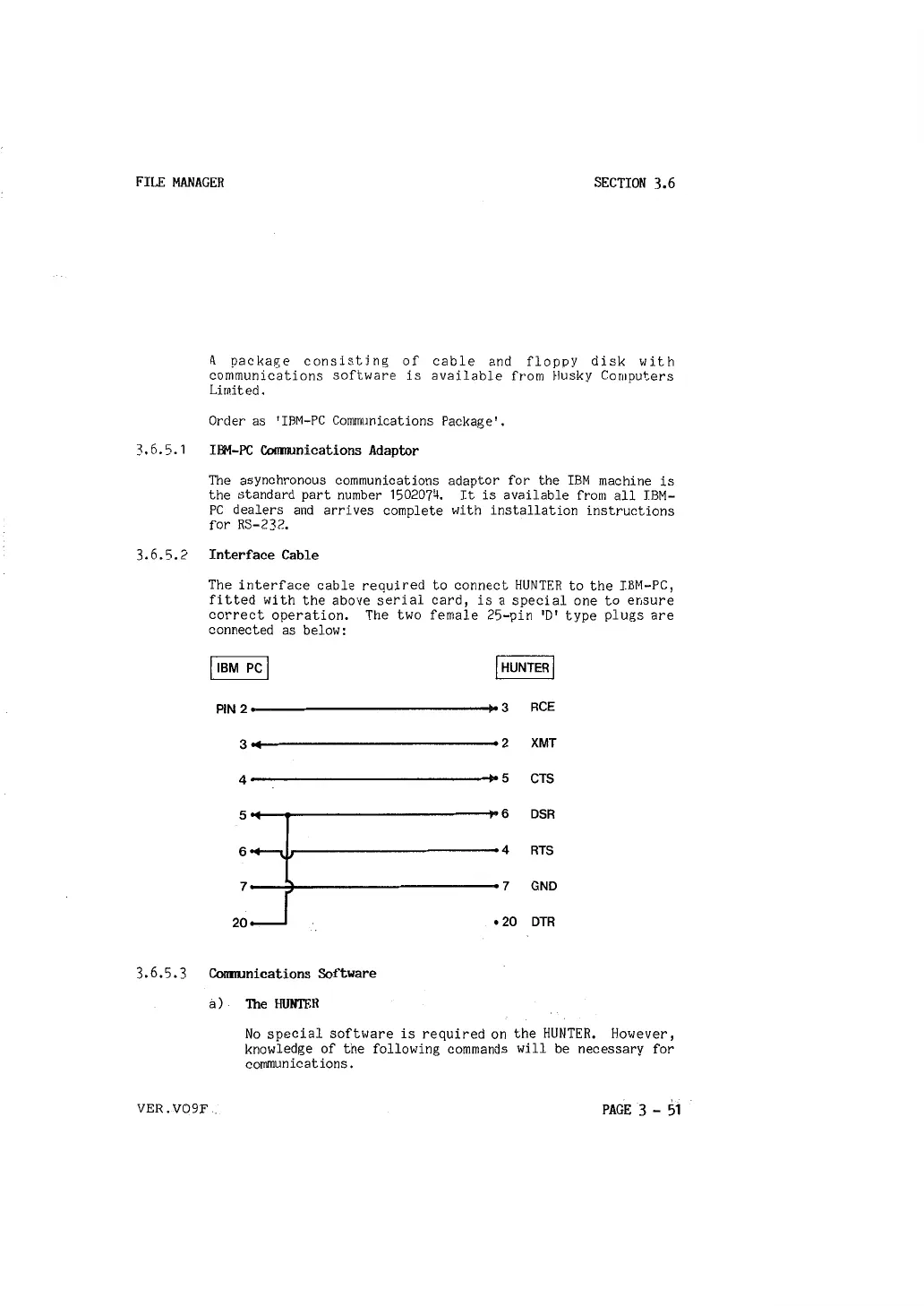

FILE MANAGER
SECTION 3.6
3.6.5. 1
A package consisting of cable and floppy disk with
communications software is available from Husky Computers
Limited.
Order as 'IBM-PC Communications Package'.
IB-1-PC Comnunications Adaptor
The asynchronous communications adaptor for the IBM machine is
the standard part number 1502074, It is available from all IBM-
PC dealers and arrives complete with installation instructions
for RS-232.
3.6.5.2
Interface Cable
The interface cable required to connect HUNTER to the IBM-PC,
fitted with the above serial card, is a special one to ensure
correct operation. The two female 25-pin
'D' type plugs are
connected as below:
I IBM PC I
IHUNTERI
PIN 2
3
RCE
3
2
XMT
4
5
CTS
5
6 DSR
6
4
RTS
7
7
GND
20
• 20
DTR
3.6.5,3 Co!munications Software
a) The HUNTER
No special software is required on the HUNTER. However,
knowledge of the following commands will be necessary for
communications.
VER. V09F ..
PAGE 3 - 51
