APPENDIX
9.10
9.10.1
9.10.2
9.10.3
VER.V09F

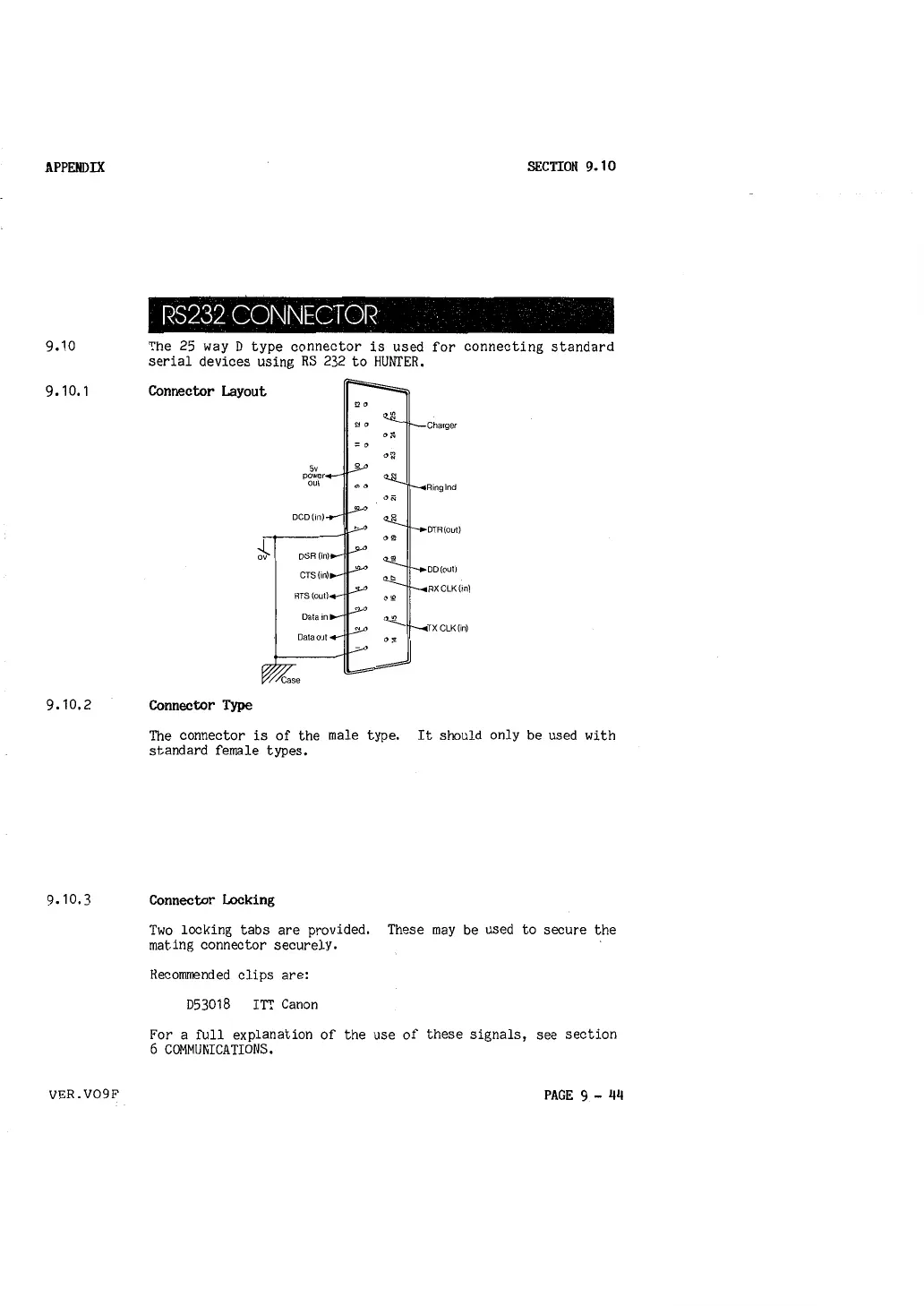

SECTION 9.10
RS232 CONNECTOR
The 25 way D type connector is used for connecting standard
serial devices using RS 232 to HUNTER.
Connector Layout
• 0
Charger
Connector Type
The connector is of the male type. It should only be used with
standard female types.
Connector Locking
Two locking tabs are provided. These may be used to secure the
mating connector securely.
Recommended clips are:
D53018 ITT Canon
For a full explanation of the use of these signals, see section
6 COMMUNICATIONS.
PAGE 9 - 44
