12 SERVICE WORK ON THE CHASSIS 105
12.24 Adjusting the basic position of the clutch lever
Info
Turn the adjusting screw clockwise to increase the distance between the clutch lever and the handlebar.
Turn the adjusting screw counterclockwise to decrease the distance between the clutch lever and the handlebar.
The range of adjustment is limited.
Turn the adjusting screw by hand only, and do not apply any force.
Do not make any adjustments while riding.
H00410-10

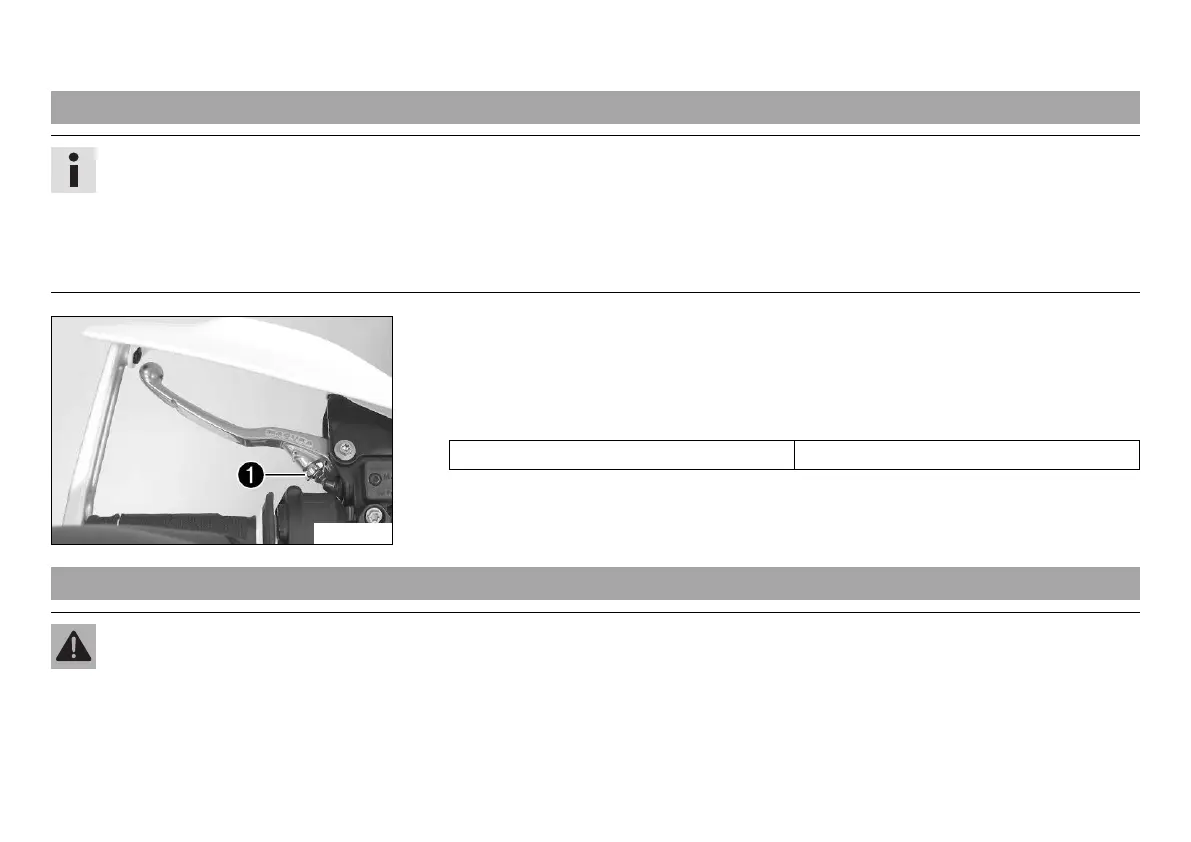

– Adjust the basic position of the clutch lever to your hand size by turning adjusting
screw
.
– When adjusting the clutch lever, make sure to leave a minimum clearance to other
parts of the vehicle.
Guideline
Minimum clearance 5 mm (0.2 in)
12.25 Checking/correcting the fluid level of the hydraulic clutch
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children.
– Wear suitable protective clothing and goggles.
– If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately.
