13 BRAKE SYSTEM 114

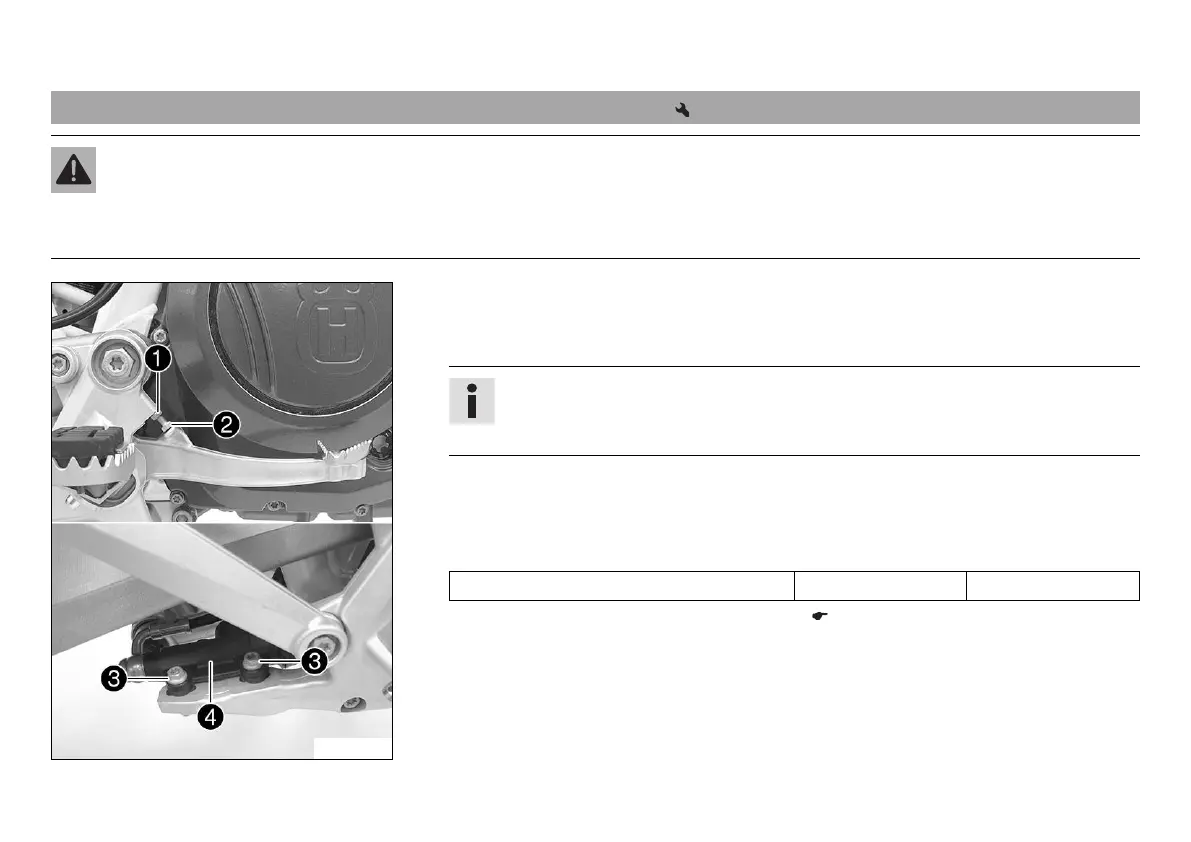

13.8 Adjusting the basic position of the foot brake lever
Warning
Danger of accidents Brake system failure.
– If there is no free travel on the foot brake lever, pressure builds up on the rear brake circuit. The rear brake can fail due to
overheating. Adjust the free travel on foot brake lever according to specifications.
H00413-10
–
Loosen fittings
on foot brake cylinder
.
–
To adjust the basic position of the foot brake lever individually, loosen nut
and
turn screw
accordingly.
Info
The range of adjustment is limited. The screw must be screwed into the
footrest bracket by at least four turns.
–
Position foot brake cylinder
so that the foot brake lever has the necessary free
travel.
–
Mount and tighten fittings
.
Guideline
Screw connection, foot brake cylinder M6 10 Nm (7.4 lbf ft)
– Check the free travel of the foot brake lever. ( p. 113)
–
Tighten nut
.
