7 SPEEDOMETER 44

7.3 Messages on the speedometer

401901-01

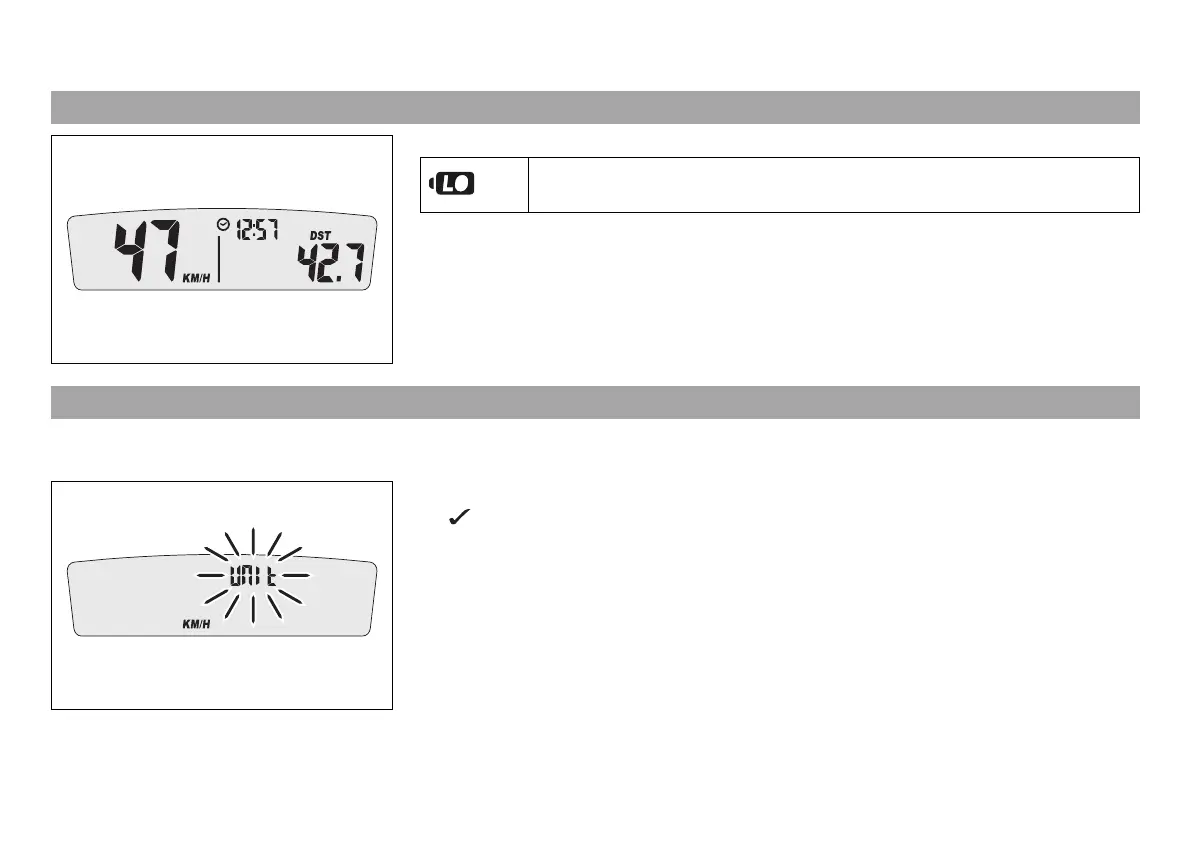

Possible states

Battery voltage of the speedometer – The battery voltage of the

speedometer is too low. Change the battery.

7.4 Setting the speedometer

Condition

The motorcycle is stationary.

401909-01

– Press both buttons for 3–5 seconds.

The Setup menu is displayed. The UNIT display flashes.

– Press one of the buttons to select UNIT for the speed in kilometers KM/H or miles

M/H.
