TUNING THE ENGINE 17
127

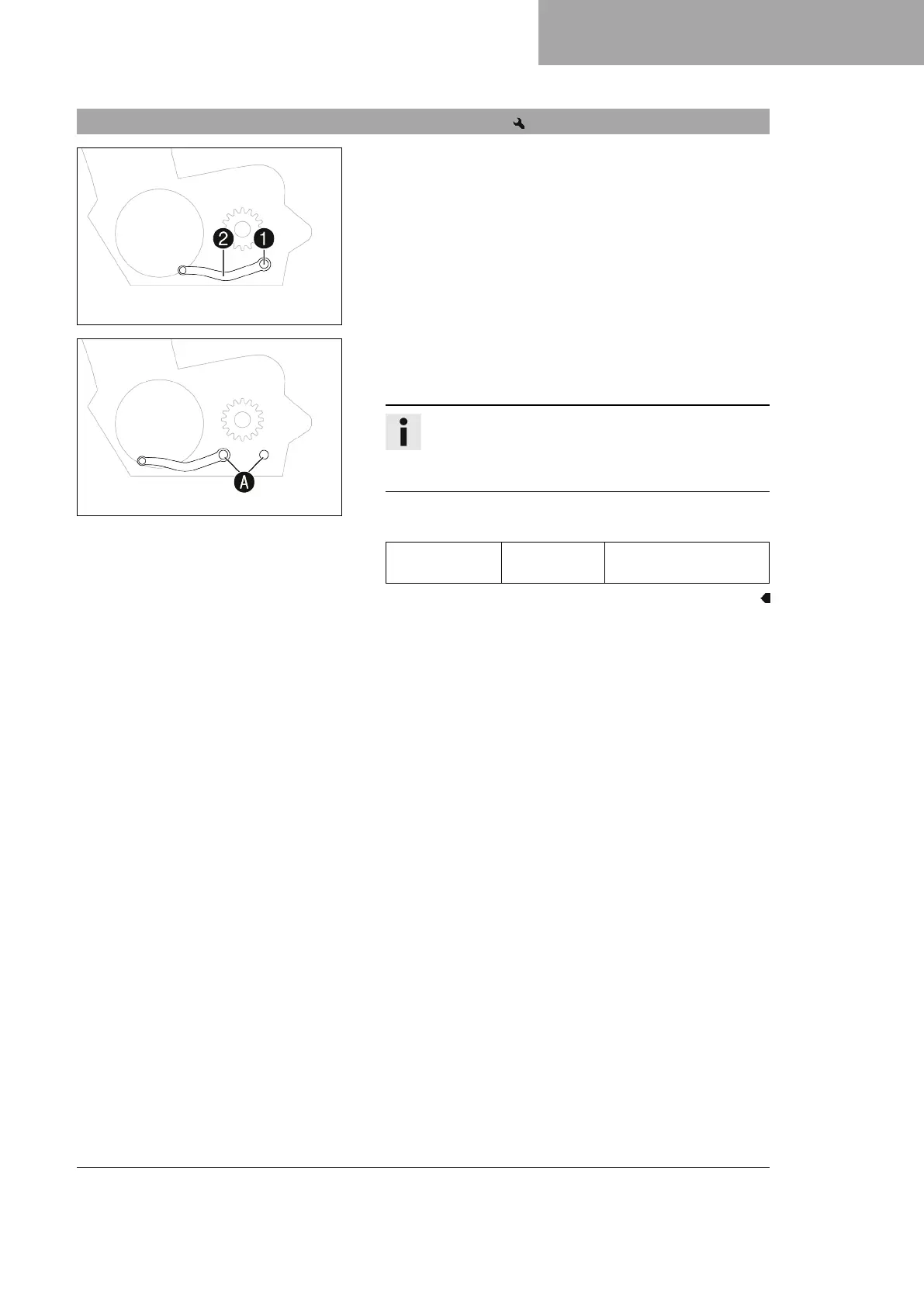

17.7 Adjusting the basic position of the shift lever
401950-12
Remove screw
1
with the washers and take off shift
lever
2
.
401951-10
Clean gear teeth
A
of the shift lever and shift shaft.
Mount the shift lever on the shift shaft in the required position
and engage gearing.
Info
The range of adjustment is limited.
The shift lever must not come into contact with any
other vehicle components during the shift procedure.
Mount and tighten screw
1
with washers.
Guideline
Screw, shift
lever
M6 14 Nm (10.3 lbf ft)
Loctite
®
243™
