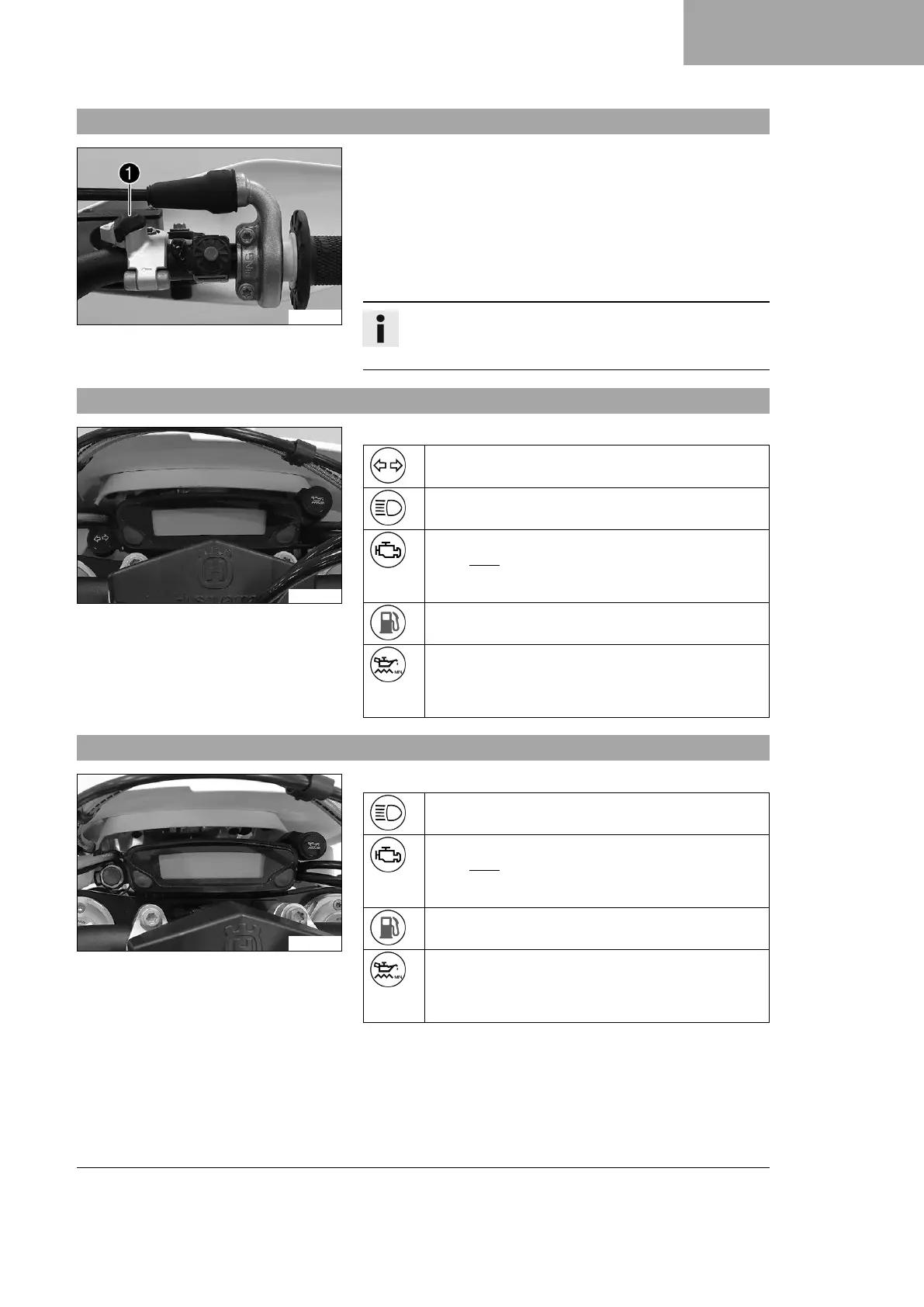

6.13 Map switch
H03656-11
The map switch
1
is fitted on the right side of the handlebar.
Possible states
• Map switch in position I – The ignition timing
map Performance is active in this position.
• Map switch in position II – The ignition timing map Soft is
active in this position.
The engine characteristic can be altered with the map switch.
Info
The map switch has no function in the homologated (re-
stricted) condition of the motorcycle.
6.14 Overview of indicator lights (All EU/AR/CN standard models)
H03657-10
Possible states
Turn signal indicator lamp flashes green – The turn
signal is switched on.
The high beam indicator lamp lights up blue – The
high beam is switched on.
Malfunction indicator lamp lights up/flashes yellow
– The OBD has detected a malfunction in the vehicle
electronics. Come safely to a halt, and contact an
authorized Husqvarna Motorcycles workshop.
The fuel level warning lamp lights up yellow – The
fuel level has reached the reserve mark.
The oil level warning lamp lights up red – Oil level
has reached the MINmarking. Ride for no more than
until the remaining fuel in the tank is depleted and at
the next opportunity refuel with 2-stroke oil.
6.15 Overview of indicator lamps (All US standard models)
H03655-11
Possible states
High beam indicator lamp – inoperative
Malfunction indicator lamp lights up/flashes yellow
– The OBD has detected a malfunction in the vehicle
electronics. Come safely to a halt, and contact an
authorized Husqvarna Motorcycles workshop.
The fuel level warning lamp lights up yellow – The
fuel level has reached the reserve mark.
The oil level warning lamp lights up red – Oil level
has reached the MINmarking. Ride for no more than
until the remaining fuel in the tank is depleted and at
the next opportunity refuel with 2-stroke oil.
