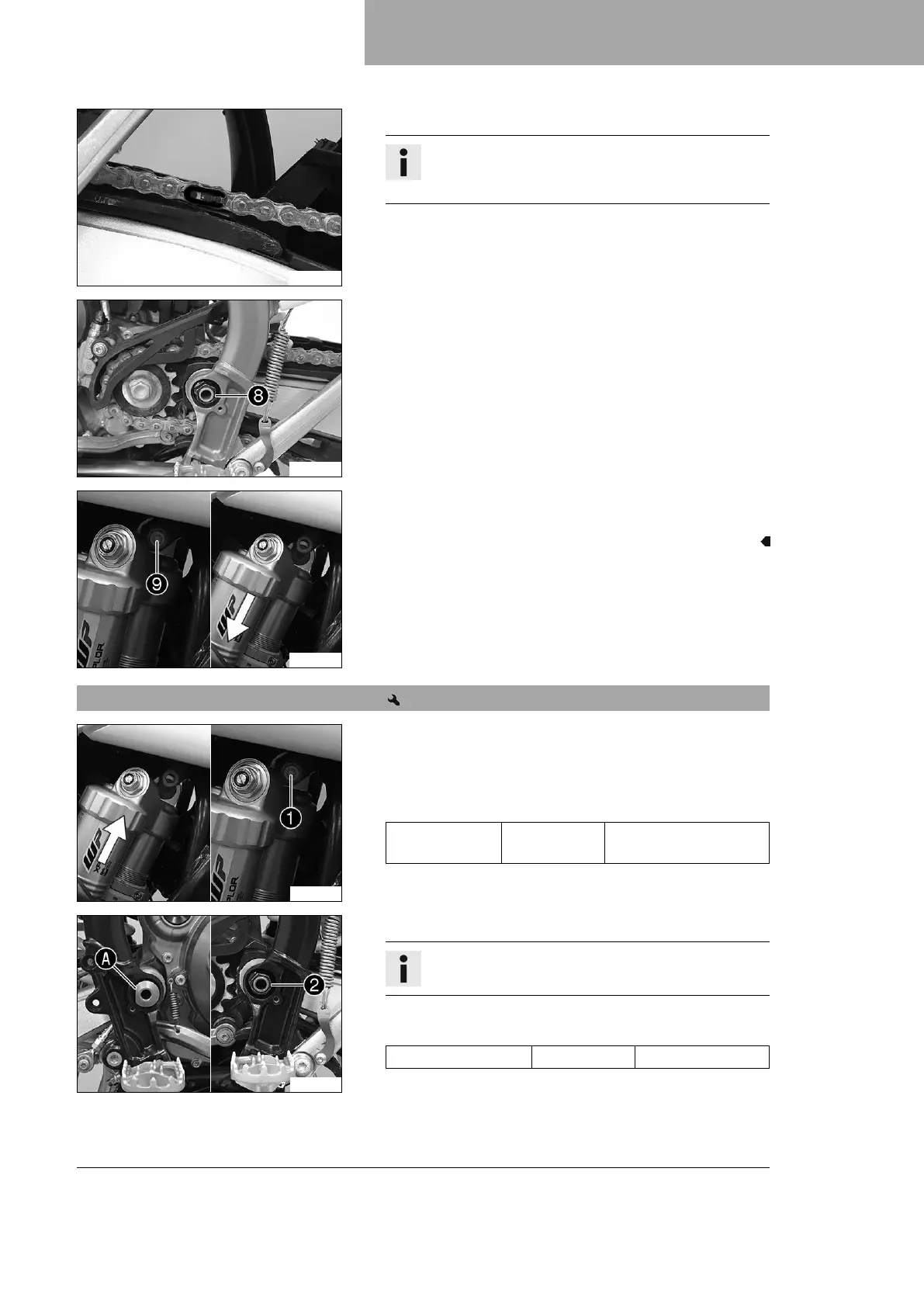

Husqvarna TE 300 User Manual

SERVICE WORK ON THE CHASSIS 12
65
H03696-10
– Remove the connecting link of the chain.
Info
Cover the components to protect them against dam-
age.
– Take off the chain.
S04831-10
–
Remove nut
8
and pull out the swingarm pivot.
– Push the link fork back and secure it against falling over.
S04866-10
–
Hold the shock absorber and remove screw
9
.
– Remove the shock absorber carefully at the bottom.
12.17 Installing the shock absorber
F02304-10
Main work
– Carefully position the shock absorber into the vehicle from
the bottom.
–
Mount and tighten screw
1
.
Guideline
Screw, top
shock absorber
M10 60 Nm (44.3 lbf ft)
Loctite
®
2701™
F02305-10
– Position the link fork and mount the swingarm pivot.
Info
Pay attention to flat area
A
.
–
Mount and tighten nut
2
.
Guideline
Nut, swingarm pivot M16x1.5 100 Nm (73.8 lbf ft)

Husqvarna TE 300 Specifications

General

Displacement	293.2 cc
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP XPLOR-USD, Ø 48 mm
Front Brake	Disc brake
Rear Brake	Disc brake
Seat Height	950 mm
Engine Type	1-cylinder, 2-stroke
Rear Suspension	WP XACT shock absorber with linkage
Dry Weight	105 kg
Fuel Tank Capacity	8.5 liters
