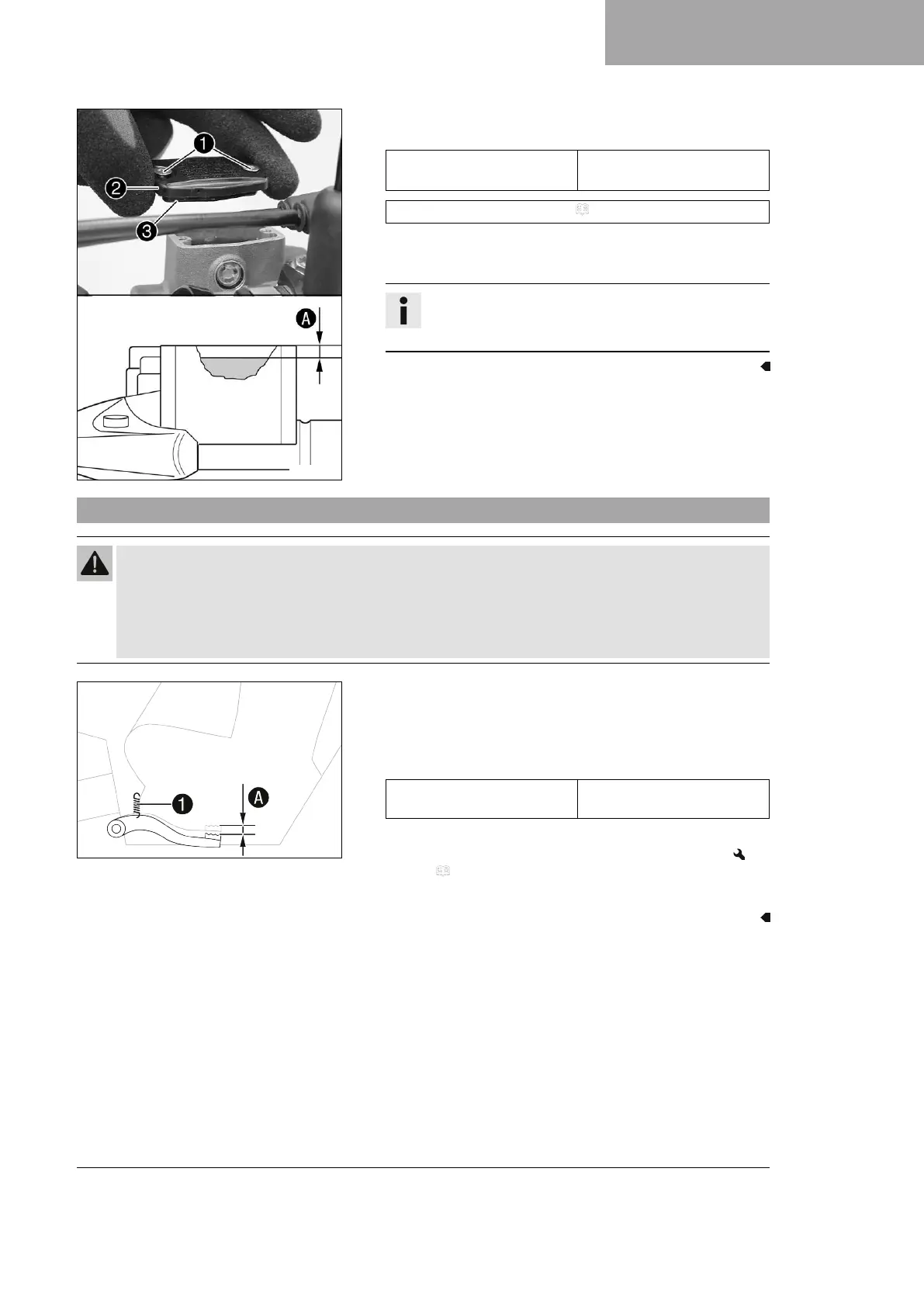

Husqvarna TE 300 User Manual

BRAKE SYSTEM 13
91
S04460-10
–
Add brake fluid up to level
A
.
Guideline
Level
A
(brake fluid level
below reservoir rim)
5 mm (0.2 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 155)
–
Position cover
2
with membrane
3
.
–
Mount and tighten screws
1
.
Info
Use water to immediately clean up any brake fluid that
has overflowed or spilled.
13.7 Checking the free travel of the foot brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the foot brake lever, pressure builds up in the brake system on the rear
brake.
– Set the free travel on the foot brake lever in accordance with the specification.
402026-10
–
Disconnect spring
1
.
– Move the foot brake lever backwards and forwards between
the end stop and the foot brake cylinder piston bracket and
check free travel
A
.
Guideline
Free travel of foot brake
lever
3 … 5 mm (0.12 … 0.2 in)
» If the free travel does not meet specifications:
– Adjust the basic position of the foot brake lever.
( p. 92)
–
Reconnect spring
1
.

Husqvarna TE 300 Specifications

General

Displacement	293.2 cc
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP XPLOR-USD, Ø 48 mm
Front Brake	Disc brake
Rear Brake	Disc brake
Seat Height	950 mm
Engine Type	1-cylinder, 2-stroke
Rear Suspension	WP XACT shock absorber with linkage
Dry Weight	105 kg
Fuel Tank Capacity	8.5 liters
