18 SERVICE WORK ON THE ENGINE
134
V01623-10
–

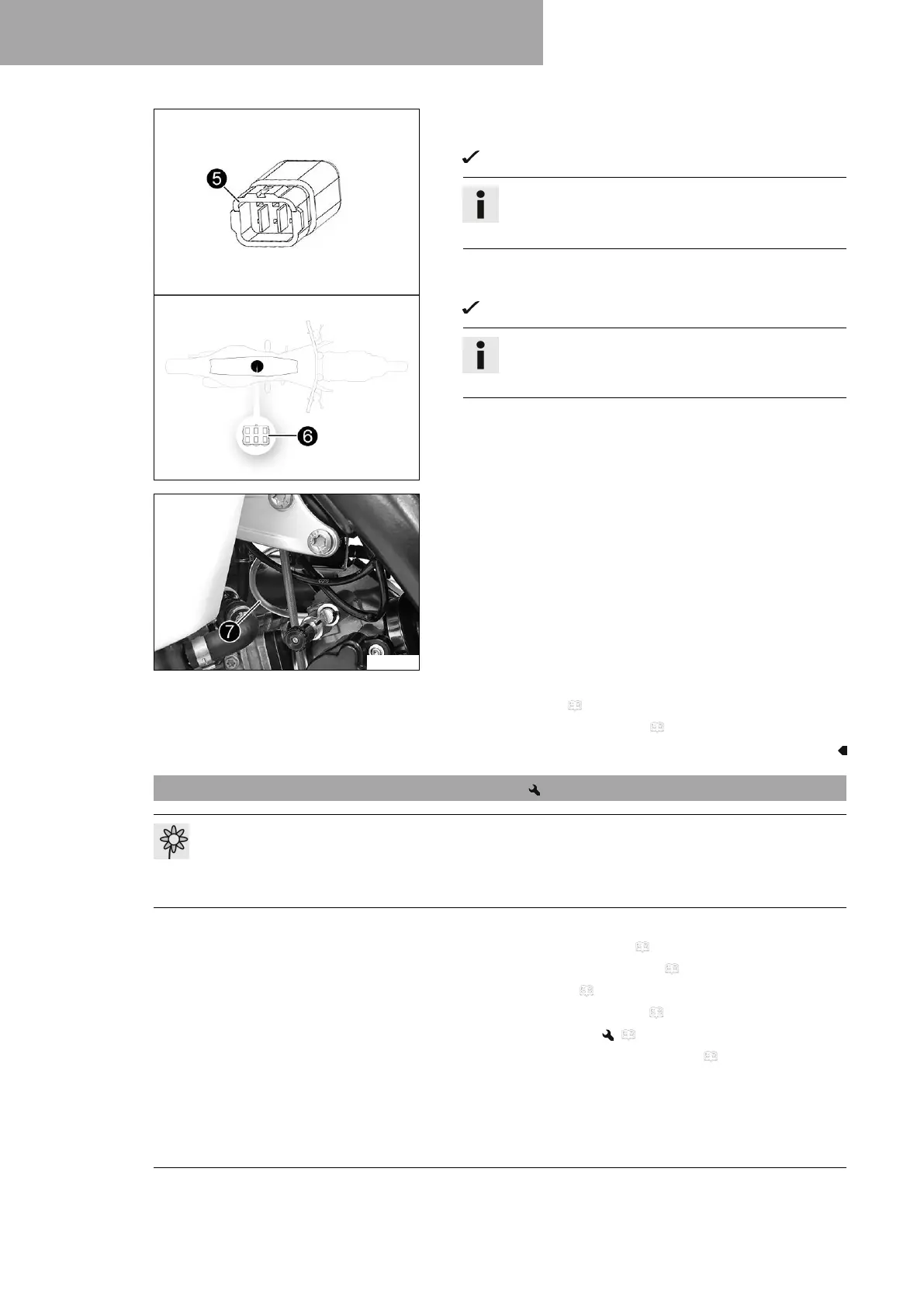

Plug in wake-up connector
5
for priming the oil pump to the
diagnostics connector
6
.
The combination instrument lighting is activated.
Info
The connector is included as part of the motorcycle's
separate enclosure.
– Wait for at least five seconds.
– Release the fixing means from the throttle grip.
The oil pump is timed.
Info
The oil pump is actuated at various speeds.
The procedure is clearly audible.
– Wait until you can no longer hear the oil pump working.
– Disconnect the wake-up connector from the diagnostics con-
nector.
F02321-10
–
Check whether air bubbles are visible in the hose
7
.
» If air bubbles are visible:
– Repeat the entire procedure until air bubbles are no
longer visible.
– Mount protection cap on the diagnostics connector.
– Mount the EFI control unit on the rubber lugs.
Finishing work
– Mount the seat. ( p. 68)
– Install the air filter box cover. ( p. 69)
18.4 Cleaning the oil screen in the oil tank
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance
with the applicable regulations.
Preparatory work
– Remove the main silencer. ( p. 71)
– Remove the air filter box cover. ( p. 69)
– Remove the seat. ( p. 68)
– Remove the right side cover. ( p. 73)
– Remove the fuel tank. ( p. 74)
– Raise the motorcycle with a lift stand. ( p. 56)
