Husqvarna TE 300i US 2021 User Manual

12 SERVICE WORK ON THE CHASSIS
66
H03696-10

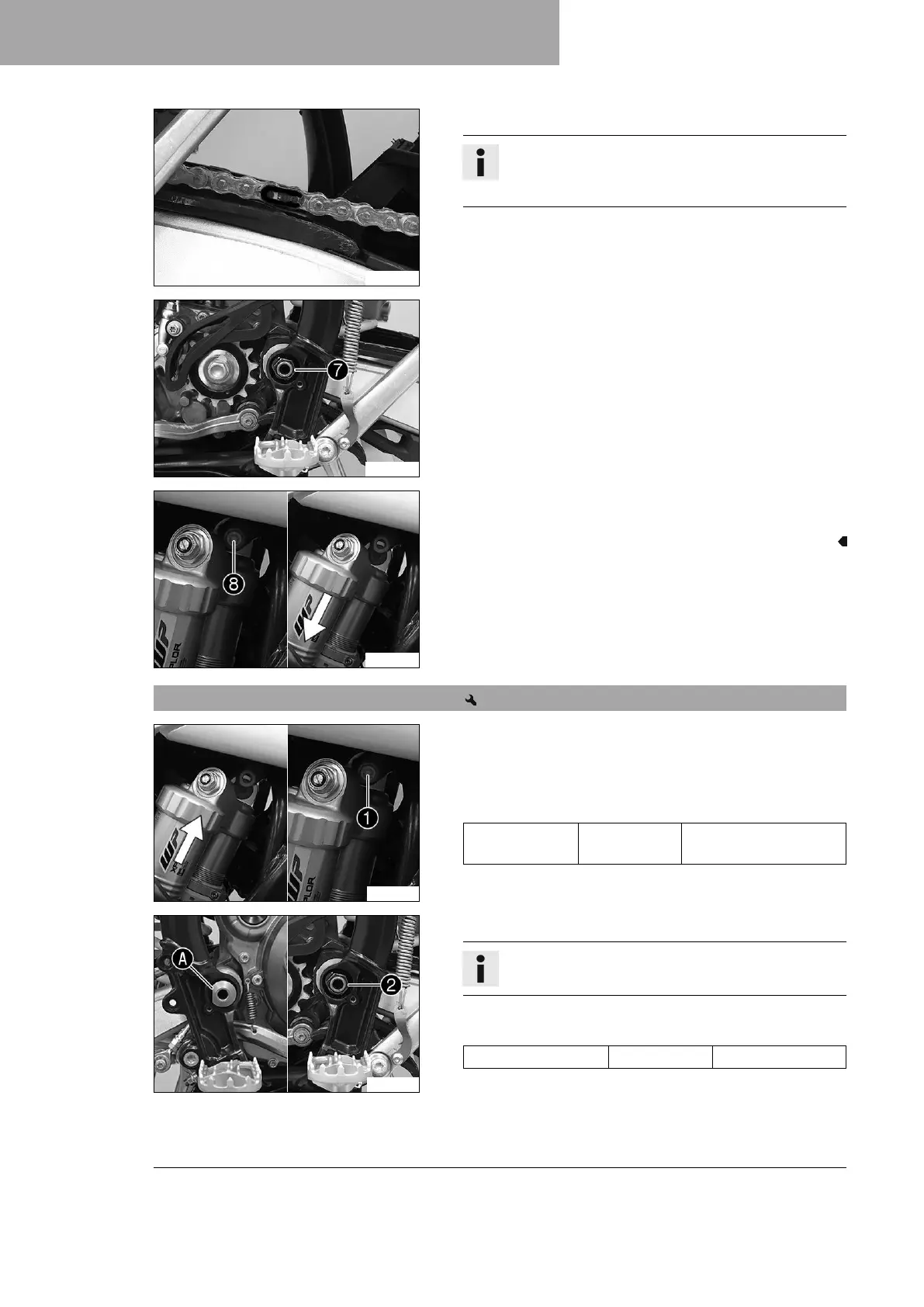

– Remove the connecting link of the chain.
Info
Cover the components to protect them against dam-
age.
– Take off the chain.
H03697-10
–
Remove nut
7
and pull out the swingarm pivot.
– Push the link fork back and secure it against falling over.
H03699-10
–
Hold the shock absorber and remove screw
8
.
– Remove the shock absorber carefully at the bottom.
12.17 Installing the shock absorber
F02304-10
Main work
– Carefully position the shock absorber into the vehicle from
the bottom.
–
Mount and tighten screw
1
.
Guideline
Screw, top
shock absorber
M10 60 Nm (44.3 lbf ft)
Loctite
®
2701™
F02305-10
– Position the link fork and mount the swingarm pivot.
Info
Pay attention to flat area
A
.
–
Mount and tighten nut
2
.
Guideline
Nut, swingarm pivot M16x1.5 100 Nm (73.8 lbf ft)
