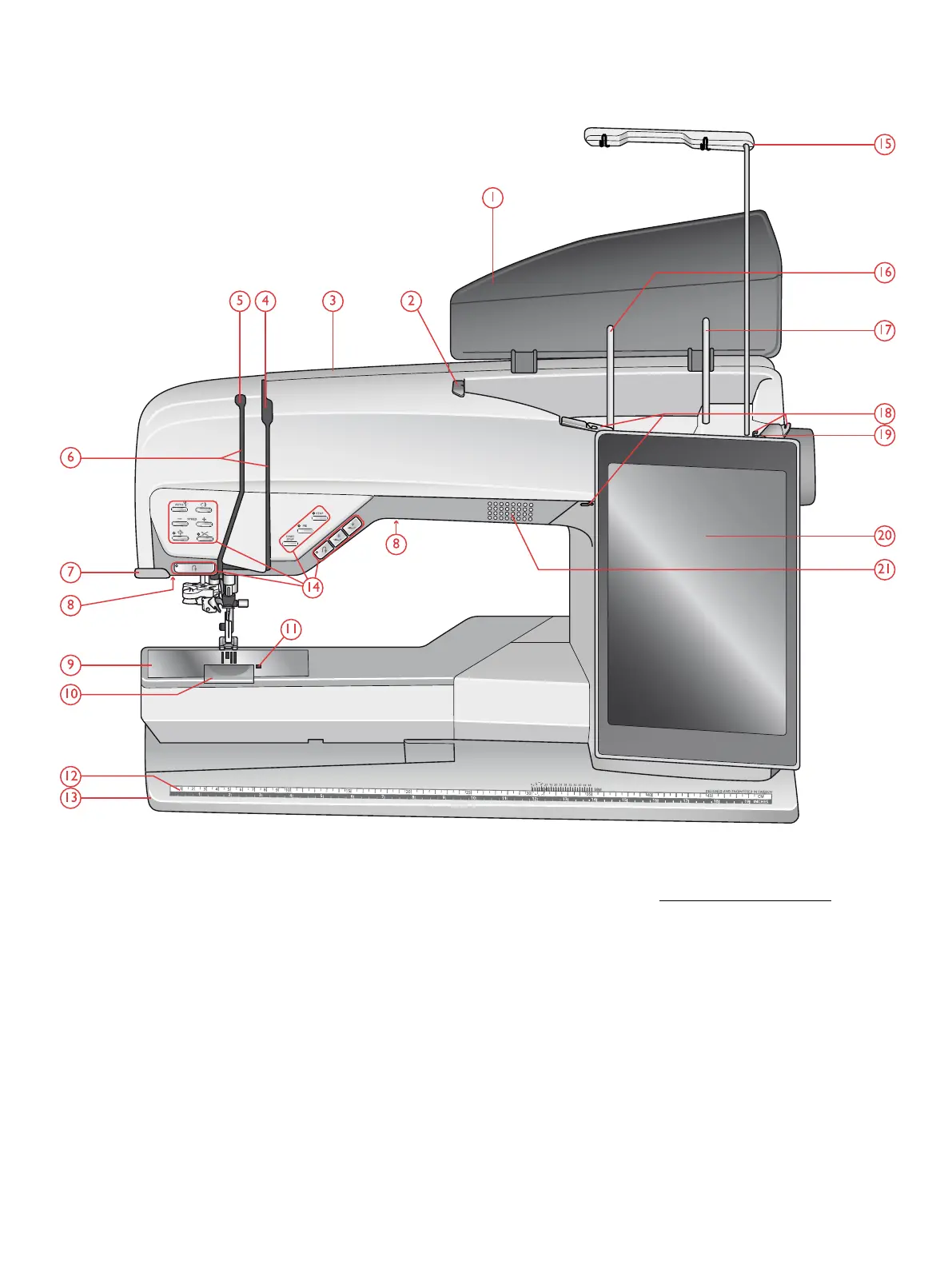

Machine Overview
Front
1. Lid
2. Pre-tension thread guide
3. Threading slot
4. Thread tension discs
5. Thread take-up lever
6. Threading slots
7. Thread cutter
8. LED light
9. Needle plate
10. Bobbin cover
11. Bobbin cover release button
12. Button ruler and built-in tape measure
13. Base plate
14. Function buttons, see Function Buttons, page 13 for
detailed description
15. Telescopic thread guide
16. Main spool pin
17. Auxiliary spool pin
18. Bobbin winding thread guides
19. Thread tension disc for bobbin winding
20. Multi-touch screen
21. Speaker
10 1 Introduction

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Husqvarna VIKING Designer EPIC and is the answer not in the manual?

Husqvarna VIKING Designer EPIC Specifications

General IconGeneral
CategorySewing Machine
BrandHusqvarna VIKING
ModelDesigner EPIC
Stitch Width9 mm
Built-in StitchesOver 1200
USB PortsYes
WiFi CapabilityYes
Needle Positions37
Needle ThreaderAutomatic
Stitch PositioningYes
Automatic Presser Foot LiftYes
Automatic Thread CutterYes
TypeComputerized
Embroidery DesignsOver 650
Maximum Sewing Speed1050 stitches per minute
Built-in MemoryYes
Sewing Space Height140 mm
Sewing Space Width310 mm
Bobbin WindingAutomatic
ScreenLarge Interactive Touch Screen
