P/N 3141959_C 5-3
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
FNGSC-A Self Contained Merchandisers

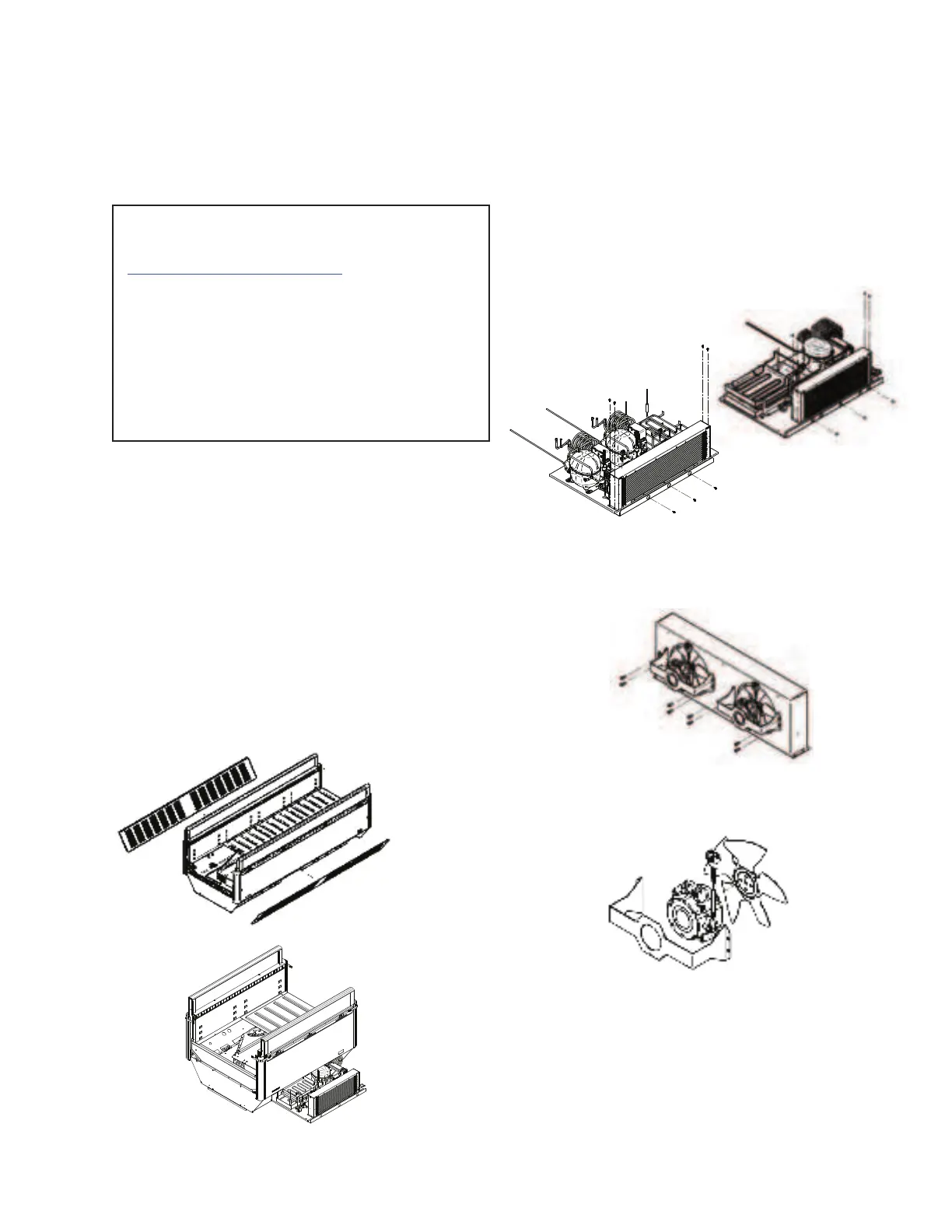

REPLACING CONDENSER MOTOR
Unplug the power cords before servicing.
1. Remove product and place in a refrigerated
area. Make sure the power is off to the
case.
2. Make sure there is no voltage in the
refrigerator. Remove rear lower panel as
shown in the illustration.
3. Slide out the condensing unit. Be careful
using the condensing unit base to pull it
out. Make sure not to stress or interfere
with other parts.
4. Disconnect condenser motor harness.
5. If a flexible extension is used, skip Step 6.
6. Release screws to partially remove venturi
assembly.
7. Release screws to remove condenser fan
assembly.
8. Release motor screws to get to motor /
blade assembly.
9. Change failed part.
10. If the only damaged part is the motor,
remove blade.
11. Reverse the process and make sure
everything is in place and working.
FNGSC4 Shown
GDF 3.0 SHEET METAL SHEET SIZE D
NOTES:
1. APPLICABLE STANDARDS / SPECIFICATIONS
ASME Y14.5M-1994, DIMENSIONS AND TOLERANCES
2. KEY PRODUCT CHARACTERISTICS PER EPR-0006 & IDENTIFIED WITH SYMBOL
3. MATERIAL-
4. REF
THIRD
ANGLE
PROJECTION
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS .XX
u
.03, .XXX
u
.010
ANGLES
u
2
v
SHEET 3 OF 5
P/N
REV
NOTES APPLICABLE UNLESS OTHERWISE SPECIFIED
DO NOT SCALE - DIMENSIONS TO OUTSIDE UNLESS OTHERWISE NOTED
PART TO BE FREE OF BURRS, SHARP EDGES, AND CORNERS
R
FNGSC6A
FNGSC6A COND UNIT
FNGSC6 Shown
FNGSC4 Shown
Parts may be ordered at Hussmann’s Performance
Parts e-store:
https://parts.hussmann.com/
or
Call toll free: 855-487-7778
Required Tools:
• Screwdriver / Philips Tip
• 1/4" Allen Wrench
To Next Page
