Hussmann FNGSC-A - Controls and Adjustments

3-10 STARTUP / OPERATION
P/N 3141959_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com
The controller controls refrigeration temperature
and is factory installed inside the control panel.
Adjust the control to maintain the discharge
air temperature shown above. Measure dis-
charge air temperatures at the center of the
discharge louver.
Defrosts are time initiated and temperature
terminated for self-contained models. The defrost
settings are factory set as shown above.
To ensure a thorough defrost, defrost must be
terminated by the temperature termination
setting — not by time.
Refrigeration Controls
Defrost Controls
Notes:
The cases are pre programmed with
AP2 as default, which is low temp
frozen food application.
If the customer needs Medium temp
application, the default settings are to
comply with NSF 7 Type 1.
Model Application Product Application Discharge Air Temperature
Tripping
Dif ( ° F )
Controller
Set Point ( ° F )
Defrost Frequency
( per day )
Type of
Defrost
Temp.
Termination
Failsafe
Time ( min )
AP1
Med Temp - DOE 25 ° F to 43 °F ( -4 °C to 6 °C ) 18
24 to 25 ° F ( -4 to -3 ° C )
45 ° F ( 7 ° C )
**AP1
Med Temp - NSF 7 Type 1 20 ° F to 38 °F ( -6 ° C to 3 °C ) 18
18 to 20 ° F ( -7 to -6 ° C )
45 ° F ( 7 ° C )
**AP2
Frozen Food - DOE ´-19 to -9 ° F (-28 to -22 ° C ) 10
´-20 to -19 ° F ( -29 to -28 ° C )
38 ° F ( 3 ° C )
AP1
Med Temp - DOE 22 ° F to 46 ° F ( -5 °C to 8 °C ) 24
21 to 22 ° F ( -6 to -5 ° C )
45 ° F ( 7 ° C )
**AP1
Med Temp - NSF 7 Type 1 16 ° F to 40 ° F ( -8 ° C to 4 °C ) 24
15 to 16 ° F ( -9 to -8 ° C )
45 ° F ( 7 ° C )
**AP2
Frozen Food - DOE ´-19 to -9 ° F (-28 to -22 ° C ) 10
´-20 to -19 ° F ( -29 to -28 ° C )
38 ° F ( 3 ° C )
AP1
Med Temp - DOE 26 ° F to 44 ° F ( -3 °C to 7 °C) 18
24 to 26 ° F ( -4 to -3 ° C )
45 ° F ( 7 ° C )
**AP1
Med Temp - NSF 7 Type 1 20 ° F to 38 °F ( -6 ° C to 3 °C ) 18
18 to 20 ° F ( -7 to -6 ° C )
45 ° F ( 7 ° C )
**AP2
Frozen Food - DOE ´-19 to -9 ° F (-28 to -22 ° C ) 10
´-17 to -16 ° F ( -27 to -26 ° C )
38 ° F ( 3 ° C )
FNGSC4A 3 50
Hotgas FNGSC6A 3 50
50FNGSC8A 3
Controls and Adjustments

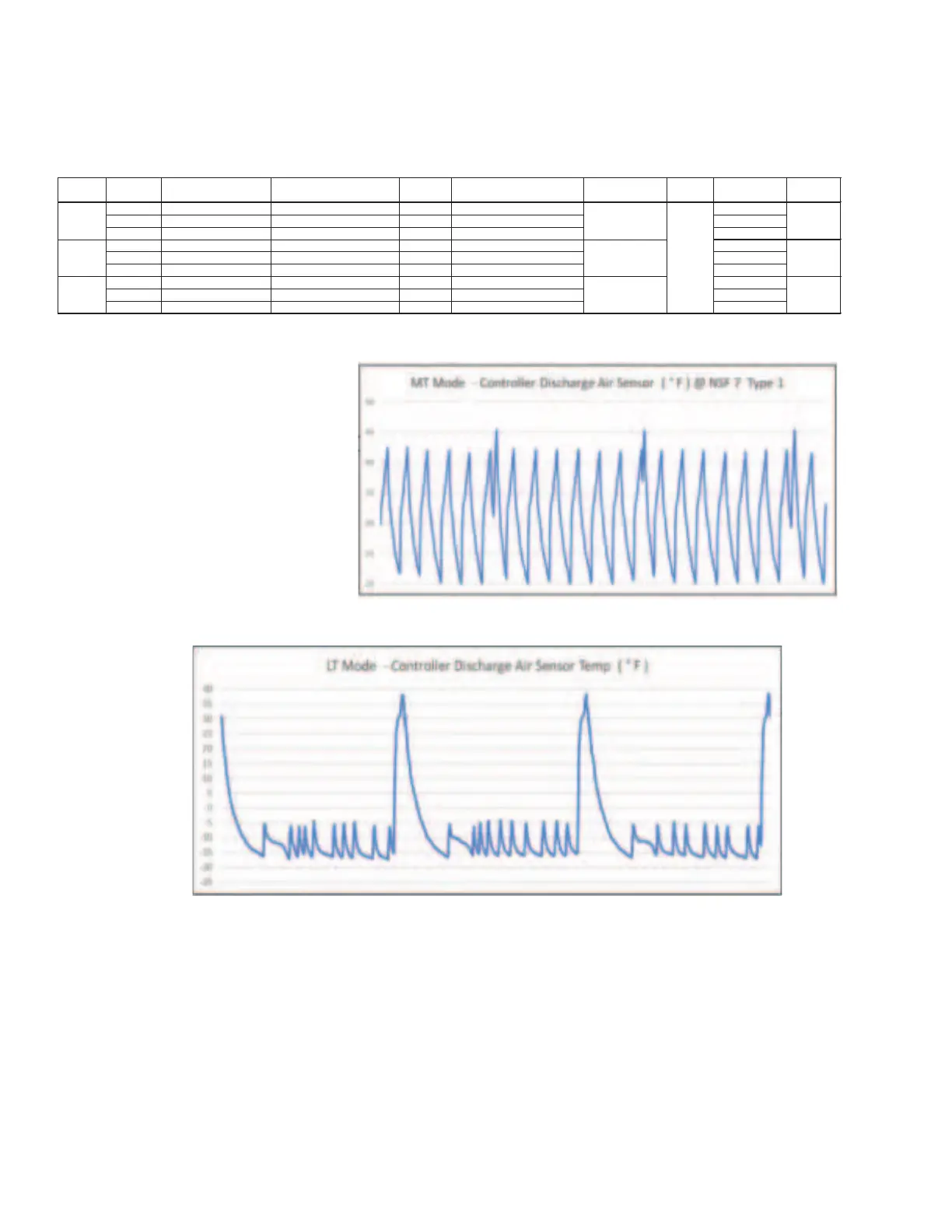

Example of FNGSC8A (Medium Temp.)
Example of FNGSC8A (Low Temp.)
