P/N 3141959_C 3-9
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
FNGSC-A Self Contained Merchandisers
Discharge Air Sensor Location FNGSC4A
GDF 3.0 SHEET SIZE D
NOTES:
1. APPLICABLE STANDARDS / SPECIFICATIONS
ASME Y14.5M-1994, DIMENSIONS AND TOLERANCES
2. KEY PRODUCT CHARACTERISTICS PER EPR-0006 & IDENTIFIED WITH SYMBOL
3. MATERIAL-
4. REF -
SHEET 1 OF 2
3151908
A
INSTRUCTION-SENSO
R LOC FNGSC4A
P/N
REV
THIRD
ANGLE
PROJECTION
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES.
R
REVISION HISTORY
REV ECN DATE REVISION DESCRIPTION REV BY CHKD BY APPR BY
A ECN-NPD-0004536 2021/07/05 RELEASED FOR PRODUCTION VRS OSS OSS
A

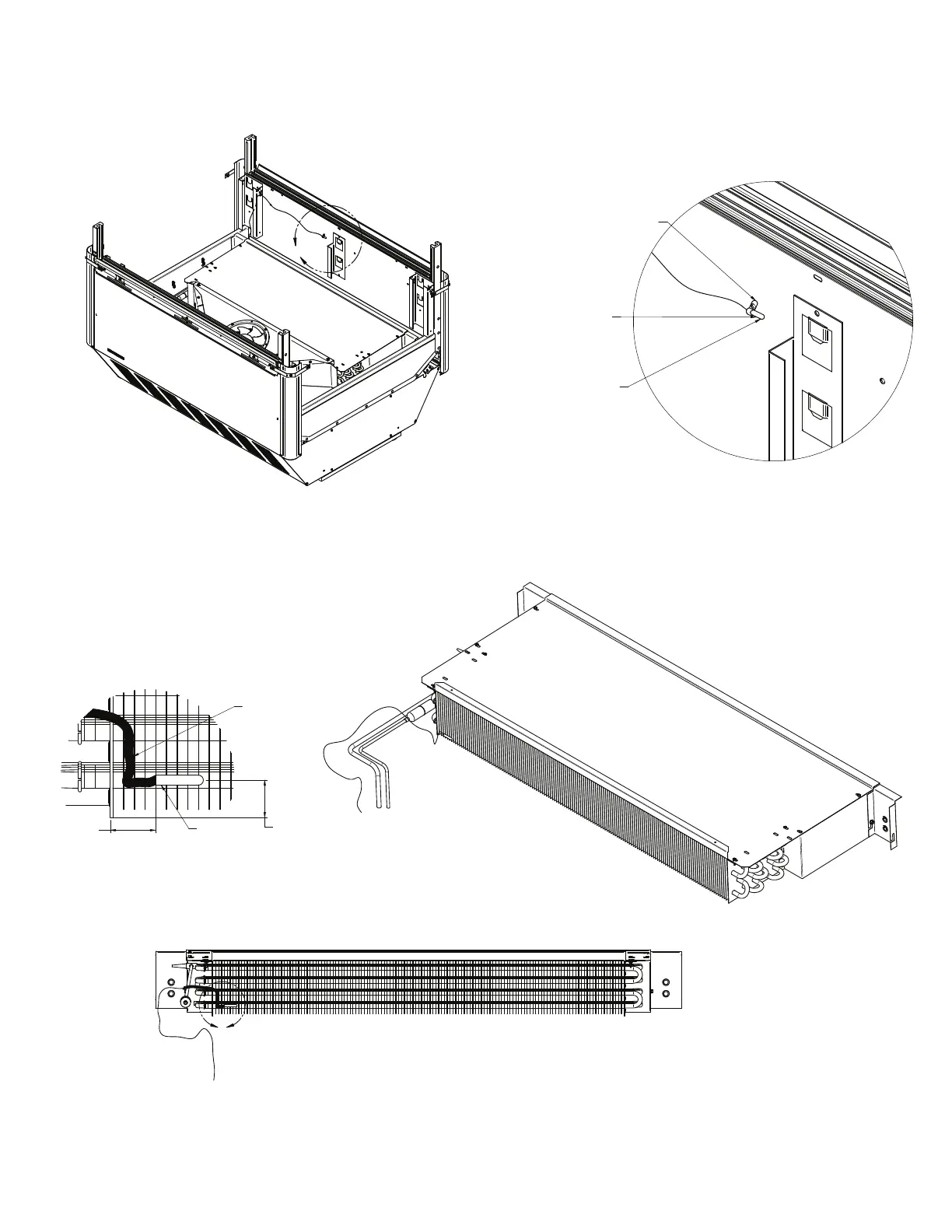

DETAIL A
SECURE DISCHARGE SENSOR WITH 0317371 CLAMP
& 0130711 SCREW SLFDRILL 8-18X12 HX
3023554
SENSOR-NTC 4 METER GREEN
LOCATE DISCHARGE SENSOR
ON THE LEFT SIDE DIMPLE
ISOMETRIC VIEW
FRONT VIEW
SOME TUBES WERE REMOVED FOR CLARITY
B
DETAIL B
1.25
SECURE SENSOR
WITH PLASTIC TIE
0257404 TUBE 3/8 ID VINYL
TO PROTECT SENSOR CABLE
(10 INCHES LONG)
.87
SAME HIGHT OF THE
LOWEST TUBES ROW
K
K
K
Defrost Sensor Location FNGSC4A
