Hussmann Q3 - Leveling and Shim Adjustment

10
Installation (cont’d)
Leveler Adjustment

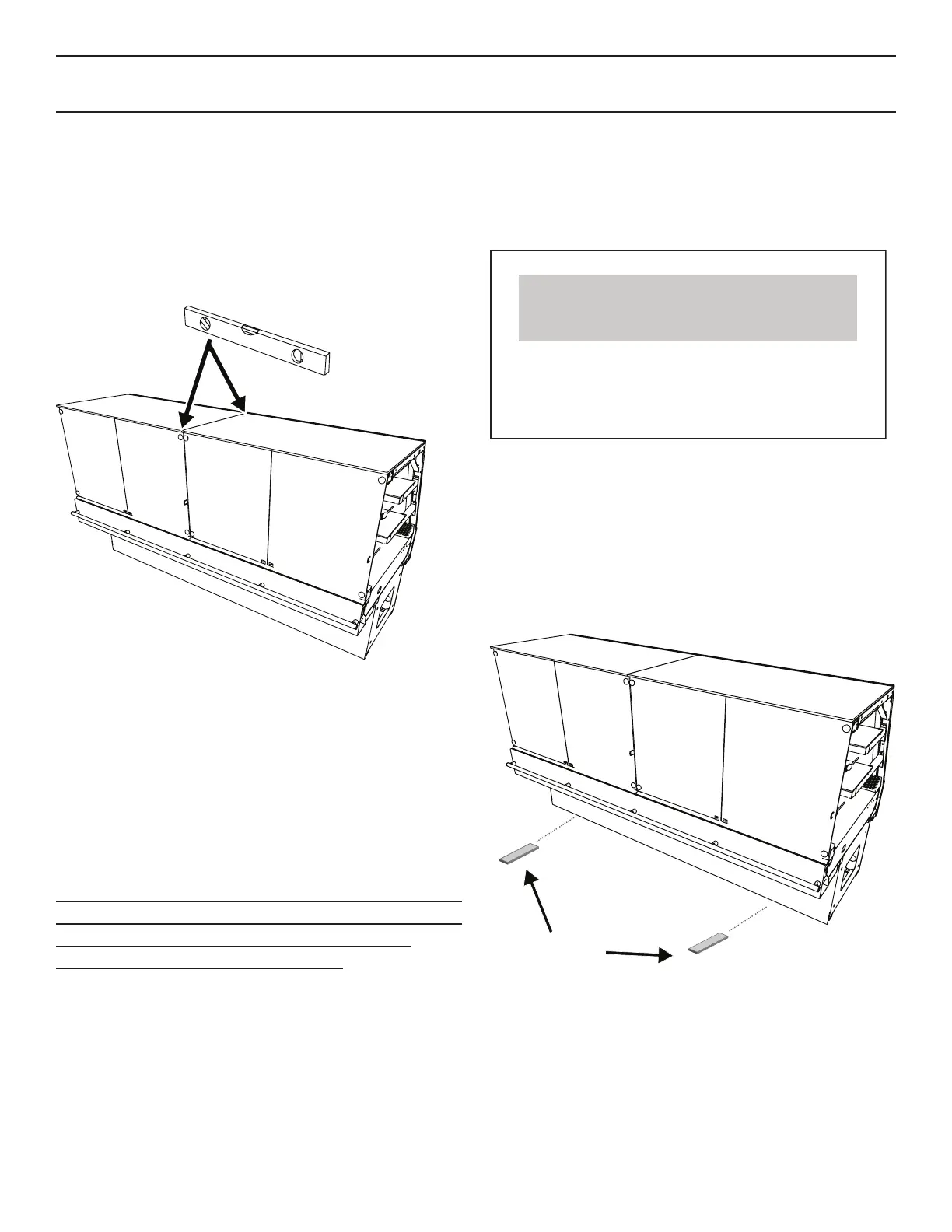

Position the case at the highest point. Set a long
magnetized level (4ft [1220 mm] or more) on
either underneath the deck or on top of the case.
Ensure to level case from front to back and side
to side.
Level
(4 ft[1220mm])
Shim The Case
Use shims at each corner of the case to level
out any discrepancies in order to optimize case
performance and proper drainage.
Note: Shims are not Factory supplied. Contractor
should carry available components. Metal Shims
are recommended for use to eliminate any
deterioration from shims over time.
Note:Toavoidremovingconcreteooring,begin
line up levelling from the Highest point of the
storeoor.
NOTICE
Longer length cases may require shims
along the center portion of the case to
maintain proper case performance and
drainage.
Shim
