Miatech Fogging System
1
SOP MIATECH FOGGING SYSTEM
Q3-MV-BC-R SETUP AND INSTALLATION
Be advised, for case lineups consisting of two 8-foot cases (or other compatible combinations), the
fogger system may be shared over 2 cases to reduce cost. One case will be designated as the primary
case and will house the fogger system. Any secondary case will be directly adjacent to the primary case
and will share case control, fogging control and apparatus. A 12 foot case will always have a dedicated
fogging system.
These are the notable differences bet ween the primary and the secondary case.
 The primary case will house the Danfoss AK-CC 210 controller (orange arrow) in the rear panel. The
secondary ca se will not have a controller.
 The primary case will have a large removeable access panel on the lower rear skirt (blue arro w). Behind
the access panel, there will be a tray to slide the fogger system into along with a set of GFCIs to plug both
the fogger system and the heated nozzles. The secondary case will not have an access p anel, tray or GFCIs
underneath the case.
 The primary case will house the system clock and heater relay behind the rear controller panel. There will
be no clock or relay on the secondary case.
 The primary case will have 2 rock er switches (green arrow), one for lights, the 2
nd
for fogger power. The
secondary ca se will have 1 rocker switch for lights only.

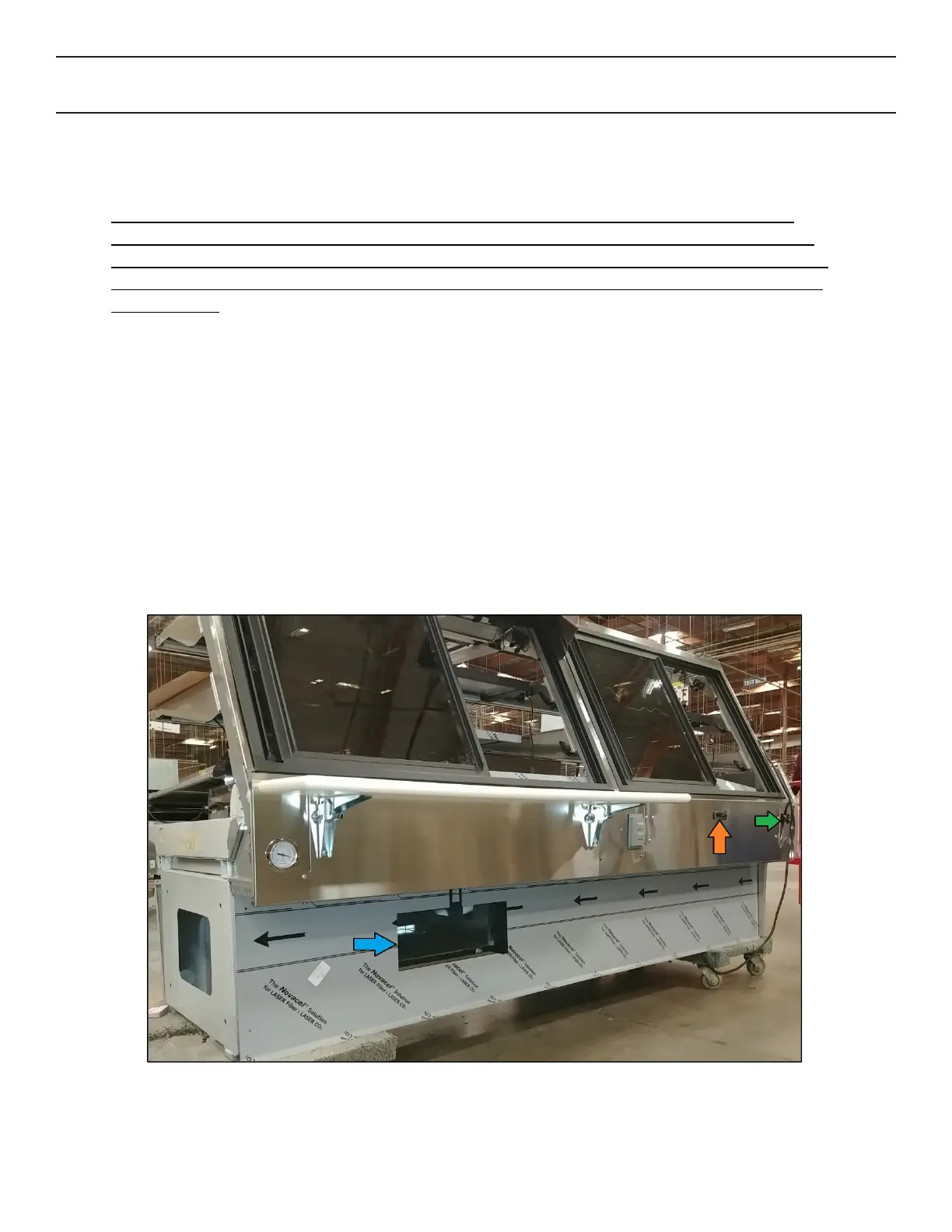

Figure 1: An 8 foot primary case as viewed from the rear.
