Hussmann Q3 - Electrical System Overview; Electrical Data and Connections

20
Electrical
Merchandiser Electrical Data
Technical data sheets are shipped with this
manual. The data sheets provide merchandiser
electrical data. Refer to the technical data sheets
and merchandiser serial plate for electrical
information.
Electrical Connections
All wiring must be in compliance with NEC and
local codes. All electrical connections including
both supply circuits are to be made in the electri-
cal J-Box.
ALWAYS CHECK THE SERIAL PLATE FOR
COMPONENT AMPERES
Field Wiring
Field wiring must be sized for component am-
peres stamped on the serial plate (refer to pg 16
for location). Actual ampere draw may be less
thanspecied.
Identication of Wiring
Leadsforallelectricalcircuitsareidentiedby

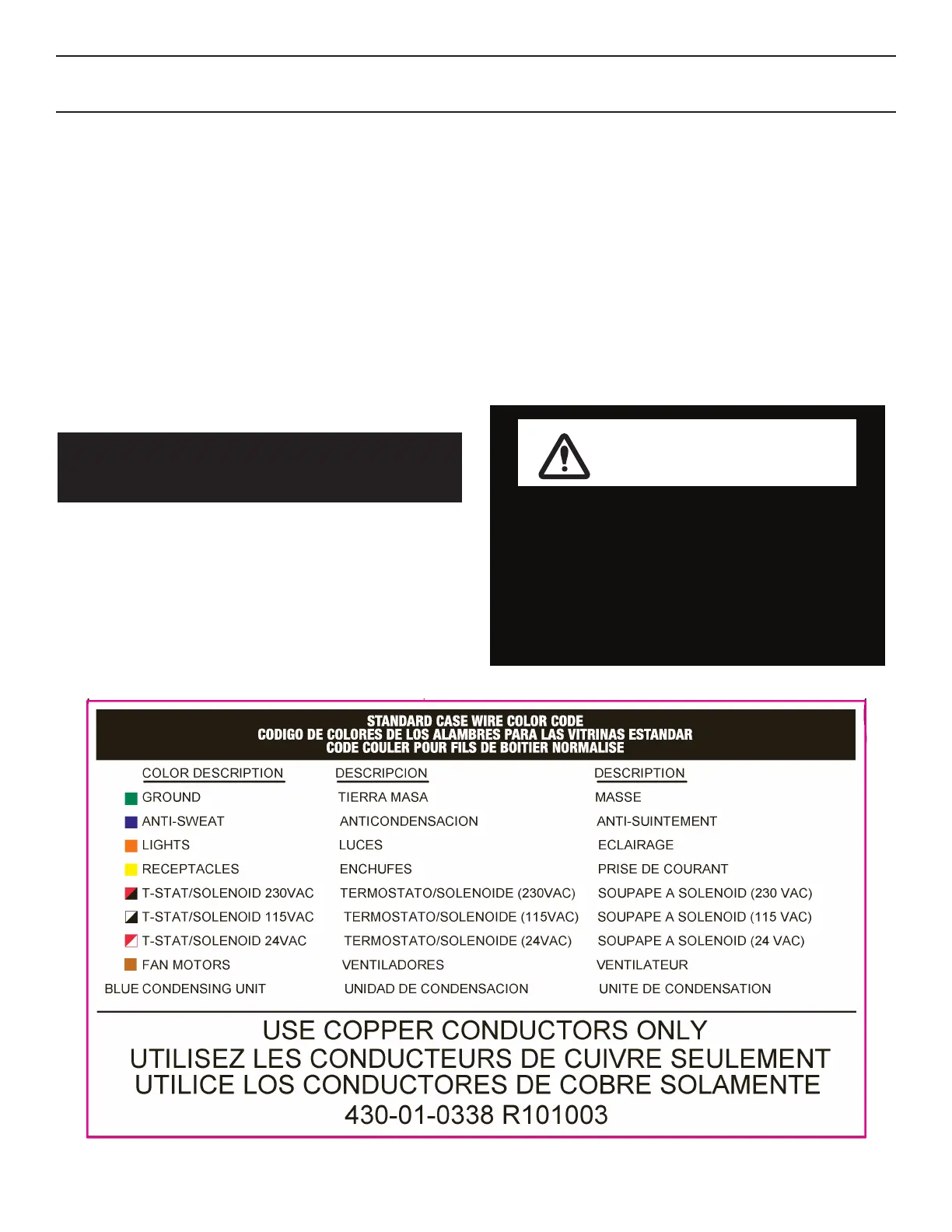

colored plastic bands. These bands correspond
to the color code sticker (shown below) located
inside the merchandiser’s wireway cover.
WARNING
--LOCK OUT/ TAG OUT--
To avoid serious injury or death from electrical
shock, always disconnect the electrical power
at the main disconnect when servicing or
replacing any electrical component. This
includes, but is not limited to, such items as
doors, lights, fans, heaters, and thermostats.
