SECTION 1
Temperature Sensor
If a separate temperature sensor is to be used it must be mounted where it will monitor
temperature changes of the air between the transducer and the liquid. This is usually adjacent
to the transducer, but should not be in direct sunlight and should be protected from wind chill.
35
TEMPERATURE SENSOR RTS 2B
175
25
34 ref
3/4" BSPP
-
12
50
INTERNAL
EARTH
UNIMPORTANT
+
POLARITY
85 dia
LOCK
SCREW
9 dia
33 HEX
HOUSING: CAST IRON BLACK EPOXY PAINT
CLASSIFICATION EEx e II T6/IP 65
PROBE: 316SS
52
30 dia
EXTERNAL
EARTH
10 dia.
16
25
50
110
50
75 dia.
Cable entry
M20 x 1.5
33 a/f hex
Process connection
M20 x 1.5
HOUSING: POLYCARBONATE IP65
PROBE: 316SS
blue red
Electrical connections
no connection
Note that the connections are not polarised
60
TEMPERATURE SENSOR RTS-2

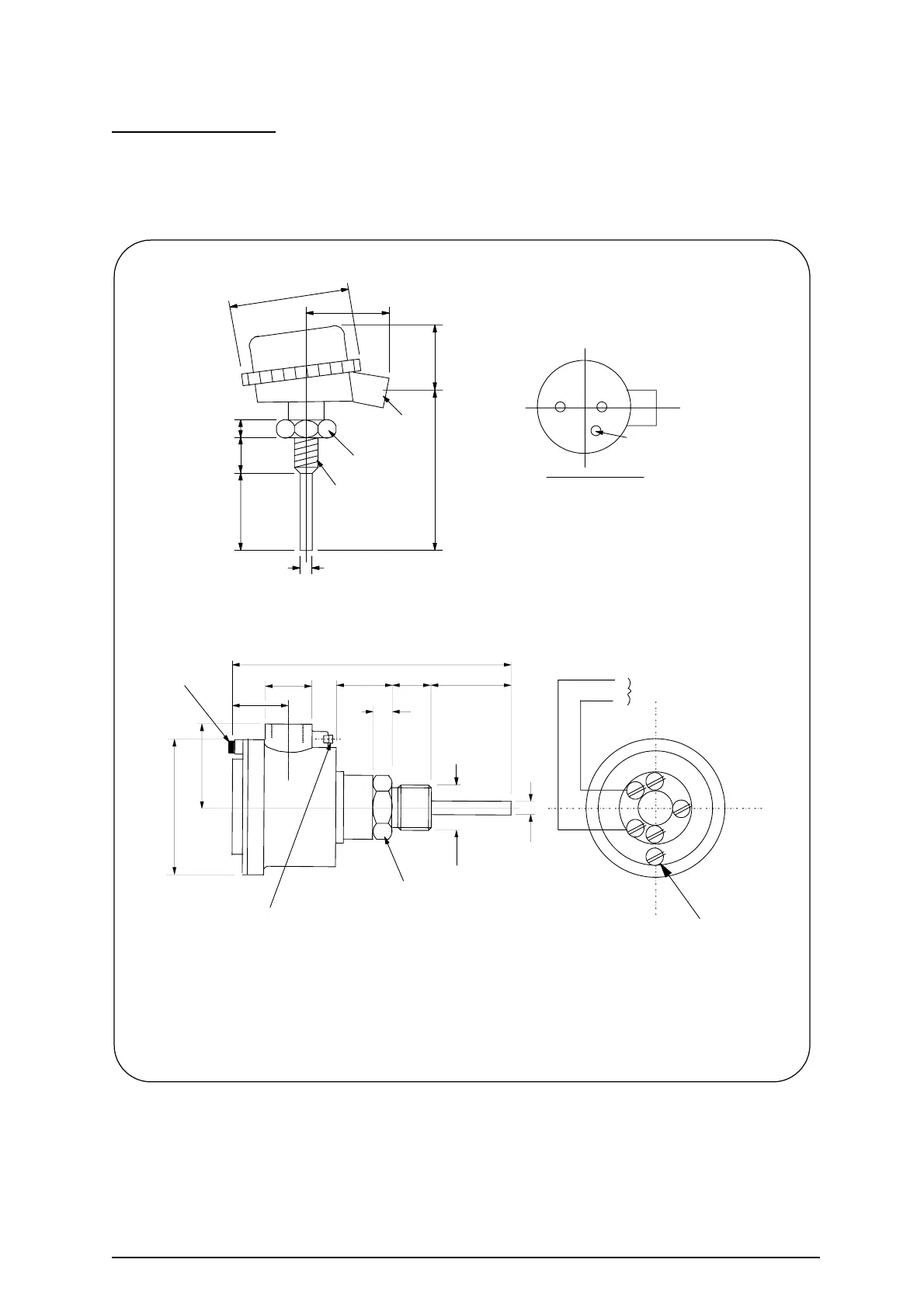

Figure 9 Temperature sensor dimensional drawing
Ref: MINIFLEX LR MANUAL Rev. 0 9
