SECTION 1
INSTALLATION
Transceiver For ATEX hazardous areas refer to Appendix 3.
Enclosure mounting
Secure one of the three fixing screws provided with the instrument 30mm below the centre of
where the top of the instrument is to be located. This fixing screw will need to be left 4mm
proud of the surface allowing the instrument to be hung from this point. The instrument is
then secured in place by 2 more screws using the two mounting slots exposed when the
terminal cover is removed. DO NOT use excessive force when tightening the fixings and
avoid any distortion of the enclosure.
Ensure that the mounting surface is not subject to vibration and is not in close proximity to
high voltage cables, contactors or drive controls. The unit should not be mounted in a
confined space where temperatures may exceed the normal working temperature. If the unit
is mounted outside, it must be protected from direct sunlight or severe weather conditions.
Select appropriate knockouts in the base of the enclosure and fit appropriate cable glands to
maintain the IP65 rating.
(MODIFY)
BACK
INCREASE
DIGIT
OPTION
/ DIGIT
RELAY 1
RELAY 3
ECHO
LEVEL CONTROLLER
M
MINIFLEX LR
ENT
HYCONTROL LTD, ENGLAND
TEL :+44(0)1527 406800 Website: www.hycontrol.com
213.0
106.5
185.0
∅
5.4
10
198.0
31.00
MOUNTING POINT 1
FOUND ON REAR
137.0
MOUNTING POINT 2 & 3
(REMOVE TERMINAL COVER)
KNOCKOUTS FOR 1 HOLE 16mm AND 5 HOLES 20mm
∅∅
NOTE: - All dimensions are shown in mm

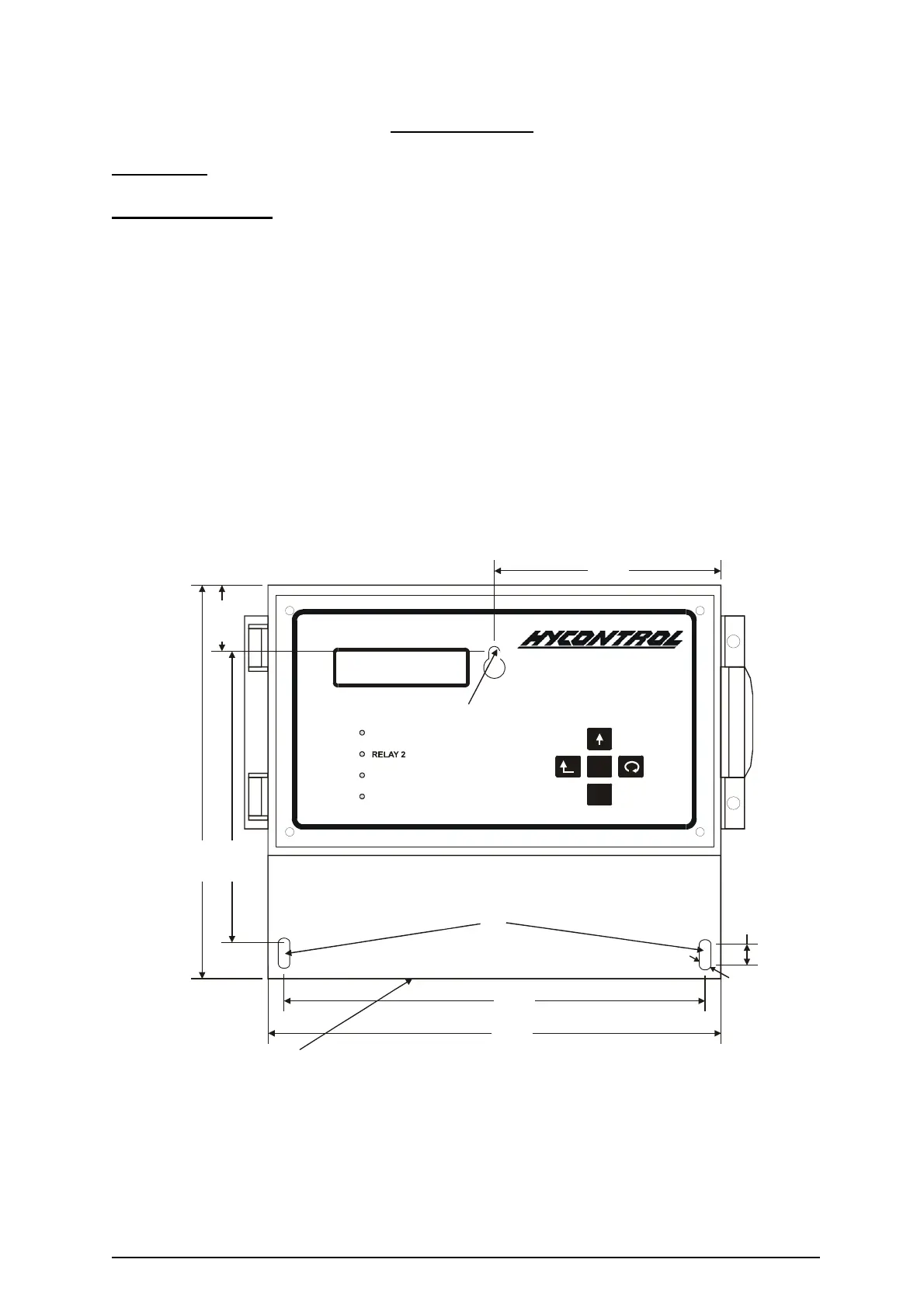

Figure 1: Enclosure dimensional & mounting drawing
Ref: MINIFLEX LR MANUAL Rev. 0 2
