Hycontrol MINIFLEX LR User Manual

APPENDIX 3
Installation Instructions for ATEX Transducer in Hazardous Area
102
M20 x 1.5
50 dia
M32 x 1.5
62
26
92 dia
10m cable 6.0 dia
20
Mounting
face
Optional
isolation kit
AK3730
All dimensions are in mm unless stated.
Fit the isolation kit to minimise any ringing
through metal mounting surfaces

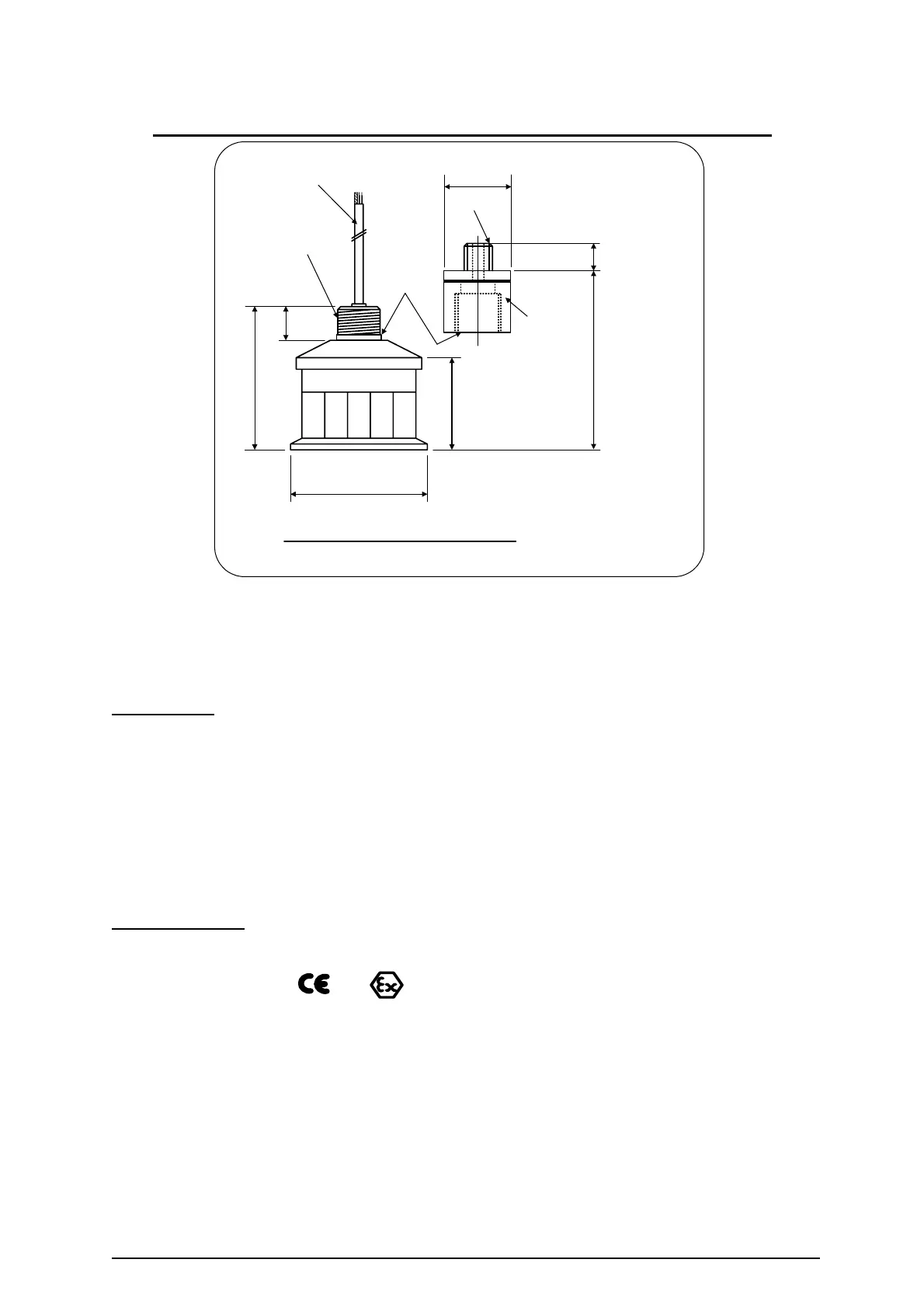

Outline drawing RYV/RYT/RWV/RWT15
130 assembled
height
Refer to the appropriate section for:-
Transducer mounting guidelines - Page 5.
Cable connections - Pages 3 & 4.
Cable extensions - Page 8.
Specification
Type: RYV/RYT/RWV/RWT15
Frequency: 41.5 kHz
Beam angle: 12 degrees @ -3dB
Body material: Solvay Solef 6008 (PVDF)
Face material: RYV/RYT Glass reinforced epoxy
RWV/RWT Solef 6008
Temperature range: -40ºC to + 60ºC
Maximum Range: 10m (depending on application)
Typical marking
Manufacturer: Hycontrol Ltd.
0038
II 2 GD
Group / category:
EC certification: KEMA 04ATEX1124X
Type: RYV/RYT/RWV/RWT15
Type of protection: EEx m II T6
Tamb: -40ºC to + 60ºC
Degree of protection: IP68
Maximum input: 6W
S/No; xxxxxxxx
Mfg. year: xxxx
Ref: MINIFLEX LR MANUAL Rev. 0 55
