Hycontrol MINIFLEX LR User Manual

APPENDIX 1

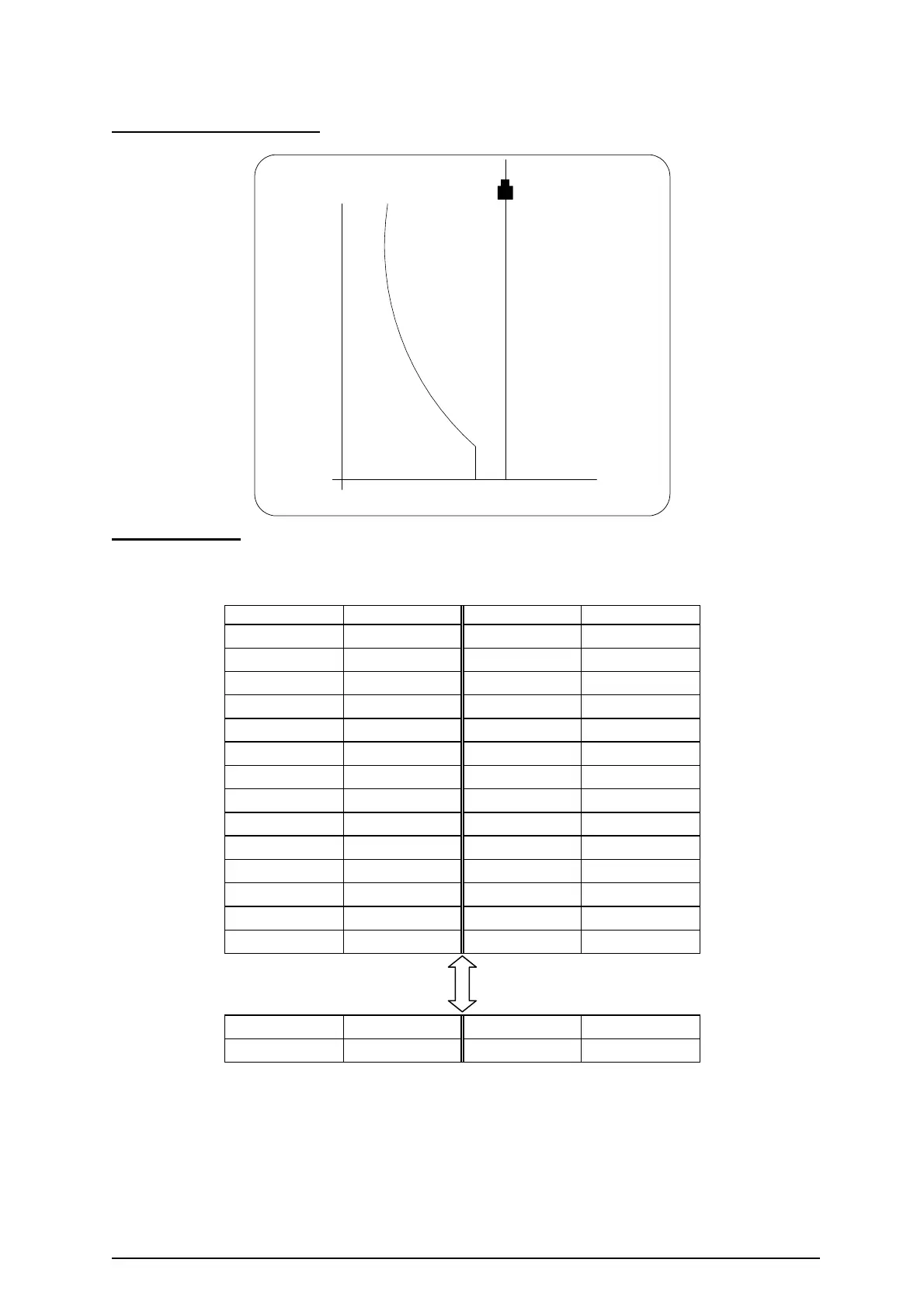

Example: Vessel Mapping
5.500
5.000
4.500
4.000
3.500
3.000
2.500
2.000
1.500
1.000
0.500
0.000
Vessel (or channel)
symmetrical
about c/1
Transducer
Level in Metres
Required values
Use the custom table to create a volume profile for a non standard tank with a capacity of
8500 litres. Each of the points is entered as a Level in metres against % Volume.
Point Level (m) Volume in Units % Volume
1 0.000 0 000.0
2 0.500 0 000.0
3 1.000 612 007.2
4 1.500 1368.5 016.1
5 2.000 2320.5 027.3
6 2.500 3187.5 037.5
7 3.000 4122.5 048.5
8 3.500 5057.5 059.5
9 4.000 5992.5 070.5
10 4.500 6800.0 080.0
11 5.000 7607.5 089.5
12 5.500 8500.0 100.0
13 _ . _ _ _ Not used _ _ _ . _
14 _ . _ _ _ Not used _ _ _ . _
23 _ . _ _ _ Not used _ _ _ . _
24 _ . _ _ _ Not used _ _ _ . _
NOTE: Points 13 to 24 not used - leave at factory default value.
Leave Pr.6.2 DisplayUnits at the default setting of Litres to display the readings in litres and
change Pr.6.3 MaxDsp x 100 = 85.0 to scale the 0 – 100% volume value 0 to 8500 litres.
Ref: MINIFLEX LR MANUAL Rev. 0 52
