Hyd-Mech M-16 - Coolant Group

Pg 6. 14

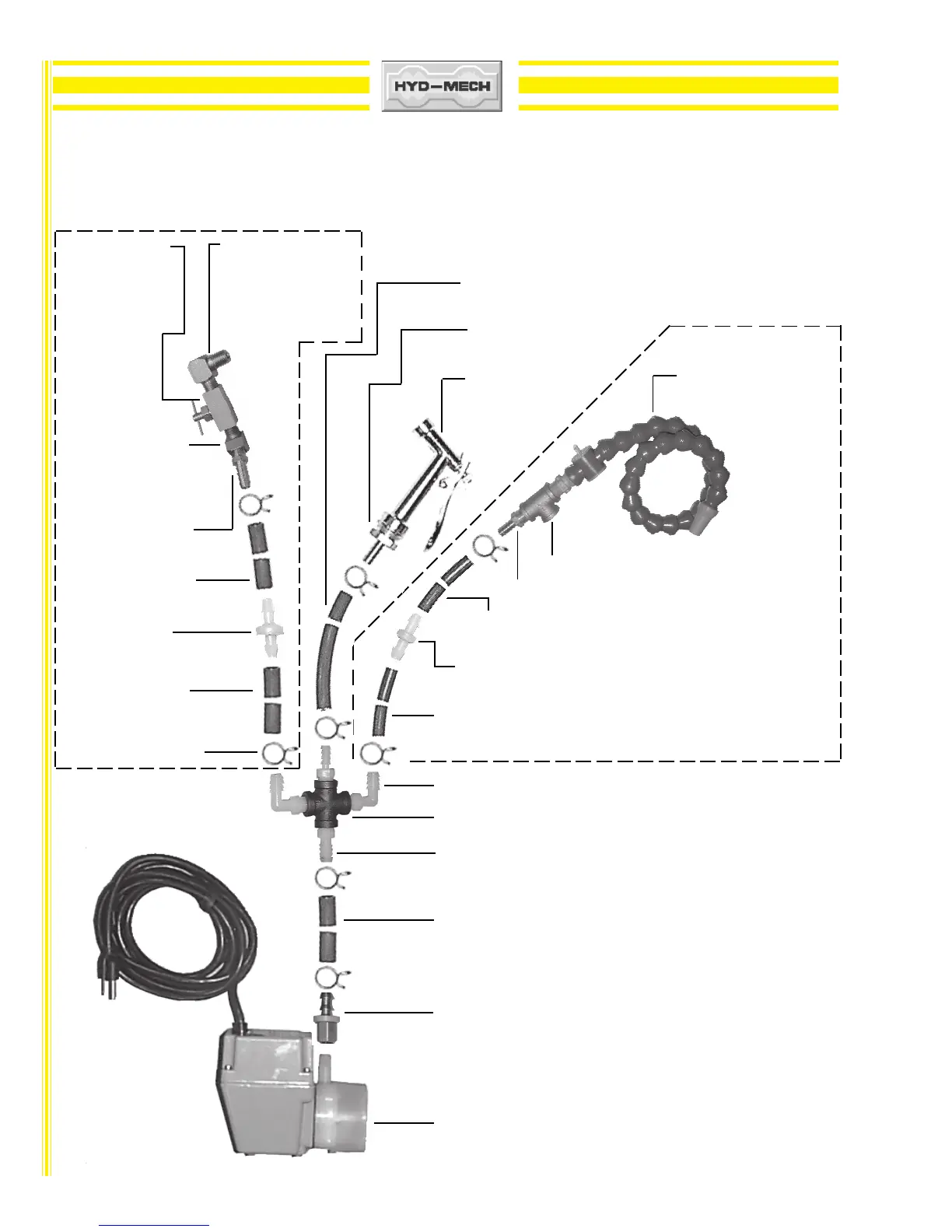

2E-NT COOLANT PUMP
N6MCB4 3/8" HOSE BARB - 1/4" MNPT (2)
N6MEB4 90ELBOW (2) 3/8" BARB - 1/4"MNPT
BPCROSS-04 1/4" FNPT BMI CROSS
726-6B 1/4" FNPT - 3/8" HOSE BARB
RVH-6 3/8" HOSE x 7'
COOLCOOL
COOLCOOL
COOL
ANT GROUPANT GROUP
ANT GROUPANT GROUP
ANT GROUP
598 SNAPLOC ASSY
HOSE ASSEMBLY
19CV0037VK CHECK VALVE
RVH-6 3/8" HOSE x 5'1"
TT
TT
T
O OUTFEEDO OUTFEED
O OUTFEEDO OUTFEED
O OUTFEED
FENCEFENCE
FENCEFENCE
FENCE
RVH-6 3/8" HOSE x 5"
101-C 3/8" FNPT T (attached to fence)
125-6B 3/8" HOSE BARB - 1/4" MNPT
222.CB
WASH HOSE GUN
590-06-12
3/8" BARB - 3/4-8 MALE
RVH-6
3/8" HOSE x 20'
RVH-6
3/8" HOSE x 19'7"
19CV0037VK
CHECK VALVE
RVH-6
3/8" HOSE x 5"
2101-4-4 ELBOW
1/4" MNPT -
3/8" HOSE BARB
(attached to idler
guide arm)
3103-B
NEEDLE VALVE
TT
TT
T
O IDLER GUIDE ARMO IDLER GUIDE ARM
O IDLER GUIDE ARMO IDLER GUIDE ARM
O IDLER GUIDE ARM
080-035
SPRING CLAMP (8)
2101-4-4 ELBOW
45 DEG 1/4" MNPT
-1/4" FMNPT
125-6B
3/8" HOSE BARB
